Assembly Instructions
24

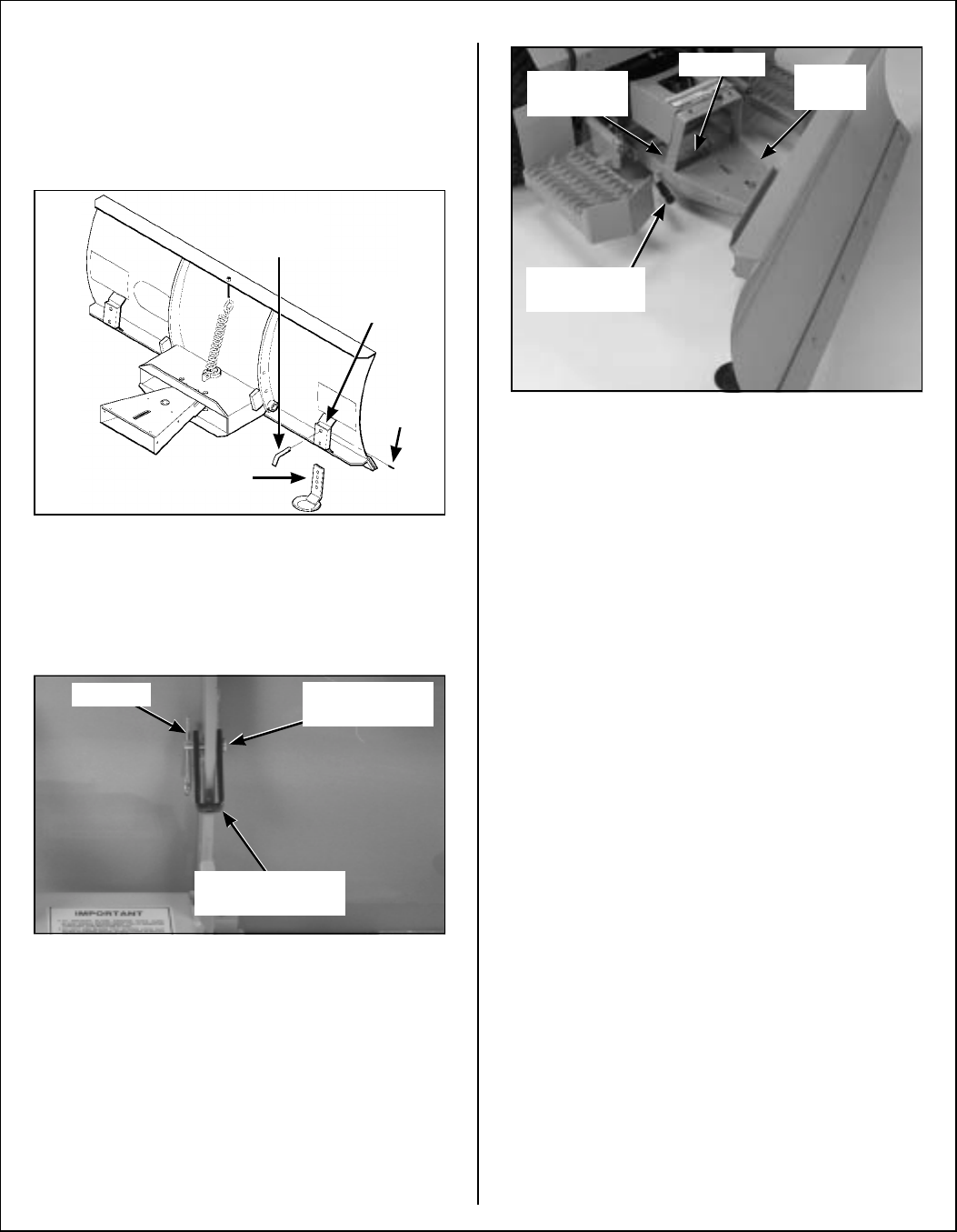

8. Adjust the skid shoes to allow the required
clearance under the blade. Install a skid shoe
pin in each shoe and lock in place with a 4 mm
x 80 mm hairpin. Refer to ADJUSTMENTS of
Dozer Blade Skid Shoes in Maintenance In-
structions.
Install Skid Shoes
9. Install the trip spring lockout bracket in the up-
per hole behind the blade using the lockout pin
and hairpin.
Install Trip Spring Lockout Bracket
Dozer Blade Installation
1. Insert the male quick hitch section of the imple-
ment hitch into the female hitch of the blade.
Lock in place by moving the hitch locking lever
fully forward to the LOCKED position. Secure
the male quick hitch latch with the linchpin. Re-
fer to Hitch Locking Lever in Operating In-
structions.
Attach Blade to Tractor
2. To install the optional tire chains:
a. Remove the tractor wheels.
b. Attach the tire chains to the wheels.
c. Place the wheel spacer plates on the lug
bolts. The wheel spacer plates provide
clearance for the chains between the tires
and the tractor body.
d. Place the wheels back on the tractor.
e. Reinstall and tighten the lug bolts.
ROTARY BROOM
Rotary Boom Installation
1. Insert a parking stand into each stand support
bracket from the underside. Install a 5/32 x 1-1/
4 in. cotter pin in the upper hole of each parking
stand. Set the parking stands in their most ex-
tended position and secure each stand with
a 4 mm x 80 mm hairpin.
2. Check the pivot lock pin and make sure it is in
the innermost position to prevent bulking of
the female hitch member, and to facilitate quick
hitch attachment.
Skid Shoe
Hairpin
Skid Shoe
Pin
Skid Shoe
Bracket
Lockout Pin
in Upper Hole
Trip Spring
Lockout Bracket
Hairpin
Male Quick
Hitch
Linchpin
Female
Hitch
Hitch Locking
Lever
