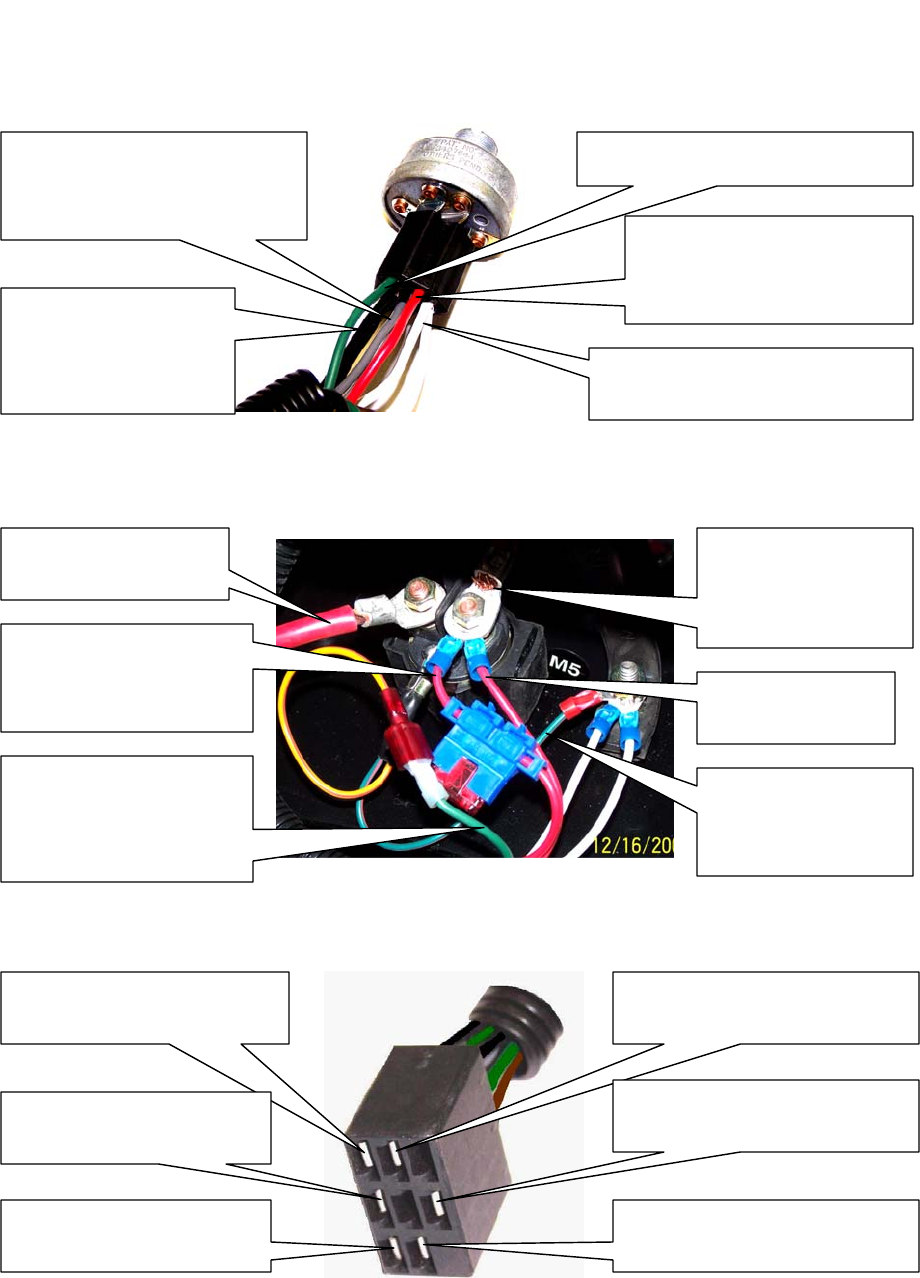

WIRE IDENTIFICATION AT SWITCHES
3623 IGNITION SWITCH
One gray wire goes to the
PTO switch and the other
goes to the hour meter
One black wire goes
to PTO switch and
the other goes to the
engine plug
Green wire goes to PTO switch
Red wire goes to fuse and
on to battery positive at
the solenoid terminal.
One white wire goes to clutch
and other one goes to ground.
STARTER SOLENOID
Heavy red cable
goes to the starter.
Red wire goes through
fuse and onto ignition
switch.
Green wire goes to
neutral switches and
on to the ignition
switch.
Heavy red cable
goes to the
positive post of the
battery.
Red wire goes to
engine plug.
Green wire with
orange stripe goes
to the ground.
PTO SWITCH PLUG
Black wire goes to the
ignition switch.
Green wire goes to the
ignition switch.
Gray wire goes to the
ignition switch.
Black wire goes to the seat
switch.
Green wire goes to the
neutral switches.
Brown wire goes to the
clutch.
