Swisher T11044, T11544, T10544BSPB, T12544, T1144HSP Lawn Mower User Manual



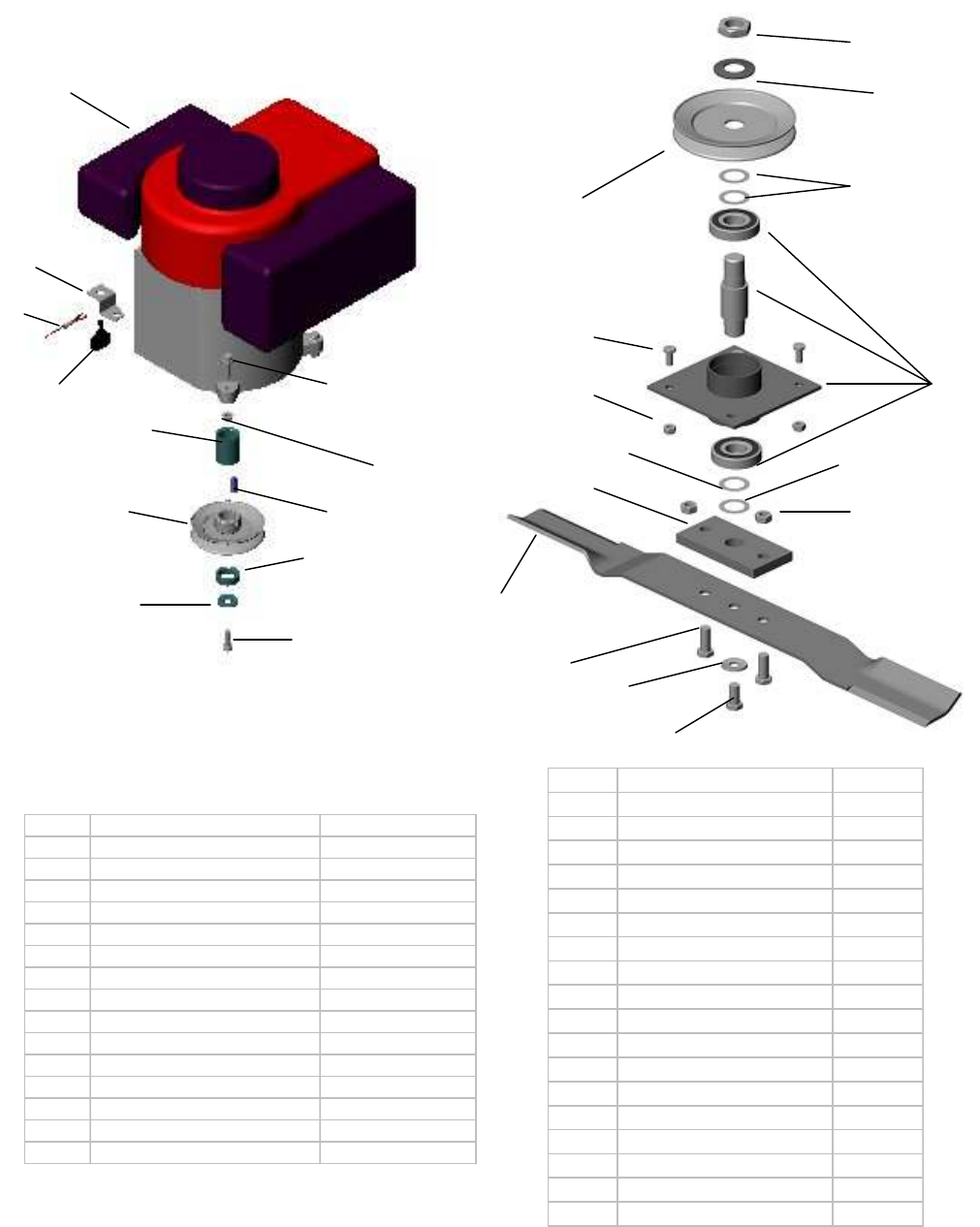

FIGURE FIVE
ENGINE SET-UP
FIGURE SIX
55
54
52
53
58
57
56
61
60
55
62
63
64
59
BLADE SET-UP
ITEM # DESCRIPTION PART #
40 ENGINE NOT AVAILABLE
41 5/16 BOLT NB253
42 5/16 NUT NB170
43 TOGGLE BRACKET 4483Z
44 SAFETY TETHER 6736
45 TOGGLE SWITCH 685SP
46 UPPER ENG. SPACER BB105S
47 1/4 X 1 KEY STOCK 9031
48 ENG. PULLEY BB105
49 LOWER ENG. SPACER BB105SL
50 BELLEVILLE WASHER 699
51 7/16 BOLT NB452N
OIL DRAIN VALVE & CAP AS122/AS123
MODULE & SCREW MOD1/NB137
ITEM # DESCRIPTION PART #
52 3/4 NUT NB175
53 UPPER BELLEVILLE AS155
54 BLADE PULLEY B4104
55 THIN WASHER NB179
56 BLADE DRIVER 9018
BEARING B98
4.25" SHAFT 9076
BEARING HOUSING B99ECTK
57 1/4 BOLT NB250
58 1/4 NUT NB180
59 22" BLADE 9005
Two Blade Set 9036
60 BLADE MOUNT PLATE 9008
61 3/8 NUT NB216
62 3/8 BOLT NB238N
63 LOWER BELLEVILLE NB607
64 3/8 BOLT NB238
65A WASHER B98W
15
40
43
44
45
41
42
46
4748
49
50
51
65A
