Swisher T11044, T11544, T10544BSPB, T12544, T1144HSP Lawn Mower User Manual



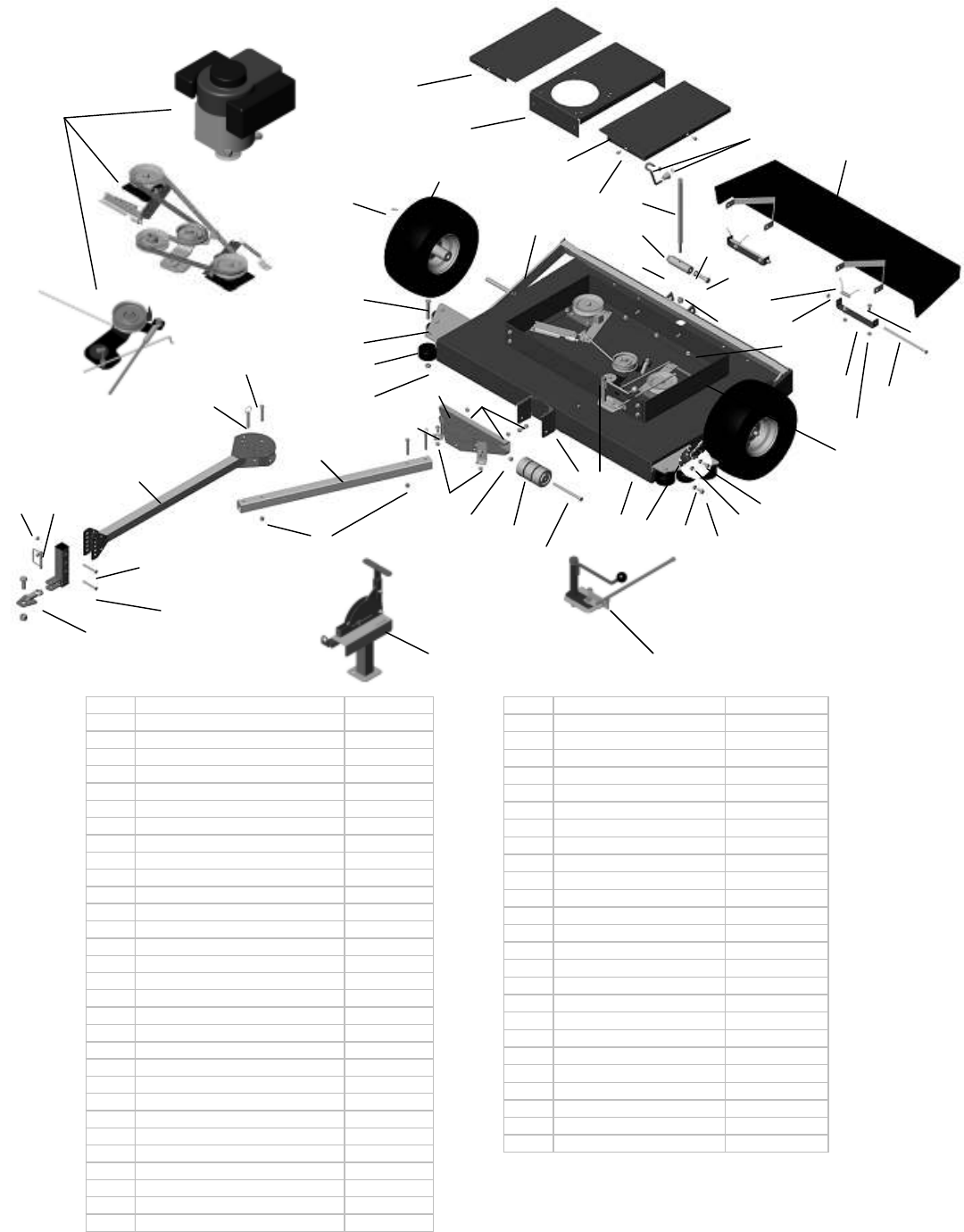

FIGURE FOUR
SINGLE POINT HEIGHT ADJUST
SEE DETAILS
T-HANDLE OPTION SEE DETAIL
1
1
42
10
9
8
7
6
5
16
15
14
13
12
11
22
21
20
19
18
17
39
38
26
25
24
23
32
31
30
29
28
27
36
35
34
33
* = USE PAINT CODE:
TC=RED,G=GREEN;S=SILVER,TK=BLACK EX: 4524RTC; 4525G
37
ITEM # DESCRIPTION PART #
1 BELT COVER 10599*
2 MOTOR BASE 4517*
3 1/4 BOLT NB114
4 HEIGHT ADJUSTER
KNOB H7K
5/16 PAL NUT NB276
5/16 PUSH NUT NB117
ARM ES214
4A HEIGHT ADJUST ROD 4006
5 PIVOT BLOCK 4007TK
5A FLANGE BEARING 4005
6 1/2 BUSHING NB177
7 1/2 BOLT NB617
7A BEARING CAP 4036TK
8 DISCHARGE CHUTE 10598TK
9 TORSION SPRING 9100
10 5/16 NUT NB181
11 CHUTE MOUNT 6030TK
12 5/16 BOLT NB136
13 5/16 BOLT NB596
14 COTTER PIN NB126
15 TIRE/WHEEL F44157LV
16 AXLE ASSEMBLY 10596TK
17A 1/2 BOLT NB588
17B 1/2 NUT NB118
18 RIGHT ROLLER BRACKET 4016TK
19 ANTI-SCALP ROLLER 1/2" AS003
20 1/2 NUT NB121
21 5/16 BOLT NB596
22 HITCH 4525TK
ITEM # DESCRIPTION PART #
23 5/16 NUT NB170
23A 5/16 BOLT NB596
24 3/8 NUT NB182
25 ANTI-SCALP ROLLER 3/8" AS001
26 3/8 BOLT NB575
27 HITCH TUBE 4583*
28 3/8 BOLT NB221
29 3/8 LOCK PIN NB520
30 FAN HITCH 4582*
31 3/8 NUT NB182
32 5/16 NUT NB181
33 SAFETY HITCH PIN H11
34 5/16 BOLT NB138
35 L HITCH H1TK
36 SWIVEL HITCH H10TK
BOLT/NUT NB145Z/NB561
37 ROLLER BRACKET 10634TK
38 DECK WELDMENT 10586TC
39 LEFT ROLLER BRACKET 4015TK
140 OILITE BEARING 21008
141 1/2 USS WASHER NB555
142 1/2-13 BOLT NB617
143 1/2-13 NYLOK NUT NB281
144 BACK SKIRT PLATE 4519*
145 FRONT SKIRT PLATE 4518*
23
23
4A3
5A
7A
23A
23
14
140, 141, 142
143
13, 23
145
144
