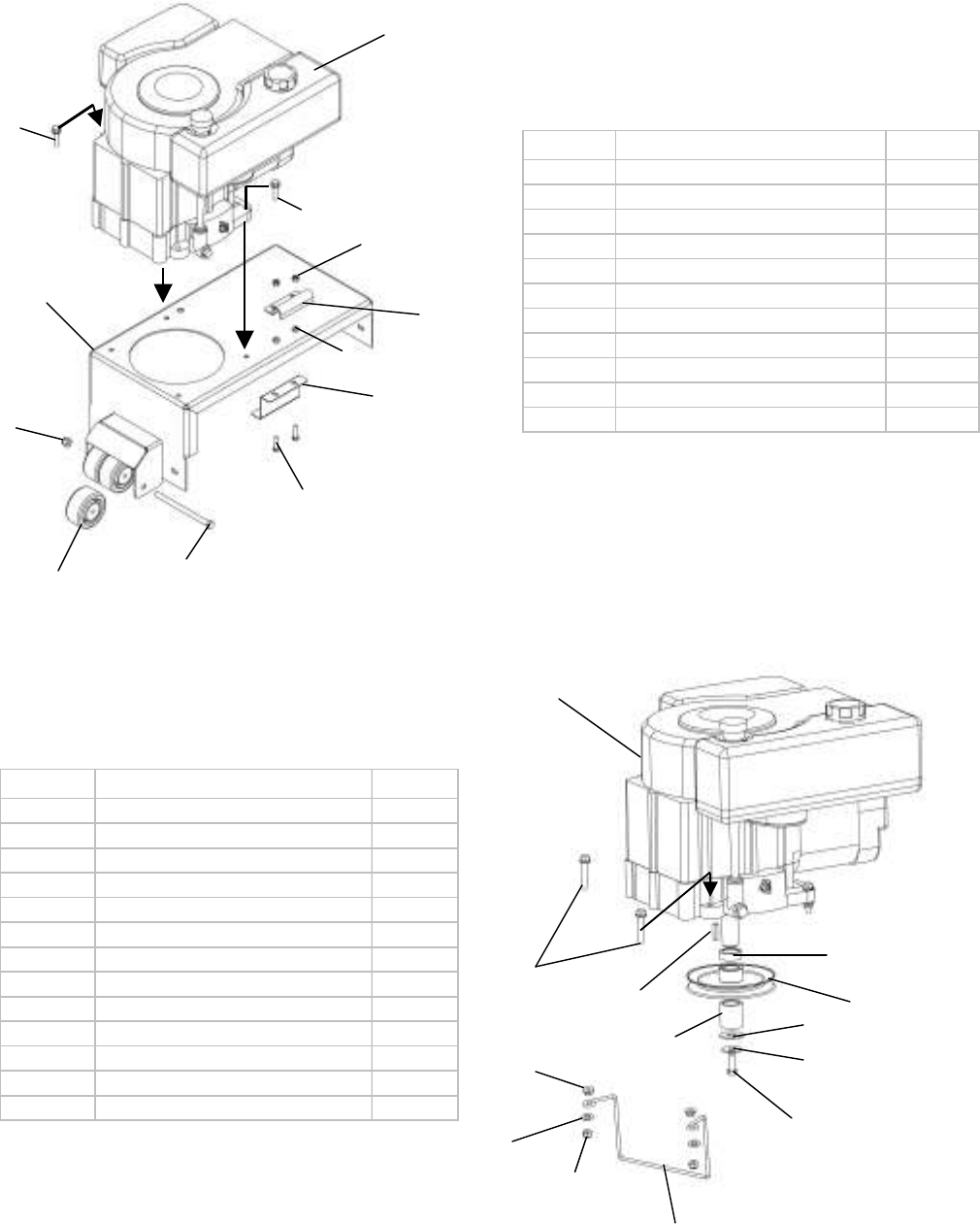

MOTOR BASE ASSEMBLY
ENGINE SET-UP
FIGURE 4
Item No. Description Part #
13 11- HP B&S Engine N/A
14 3/8-24 X 1 Engine Bolt Locktite NB-452N
15 Washer Belleville 699
16 1/4 X 1 Key Stock 9031
17 Engine Pulley- 5.5" 688
18 Engine Pulley Spacer Short 689S
19 Engine Pulley Spacer Long 689L
20 5/16-18 X 1-3/4 BOLT NB515
21 5/16 SAE Washer NB275
22 5/16-18 Flge. Nut NB170
23 Belt Guide 6000
24 Washer TR150W
25 5/16-18 Nyloc Nut NB181
Figure 3
Item No. Description Part #
1 Motor Base 5102TK
2 Heat Shield 5094TK
3 Belt Guard 5097TK
4 Anti-Scalp Roller AS-001
5 3/8-16 X 5 1/2 GR5 ZP NB-575
6 3/8-16 Nyloc Nut NB-182
7 1/4-20 HX NUT NB-139
8 1/4-20 X 1 NB-102
9 1/4-20 Hx Nut ZP NB-134
10 5/16-18 X 2 1/2 HCC GR5 ZP NB-253
11 5/16-18 Serrated Flange Nut NB-170
See Detail
14
1
2
3
4
5
6
10
10
7
9
8
13
14
15
16
17
18
19
20
21
22
23
24
25
