Blade Driver Assy.
9058- 5.75” (Center Shaft)
9018- 4.25” (Outer Shafts)
10
7
11
8
4
10
15
16
5
6
3
9
13
12

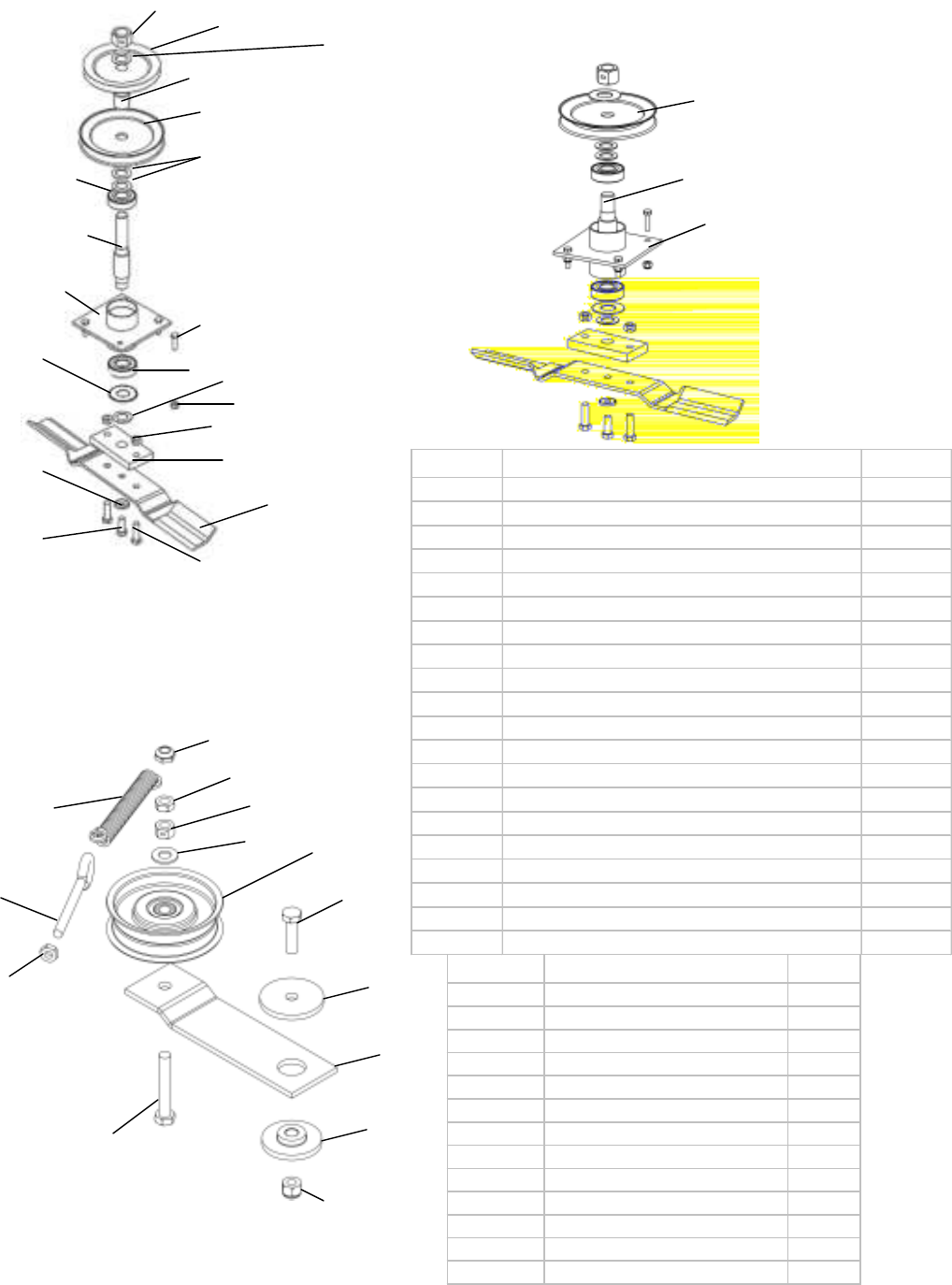

Figure 6
BLADE DRIVER
SET-UP
13
7
Outer Blade
Driver
Configuration
Center Blade
Driver
Configuration
Item No. Description Part #
1 Center Shaft 9054
2 Blade Bearing B98
3 Bearing Housing 9057TK
4 Pulley Spacer 6065PM
5 Blade Mount Plate 9008
6 17 1/2" Blade 5059
7 Blade Pulley- 5.5" 6114
8 Blade Pulley- 5" 3785
9 SP Washer Bellvl. PLN .413 X .945 X .118 NB-607
10 3/4 ID X 1 1/4 OD 18 GA Washer NB-179
11 3/4-16 Jam Nut NB-175
12 3/8-24 X 1 Bolt NB-238
13 3/8-24 X 1 Engine Bolt Locktite NB-238N
14 1/4-20 X 3/4 HCC GR5 ZP NB-250
15 1/4-20 Nylok Nut NB-180
16 3/8-16 2-Way Lock Nut NB-216
17 Housing Blade Bearing Short B99EC
18 L&R Shaft 9076
19 BELLEVILLE WASHER AS155
20 Washer B98W
Item No. Description Part #
21 Idler Bushing 6037
22 Idler Tension Spring TZ2S
23 5/16-18 X 3 1/2 Eye Bolt NB315
24 Idler Pulley OD-3.25", ID-3/8" B527
25 3/8-16 X 1 1/4 GR5 ZP NB618
26 3/8-16 Nyloc Nut NB280
27 3/8-16 X 2 1/4 HTC GR5 ZP NB693
28 5/16-18 Serrated Flange Nut NB170
29 3/8 SAE Washer NB272
30 3/8-16 Nylok Nut Jam NB207
31 3/8-16 Nut NB174
32 Idler Arm 6041TK
33 Washer 6040
17
18
19
20
29
24
25
33
32
21
27
22
23
31
28
26
30
26
