Assembly Section 3-3
ASSEMBLY
FM84 08/01
© 2004 Alamo Group Inc.
ASSEMBLY
A-FRAME ATTACHMENT (cont'd.)

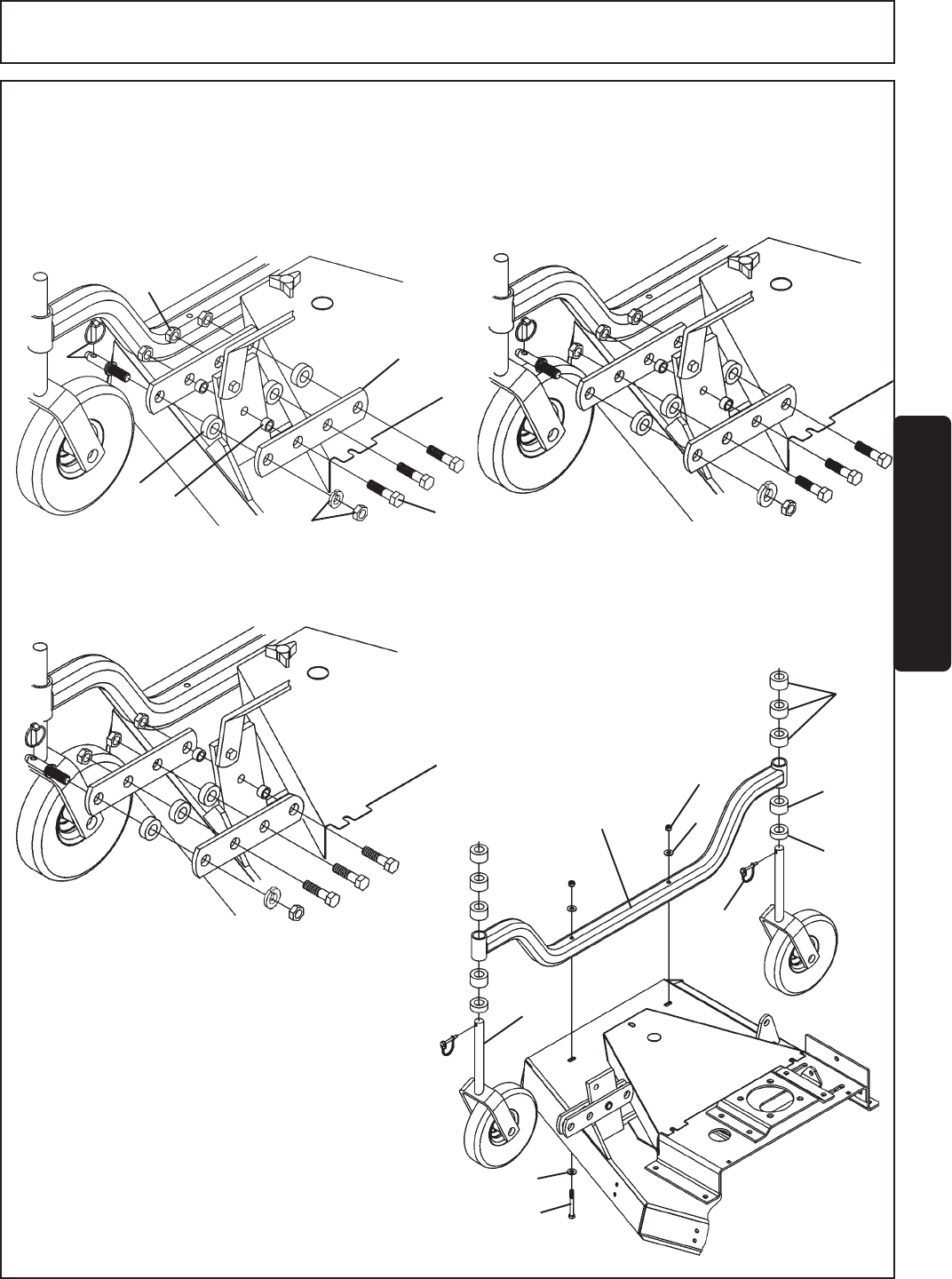

Install floating hitch pins to main frame using either the standard or extended hitch postions. See Figures 2 - 4
below for correct installation. Install hitch flats (1) to deck hitch using bolts (4) and locknuts (5), inserting bushings
(2 & 3) in proper locations as shown in Figure 2. The hitch pin (6) is always to be located on end nearest to the
tractor. There are two extended positions. To install in extended position move flats (1) forward and place bushings
in the proper locations shown in Figures 3 & 4.
STANDARD POSITION
1
ST
EXTENDED POSITION
FIGURE 3
FIGURE 4
CASTER WHEEL ATTACHMENTS
Attach the right and left Axle Arm Weldment (1) to the
deck with 3/8" bolts (2) flatwasher (1-1/2OD x 3/16
thick) (3), and 3/8 locknuts (4). Install a one inch
spacer (5) and a 1/2 inch spacer (6) on each fork and
wheel assembly shaft (7). Insert fork shaft into axle
arm weldment. Install three additional one inch
spacers (5) on each axle shaft and retain using
snapper pin (8). FIGURE 4.
4
3
8
5
1
8
FIGURE 2
2
ND
EXTENDED POSITION
FIGURE 4
2
1
4
3
5
5
6
8
2
3
7
