TOOLS REQUIRED: 7/16”, 1/2”, 9/16", and 5/8” sockets and
ratchets, block(s) of wood (minimum of 6” tall).
Refer to the parts list on page 9.

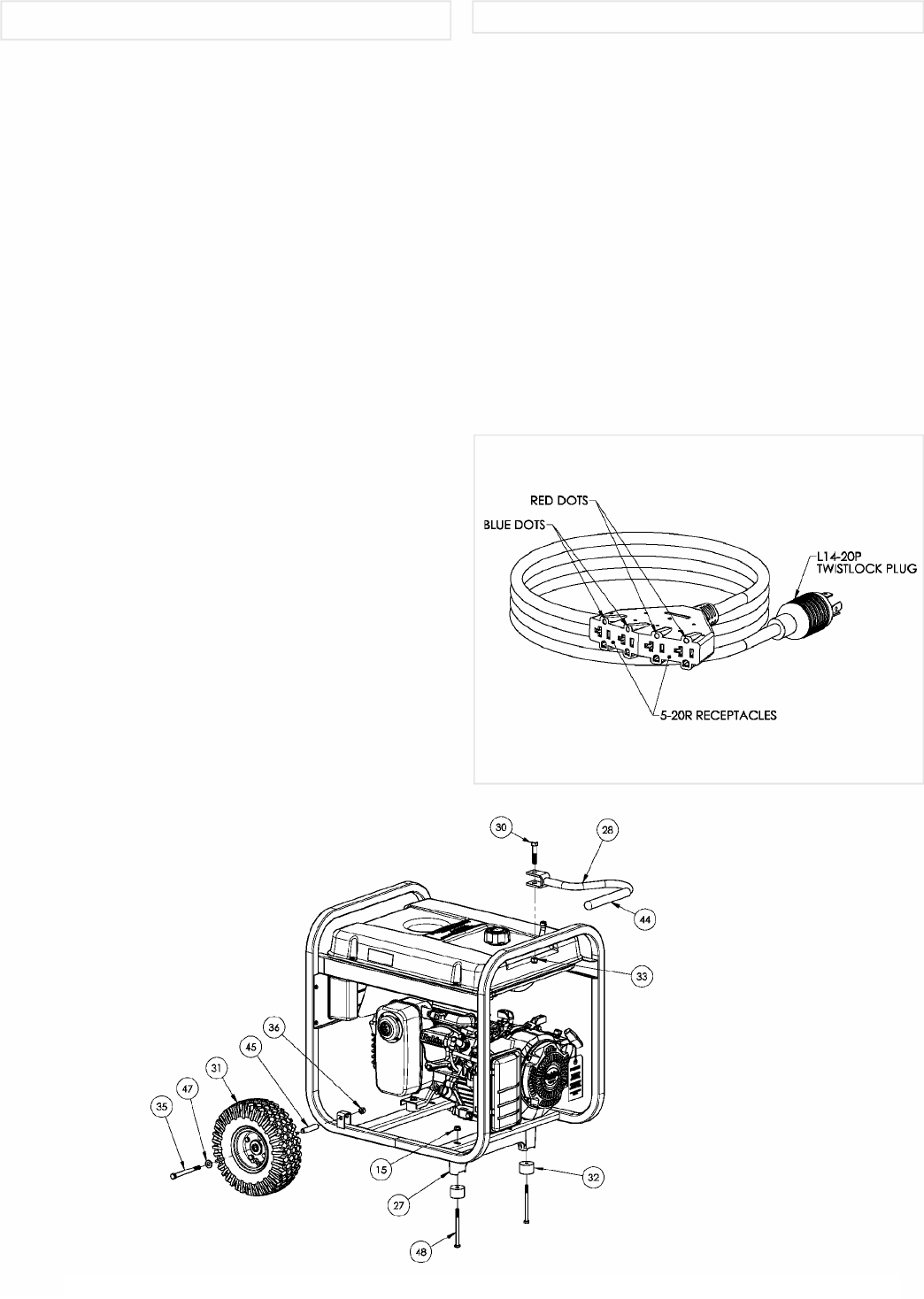

WHEEL INSTALLATION
1.Block up end of generator opposite the fuel tank cap to
install wheel kit.
2.Insert wheel spacer (item 45) into the center of the wheel
(item 31).
3.Slide 3/8 x 4.25” bolt (item 35) and 3/8 washer (item 47)
through the wheel (item 31), then through the wheel
bracket on the carrier, with the offset side of the wheel hub
against the wheel bracket.
4.Thread 3/8 nyloc nut (item 36) onto the bolt and tighten to
securely clamp the wheel assembly to the tubing.
5.Repeat above instructions for the remaining wheel.
FOOT INSTALLATION
1.Blocking up the engine side of the generator, place the
foot bracket (item 27) under the carrier channel. Thread a
5/16-18 x 4” bolt (item 48) with a rubber foot (item 32)
through the mounting holes and thread a 5/16 flange nut
(item 15) to the bolt to secure the foot bracket to the carrier.
Caution: Do not over tighten so that the rubber foot
material collapses.
HANDLE INSTALLATION
1.Place handle (item 28) over carrier tubing on same end as
feet, centering handle on the carrier.
2.Slide 7/16 x 2” bolt (item 30) through handle as shown in
diagram and secure with 7/16” nyloc nut (item 33). Tighten
until handle is securely clamped to the carrier tubing.
3.Apply aerosol hairspray or similar adhesive to the handle
(item 28), and then slide the handle grip (item 44) onto the
handle. The aerosol hairspray will allow for easier
assembly and will adhere the grip to the handle.
NOTE: When using a generator cover with this portability
kit, the handle must be moved to the downward position.
Your generator is supplied with a 25 foot 12 GA SJTW
4-conductor 105ºC power cord set. This cord is equipped with
an L14-20P twistlock Plug, on one end, which will plug directly
into the mating twistlock receptacle on the control panel of your
generator. The opposite end comes equipped with a special 4
circuit connector comprised of four 5-20R receptacles. These
may be used to power individual loads. Make sure the loads
do not exceed the 20 amp rating of the Power Cord Set.
Circuit breaker protection is provided for on the control panel of
your generator.
You will notice that the 4-circuit connector is color coded
with red and blue dots. When several loads are powered at the
same time, it is best to keep equal loads supplied to each
separately colored half, if possible. The red half and the blue
half of the connector are each capable of sustaining 20 amps of
current provided your generator is capable of supplying 4800
watts of power. Check nameplate ratings for total wattage
capability of the generator.
