Powermate PM400911 Portable Generator User Manual



200-2341 39
P
P
A
A
R
R
T
T
S
S
D
D
R
R
A
A
W
W
I
I
N
N
G
G
-
-
G
G
E
E
N
N
E
E
R
R
A
A
T
T
O
O
R
R
P
P
A
A
R
R
T
T
S
S
L
L
I
I
S
S
T
T

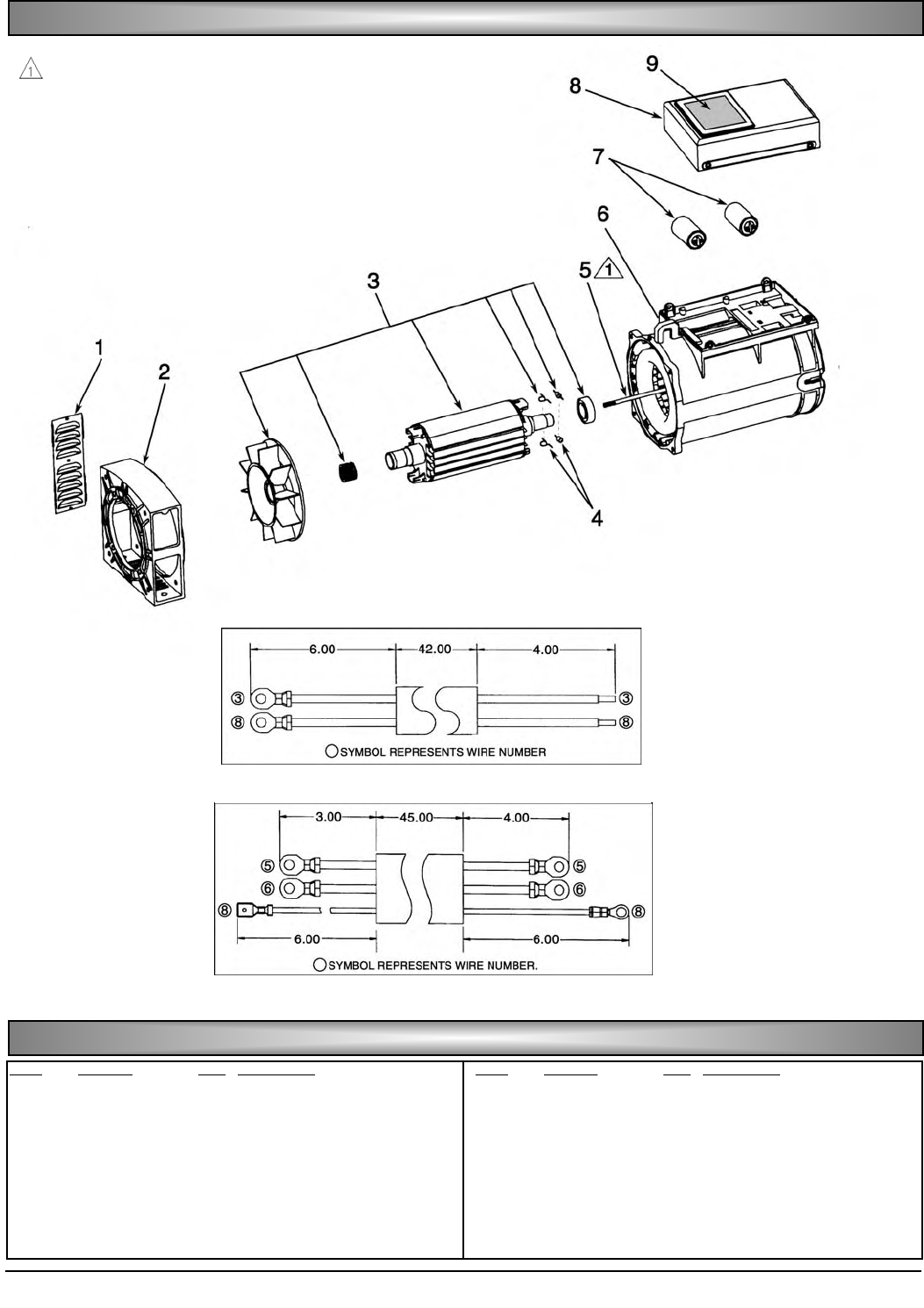

Item Part No Qty Description
1 0056629 1 Discharge louvered cover
2 0056623 1 Engine adapter
3 160-0311 1 Rotor assembly
4 100-0003 2 Diode/varistor assembly
5 059-0348 1 Rotor bolt
6 160-0312 1 Stator assembly
7 166-0133 2 Capacitor, 40F, 500V
8 077-0168 1 Terminal box cover
9 098-2827 1 Warning label
Item Part No Qty Description
10 026-0515 1 Wiring harness, generator
neutral
11 026-0514 1 Wiring harness, generator power
-- 160-0309 1 Complete generator assembly
Torque to 15 lbs-ft
ITEM 11
ITEM 10
