Operation
A. First Cut
1. Set pivot to 45˚ on right (Fig. 12).
2. Place moulding against fence finished side up and
rabbet facing operator.
3. Slide moulding under saw blade far enough so full
45˚ cut can be made.
4. Adjust clamp foot onto moulding and tighten knob
(Fig. 13).
5. Cut moulding (Fig. 14).
• By making long full strokes accuracy is improved
and cutting is easier.
• Always cut long pieces first. If mistake is made,
shorter pieces can be salvaged.
6. Deburr bottom cut edge using sandpaper, sander
or file.
A. Second Cut
1. Set pivot to 45˚ on left (Fig. 15).
2. Slide cut end of moulding to desired dimension and
align rabbet corner on scale dimension (Fig. 16).
3. Set stop against moulding.
4. Clamp both sides of moulding if possible.
5. Cut moulding.

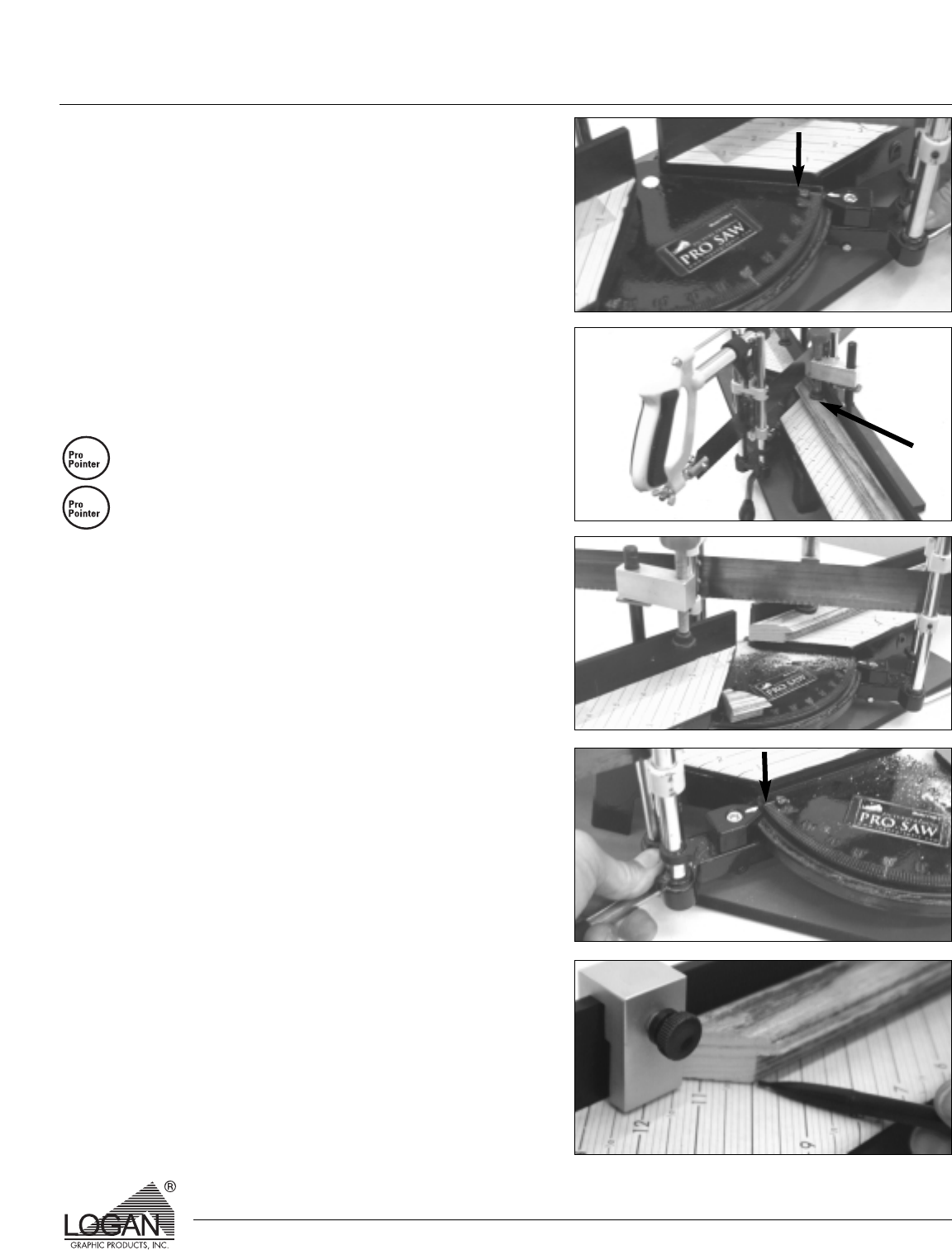

Fig. 12
Fig. 13
Fig. 14
Fig. 15
Fig. 16
✔
✔
