Instruction Manual
Model F100-4SAW FENCE KIT
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 Toll Free 1 800 331 6232 www.logangraphic.com

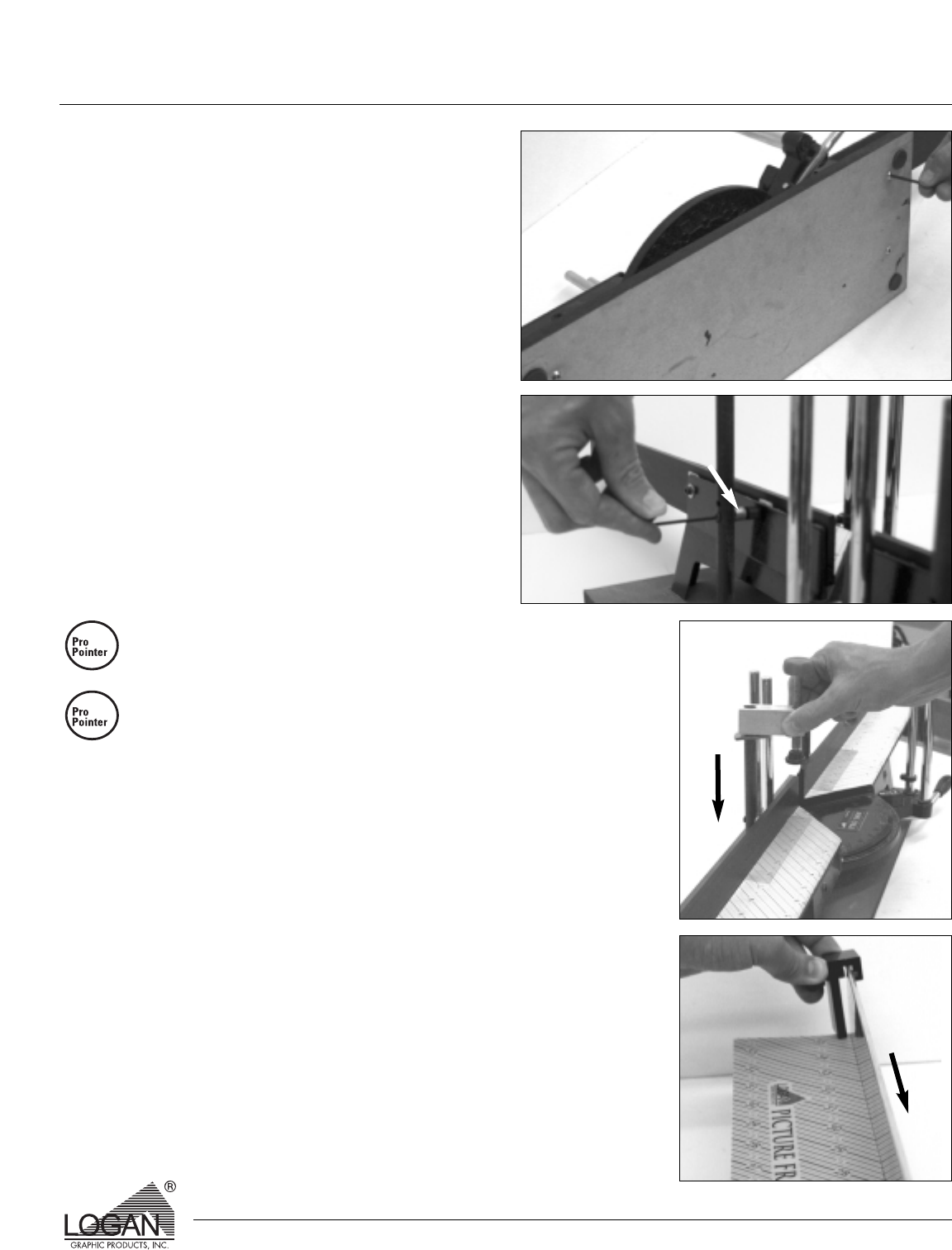

Assembly Procedure (continued)
4. Base
a. Turn saw base over and install base board.
Be sure holes for rods are located toward
back of saw base (Fig. 8).
5. Clamp rods
a. With rounded ends facing up set rod into
hole in base board.
b. Align hole in rod with hole in back of saw
base.
c. Install screw thru rod, thru rod spacer and
into saw base. (Fig. 9).
d. Slide clamp onto rod (Fig. 10).
6. Stop
a. Slide moulding stop onto fence (Fig. 11).
b. Tighten screw to lock.
7. Secure Base
a. Bolt base to work surface to eliminate
slipping and make cutting easier.
Use 1/4” (6mm) drill for pilot hole.
b. Use two 4” deep throat C-clamps.
Available at local hardware store.
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Spacer
✔
✔
