Signa™ 5 Plus Whirlpool Bath
Model: BP81, EP30
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
BP81 Signa™ 5 Whirlpool Bath
Right Hand
• Center Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
TheraPro™ Jet Rings Kit: #D095
AccuPro™ Jet Rings Kit (2Req’d): #P556
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
Technical Specifi cations
Dimensions
60” L x 42” W x 22” H
(1524 mm) L x (1067 mm) W x (559 mm) H
Drain/Overfl ow
A: 17-1/2” (445 mm) B: 12-1/2” (318 mm)
Cutout
58” x 40”
Total Weight
708 lb (321 kg) / 40 lb/sq. ft. (197 kg/m
2
)
Operating Gallonage
42 U.S. Gal. (159 Liters)
Max. 82 U.S. Gal. (310 Liters)
Product Weight
108 lb (49 kg)
Skirt Mounting
Optional, U-Frame
Electrical Specifi cations
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Standard)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
60"
12"
42"
5"
4-1/4"
13" x 5"
30"
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
END VIEW
H
W
SIDE VIEW
L
2"
#FS15 06/07
DRAIN/OVERFLOW
A
B

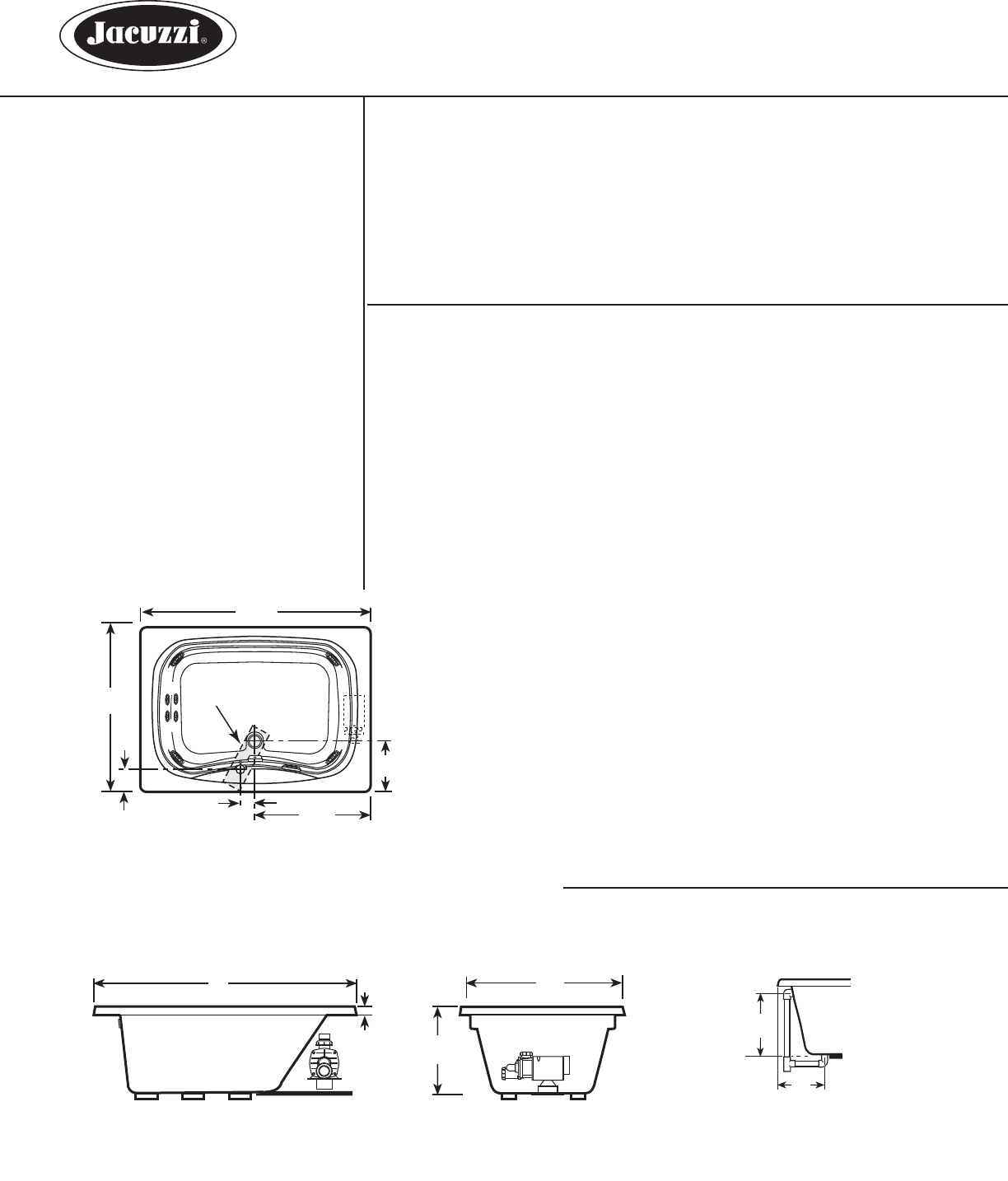

Product Shown: Signa™ 5 Plus Whirlpool Bath Right Hand Model: BP81
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
Minimum Service Access dimensions given.
