WHIRLPOOL BATH
Technical Specifications
DIMENSIONS
62” L x 43” W x 19” H
(1575 mm) L x (1092 mm) W x (483 mm) H
DRAIN/OVERFLOW
A: 14-3/4” (375 mm) B: 9-1/2” (241 mm)
CUTOUT
Template Provided Part Number: P186000
TOTAL WEIGHT
9330: 746 lb (338 kg) / 40 lb/sq. ft. (197 kg/m
2
)
9360: 701 lb (318 kg) / 38 lb/sq. ft. (185 kg/m
2
)
OPERATING GALLONAGE
48 U.S. Gal. (182 Liters)
PRODUCT WEIGHT
9330: 96 lb (44 kg)
9360: 51 lb (23 kg)
SKIRT MOUNTING
Not Available
ELECTRICAL SPECIFICATIONS — MODEL 9330 ONLY
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
HEATER (OPTIONAL) — MODEL 9330 ONLY
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
© 2007 Jacuzzi Whirlpool Bath • 14525 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
INSTALLATION NOTES
Refer to installation instructions included with xture before
beginning installation. Please conrm product availability and
specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#FS10-000 05/08
9330
Riva 5 Whirlpool Bath, Left Hand
9360
Riva 5 Bath
• Left Hand Drain Location
• Accessories / Hardware:
Trim Kit: 4 HTC Jet Rings #D095
Rotary Drain Kit, 26” Cable #8730
Trim Kit: 2 BMH Jet Rings #J869
Trip-Lever Drain Kit: #X559
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze.
Riva
®
5
SOAKER BATH
Electrical Components and Electrical Specifications do not apply
to non-jetted baths.

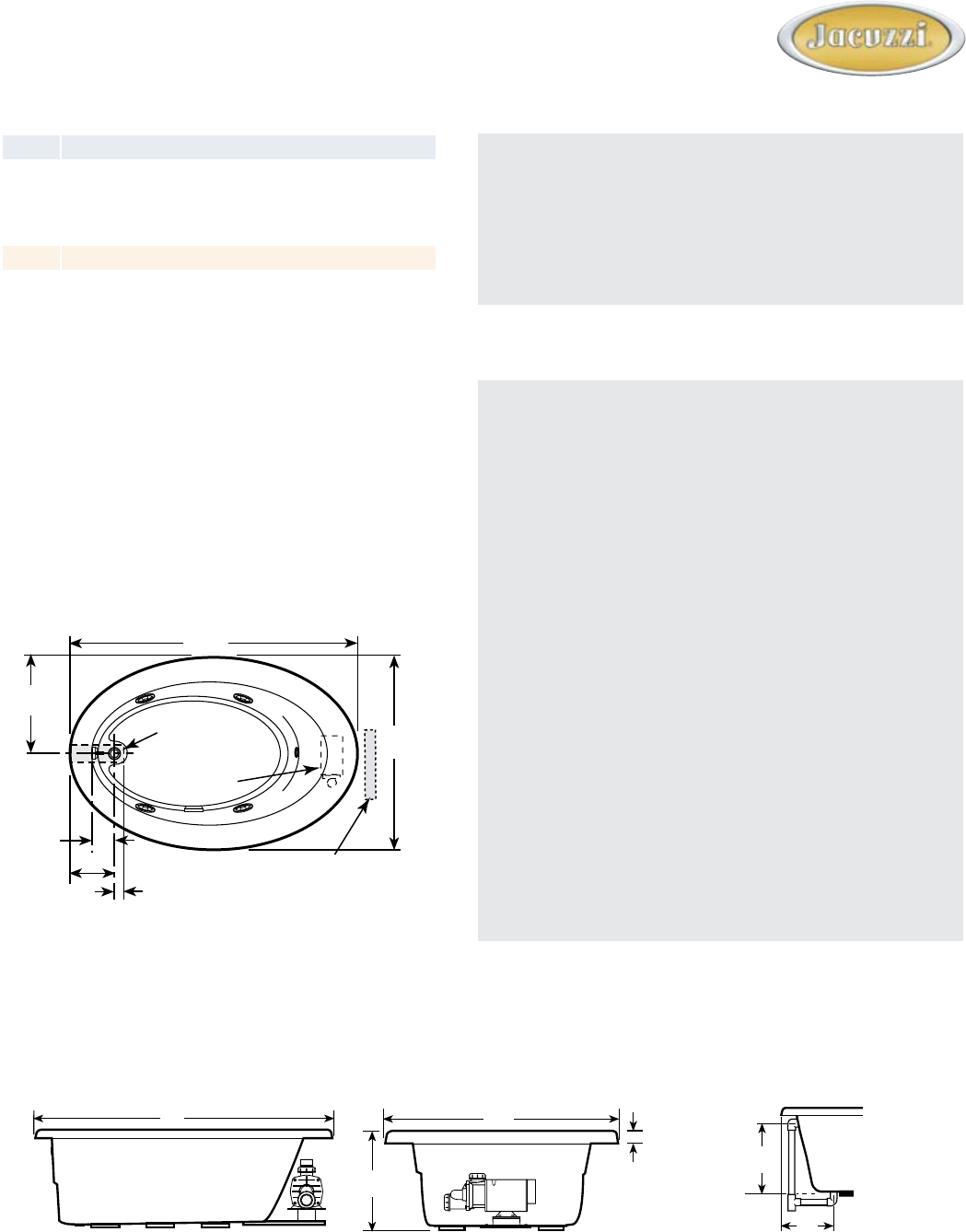

62"
21-1/2"
2"
43"
12" x 4"
9-1/2"
5"
Motor
12" H x 18" L
Service Access
SIDE VIEW
W
H
2''
L
END VIEW
DRAIN/OVERFLOW
A
B
Product Shown: Riva™ 5 Whirlpool Bath
Left Hand Shown Model: 9330
* Measurements inside unit represent cutout in
floor to allow for drain/overflow.
Minimum Service Access dimensions given.
