Assembly

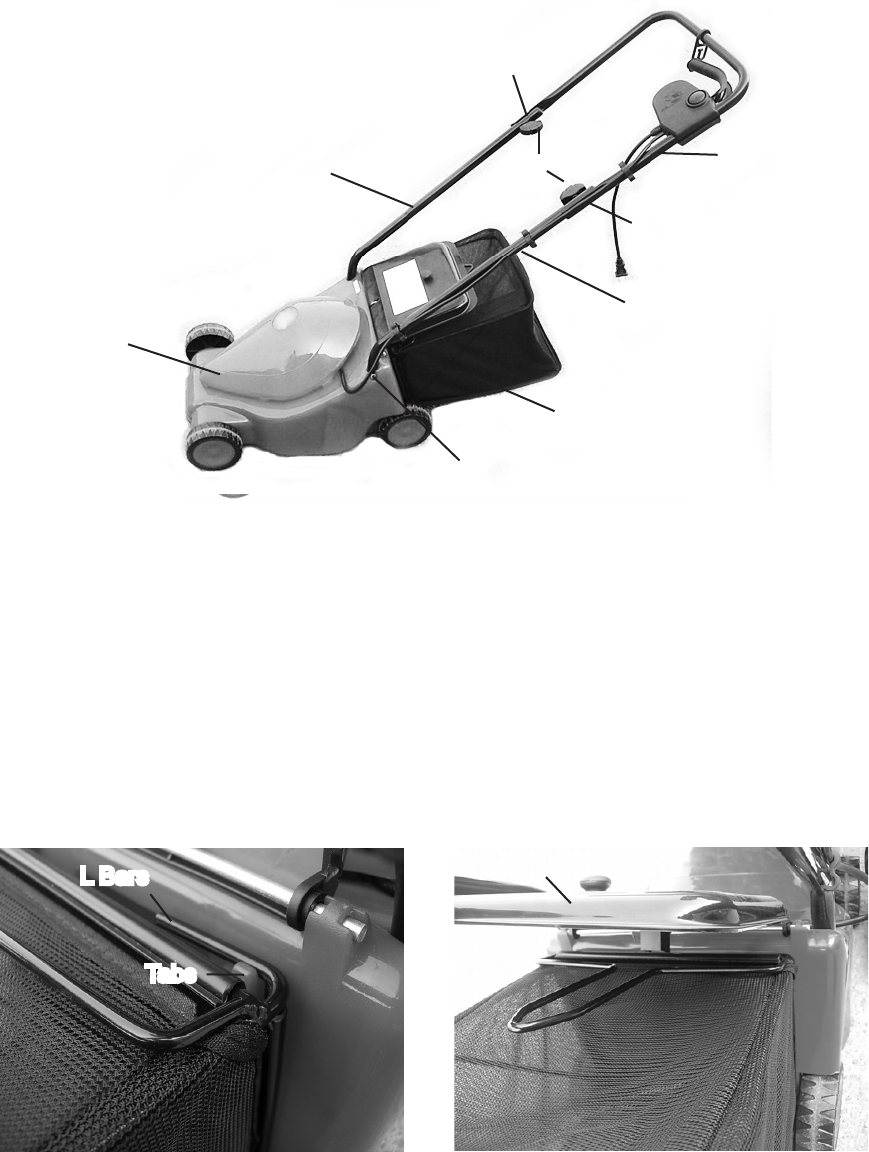

1. Insert the Lower Handle (31B) into the hole on the right side of the Cutter Housing
(13), and the Lower Handle (31A) into the hole on the left side. Tighten both Screws
(23) that hold the Lower Handles in place. See photo above.
2. Attach the Upper Handle (37) to the Lower Handles (31 A and B) using Knob (34) and
Screw (35). Tighten both Knobs securely.
3. To attach the Grass Basket (19), lift the Discharge Cover (30) and place the two “L”
Bars on the Grass Basket (19) over the tabs on the Cutter Housing (13). Then, release
the Discharge Cover (30). See photos above and below.
Operation
Set Cutting Height
Caution: Always disconnect the power cord from the lawnmower before making adjust-
ments.
Cutter Housing (13)
Lower Handle (31B)
Cable Clamps (39)
and Cord Clamp (9)
not shown
Upper Handle (37)
Grass Basket (19)
and Screws (20)
Knob (34)
Lower Handle (31A)
L Bars
Tabs
Discharge Cover (30)
Screws (23)
Screws (35)
Screws (35)
