Page 5For technical questions, please call 1-800-444-3353.SKU 03551 03552
Unwrap the Handle Assembly and discard 3.
the protective padding.
Handle Assembly
Body (#1)

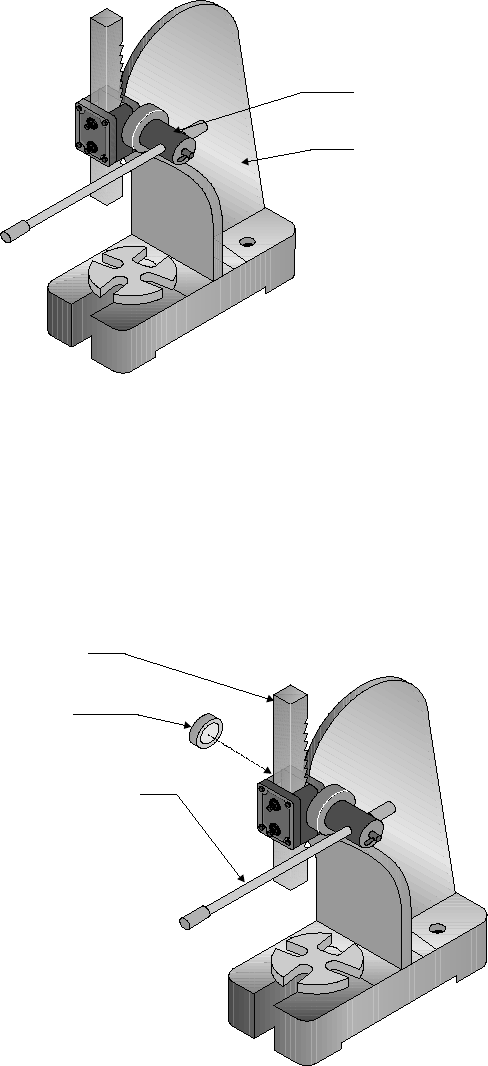

Figure 4 -- Installing the Handle Assembly
4. Insert the GEAR (#14) section of the Handle
Assembly into the side of the Arbor Press as
shown in Figure 4. The GEAR will only t
into the side shown in the Figure.
You may have to rotate the Handle Assembly 5.
slightly to get the teeth of the GEAR to mesh
with the teeth of the RACK.
Rack (#10)
Ring (#5)
Handle Assembly
Figure 5 -- Attaching the Ring
6. Slide the RING (#5) onto the protruding end
of the GEAR as shown in Figure 5. Tighten
the SCREW (#4) on the RING to secure the
GEAR and Handle Assembly.
Your Arbor Press is ready for use.7.
