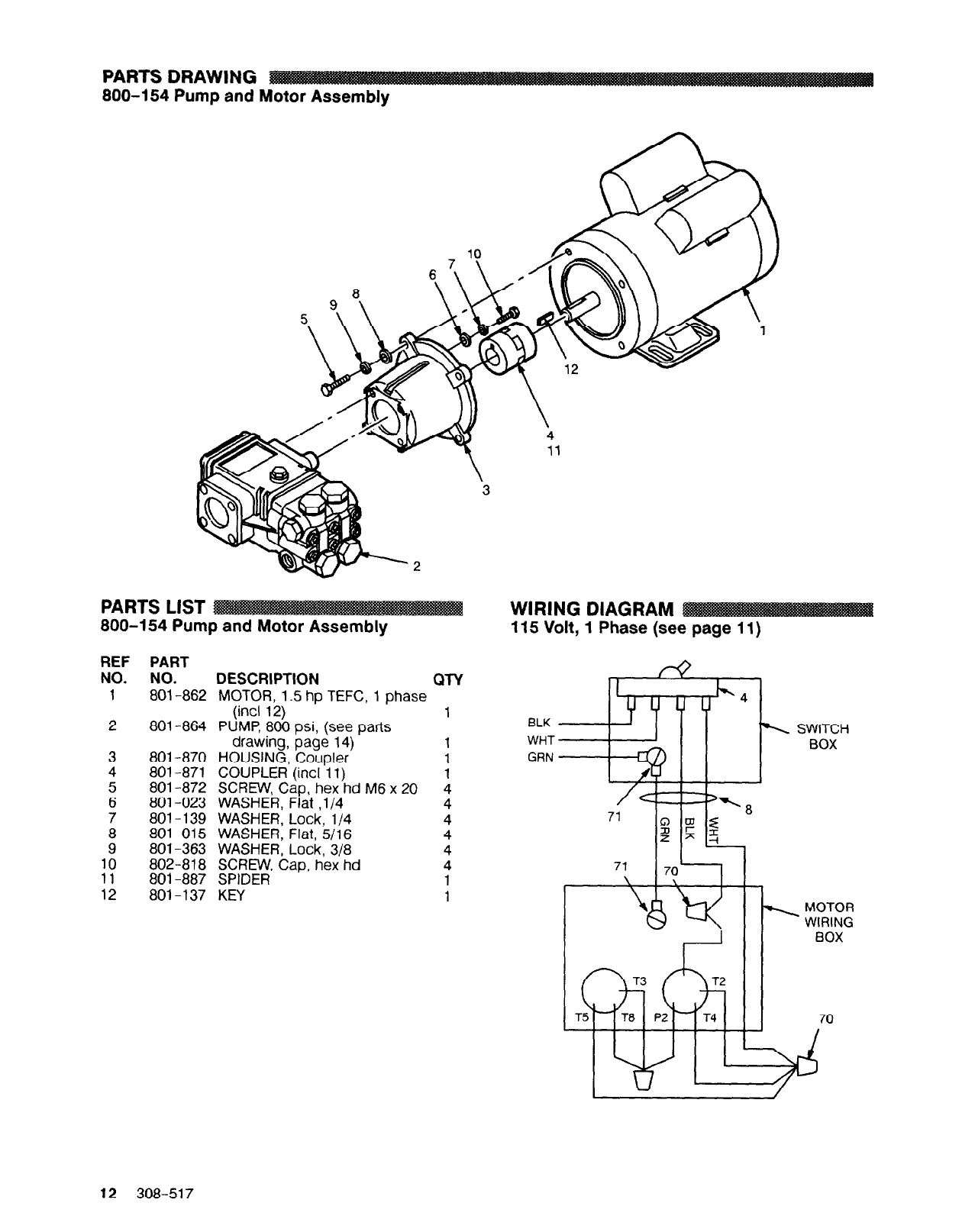

PARTS DRAWING
800-l 54 Pump and Motor Assembly
PARTS LIST
800-154 Pump and Motor Assembly
REF
NO.
1
2
PART
NO.
DESCRIPTION QTY
801-862 MOTOR, 1.5 hp TEFC, 1 phase
(incl 12)
1
801-864 PUMP, 800 psi, (see parts
1
801-870
drawing, page 14)
HOUSING, Coupler
1
801-871 COUPLER (incl 11)
801-872 SCREW, Cap, hex hd M6 x 20
:
801-023 WASHER, Flat ,1/4
4
801-139 WASHER, Lock, l/4
4
801-015 WASHER, Flat, 5/l 6
4
801-363 WASHER, Lock, 3/8
4
802-818 SCREW, Cap, hex hd
4
801-887 SPIDER
1
801-l 37 KEY
1
WIRING DIAGRAM WIRING DIAGRAM
115 Volt, 1 Phase (se
115 Volt, 1 Phase (see page
11)
BLK BLK
SWITCH SWITCH
WHT WHT
BOX
BOX
GRN GRN
MOTOR
WIRING
BOX
12 308-517
