- 8 -

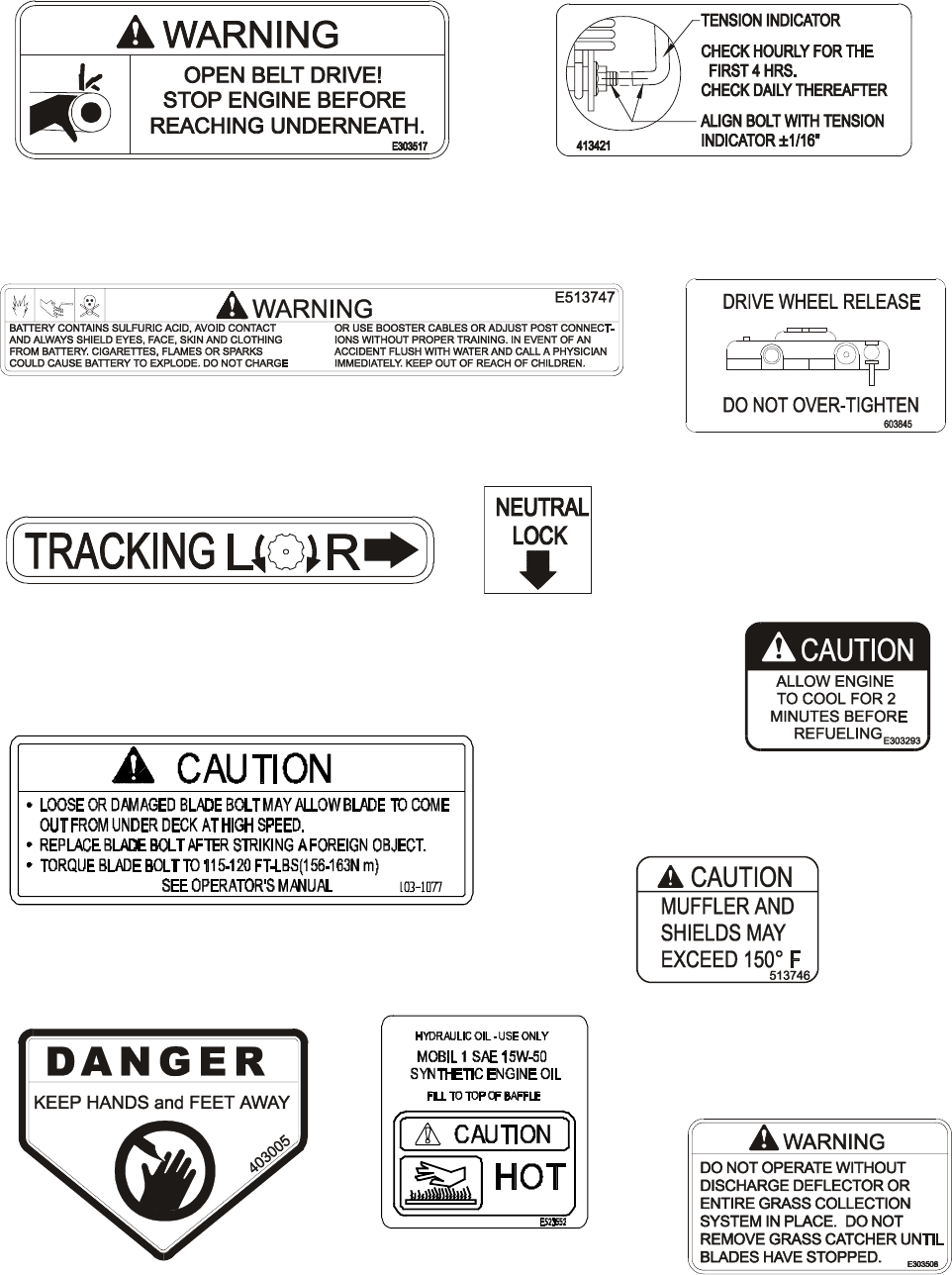

PART NO. 1-303517
LOCATION: Left Side of Rear
Surface of Engine
Deck
PART NO. 1-403005
LOCATION: RH & LH Corners
of Mower Deck
PART NO. 1-303508
LOCATION: Right Front of Mower
Deck Top Surface
PART NO. 1-303293
LOCATION: On Top RH Side
of Fuel Tank
PART NO. 1-513746
LOCATION: On Engine Blower
Housing Next to Muffler
and On Center Belt Cover
PART NO. 1-603845
LOCATION: Rear Center of Top
Surface of Engine Deck
PART NO. 1-523522
LOCATION: On Top of
Hydraulic Tank
PART NO. 1-413421
LOCATION: Left Rear on Top of Engine Deck
PART NO. 1-413214
LOCATION: Right Side of Hydro
Control Crank Arm
Standard Pistol
Grip Handles
PART NO. 1-303102
LOCATION: Upper Handle
17 HP Kawasaki Electric Start Only
PART NO. 1-513747
LOCATION: Battery Cover
PART NO. 103-1077
LOCATION: On Top LH Side of Mower Deck.
