- 32 -

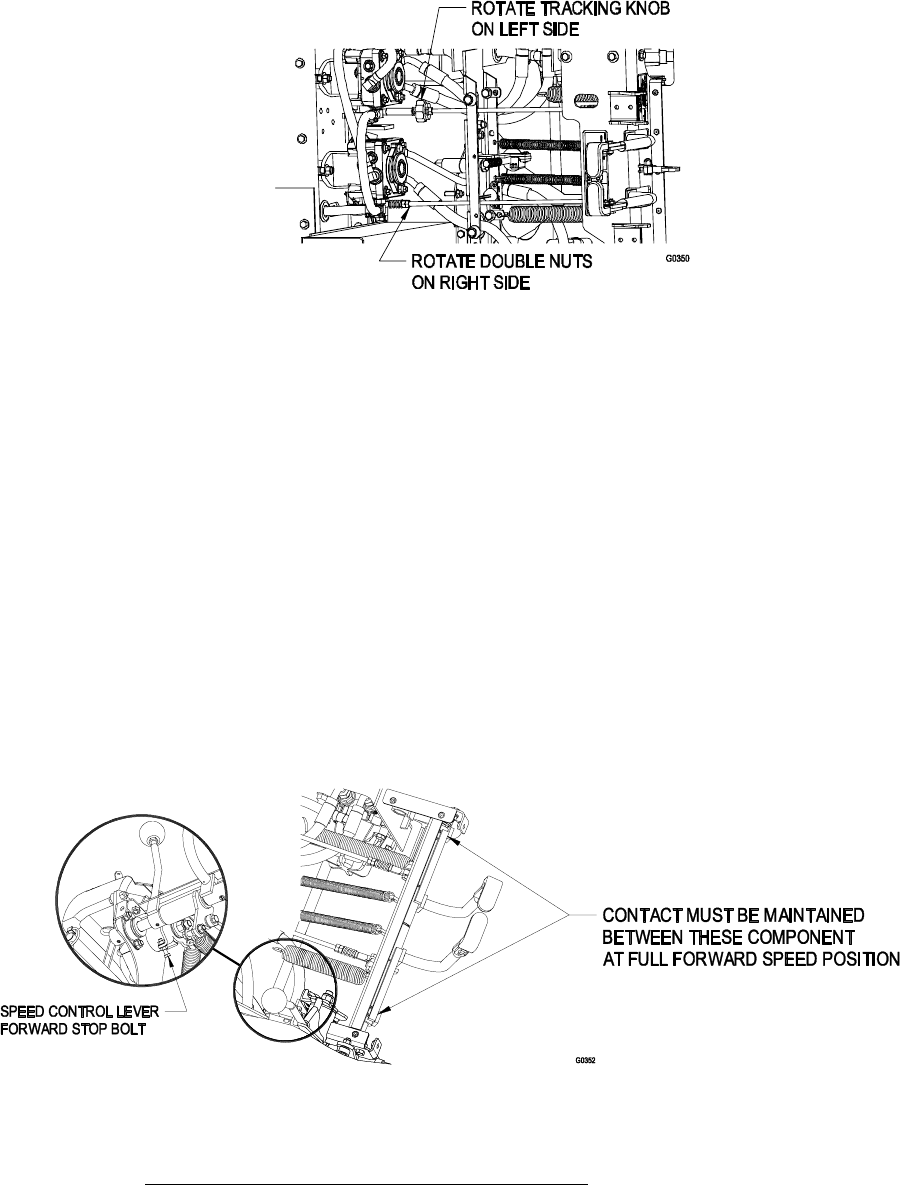

FIGURE 16
TRACKING ADJUSTMENT
h) Move the steering levers to the reverse position. While applying slight
pressure to the levers, allow the steering levers to return to neutral. The
wheels must stop turning (or slightly creep in reverse).
i) Stop engine and wait for all moving parts to stop. Remove jumper wire
from wire harness connector and plug connector into seat switch.
j) Lower from jackstands.
Set forward stop bolt:
a) Remove seat deck (with seat attached) to obtain a clear view of the
steering control shaft to complete this adjustment.
b) Push the speed control lever forward to full forward speed position.
c) If either steering control lever surface does not contact the stop bar at the full
forward speed position, adjust the stop bolt until contact occurs. See Figure
17. Once contact occurs, turn the stop bolt one more full turn to prevent
bottoming of the hydraulic pump internal stops.
FIGURE 17
FORWARD STOP BOLT ADJUSTMENT
5.2.10 Steering Control Lever Response Adjustment
:
a) Stop engine, wait for all moving parts to stop and remove key.
b) Move the speed control lever to the full forward position.
