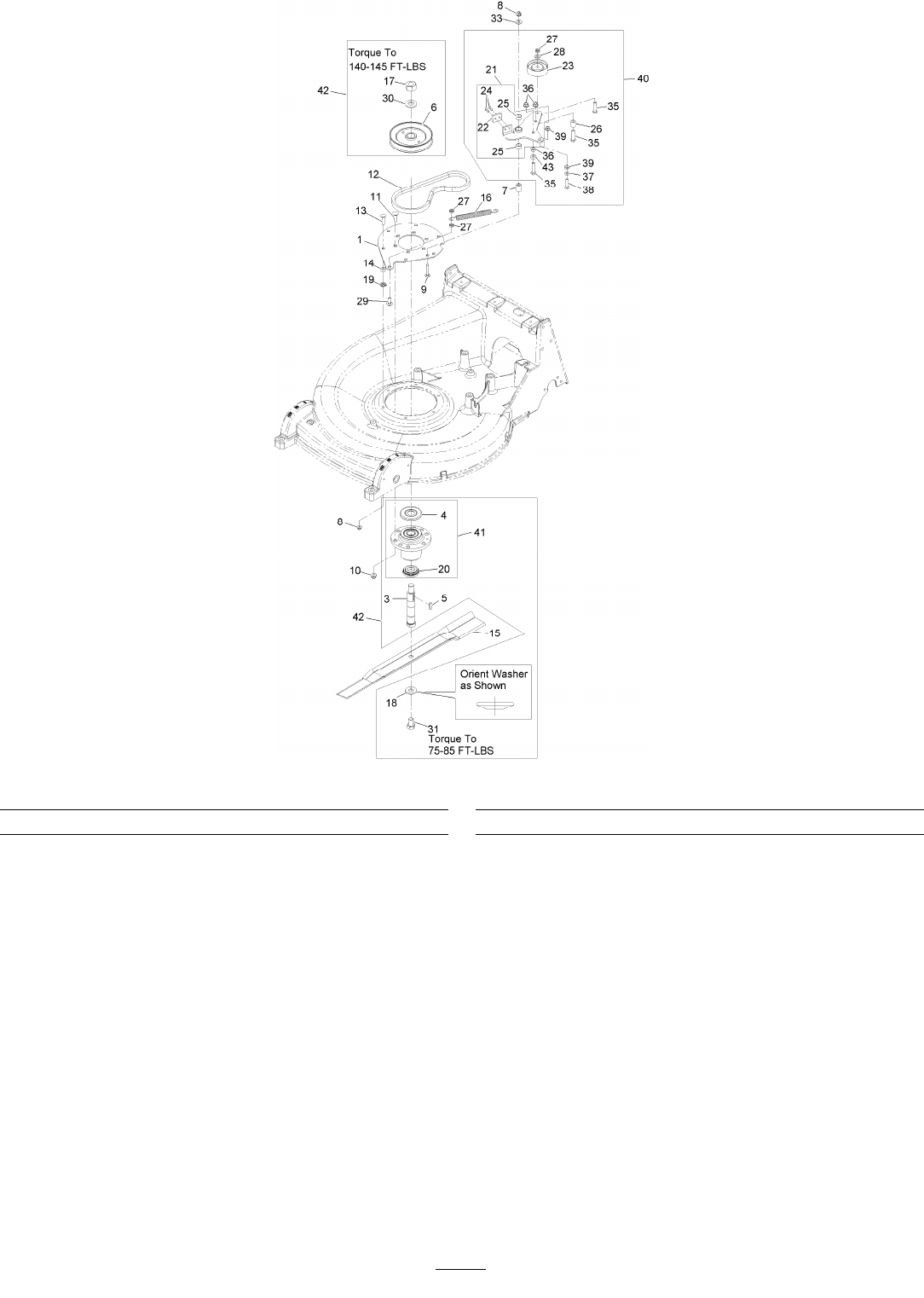

Blade and Spindle Assembly
Ref.
Part Number
Qty. Description
1 116-0092-03 1 Plate-Adapter, Housing
3 109-2650 1
Shaft-Spindle
▲ ●
4 103-1330 1
Guard-Bearing Top
▲
5
1-807268 1
Key-Machine 1/4 X 3/16 X 1
6 116-0821 1
Sheave-Split, Steel (W/Hub)
▲
7
103-7108 1 Bushing-Arm, Idler
8 104-8300
7
Nut-Nyloc 5/16-18 Flg
9 116-0629 1
Screw-Carriage 5/16-18 X 1
3/4 Short
10 104-8301 6
Nut-Nyloc 3/8-16 Flg
11 3231-28 6
Bolt-Carriage 3/8-16 X 1 1/4
12 116-0823 1 Belt
13 3230-4 6
Bolt-Carriage 5/16-18 X 1
1/2
14 111044 6 Bushing
15 109-0343 1 Blade
Ref.
Part Number
Qty. Description
15 103-6422 1 Blade, Mulching
■
16 103-7896 1
Spring-Brake
17 3217-46 1
Nut-Hex 3/4-16 Heavy
18 1-513208 1
Washer-Spring Disc 5/8
19 78-7170 6
Nut-Push 5/16
20 103-2535 1
Spacer-Guard Bottom
21 116-1408 1 Asm, Idler Arm
22 116-0959 1 Pad-Brake
23 109-3546 1 Pulley-Idler
24 103-0138 2
Rivet 3/16 X 1/2
25 103-6111 2 Bearing
26 1-633080 1
Spacer
27 3296-59 3
Nut-Nyloc 3/8-16 Thin
28 3256-24 1
Washer-3/8 Sae
29 3231-22 1
Bolt-Carriage 3/8-16 X 1
30 103-2802 1
Washer-Spring Disc 3/4
31 103-1026 1
Screw-HH 5/8-11 X 1 Gr 8
●
DO NOT use a copper or nickel based anti-seize.
■
Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.
▲
Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.
4500-938A 6 5
