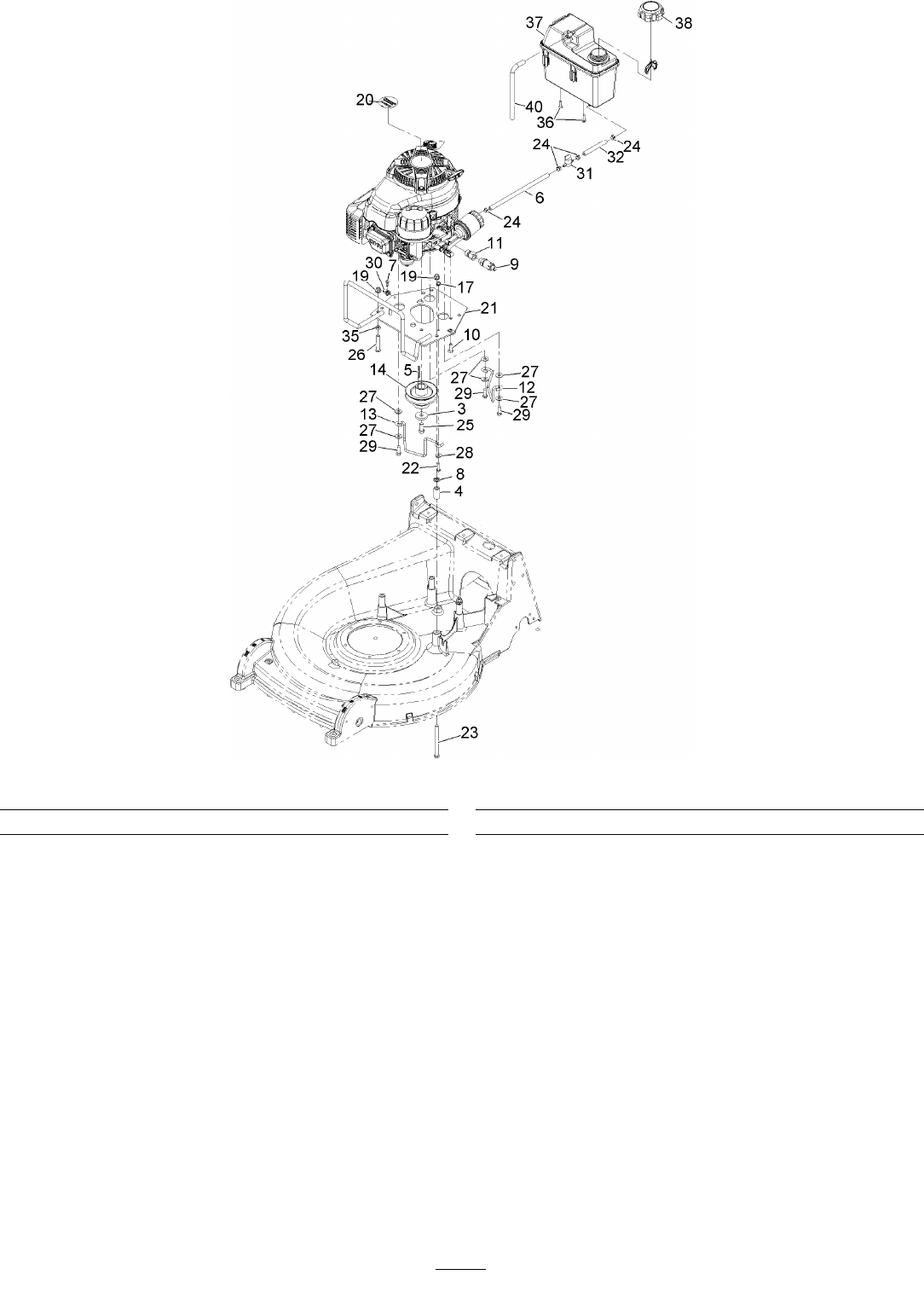

Engine Assembly
Ref.
Part Number
Qty. Description
3 1-543610 1
Washer-Clutch
4 116-1182 4
Spacer
5
7-0036 1
Key-Square
6 109-0294 1 Hose-Fuel
7
63-8590 2
Screw
8 78-7170 4 Ring-Retaining
9 92-6877 1
Valve-Drain, Oil
●
10 95-1726 4
Screw-Taptite
11 103-1966 1 Adapter
●
12 116-0860 1
Guide-Belt, Rear
13 116-0859 1
Guide-Belt, Front
14 116-0822 1
Sheave-Drive
▲
17 104-7201 1 Nut-HF
19 104-8301
5
Nut-Flange, NI
20 109-6528 1 Decal, Recoil Kai
21 116-0972-03 1 Plate-Engine
Ref.
Part Number
Qty. Description
22 321-6 1
Screw-HH
23 323-23 4
Screw-HH
24 2412-98 4
Clamp-Hose
25 3212-4 1
Screw-HH
■
26 323-12 1
Screw-HH
27 3256-3 6 Washer-Flat
28 3290-456 1 Washer-Belleville
29 33114-025 3
Screw-HH
■
30 107069 2
Clip
31 1-603770 1 Valve-Fuel
32 109-0295 1 Hose-Fuel
35 3218-3 1 Nut-Jam
36 46-8091 2
Screw-HWH
37 114-0280 1 Tank-Fuel
38 109-6776 1
Cap-Ratchet, Tethered
40 115-0962 1
Hose-Vent, Canister
●
Use a Teon Pipe Sealant or equivalent on threads.
■
Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.
▲
Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.
4 11 4500-938A
