Operation
Product Overview

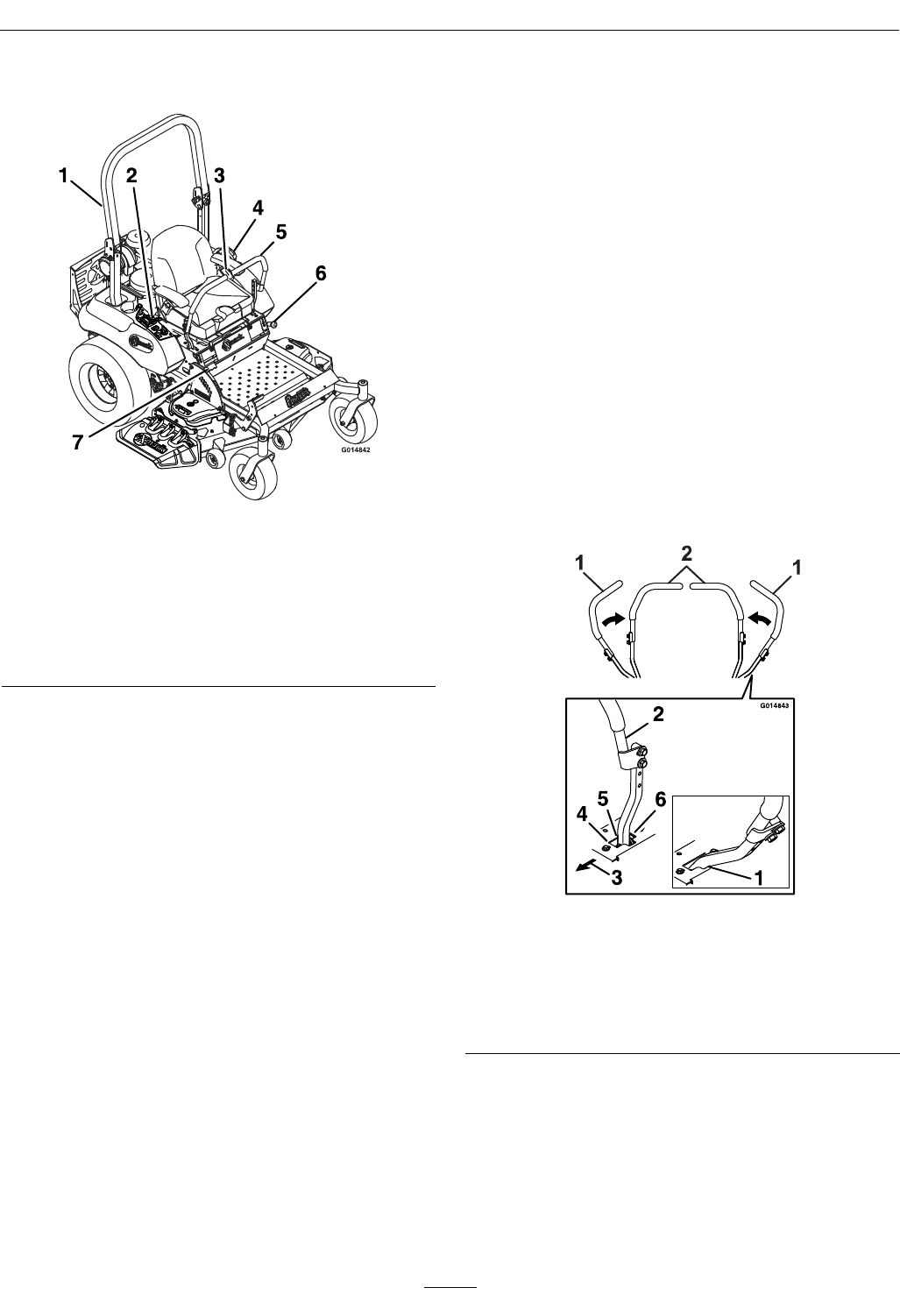

Figure 4
1. Rollover Protection
System (ROPS)
5. Motion control levers
2. Engine Controls (right
console)
6. Parking brake
3. Seat belt 7. Height of cut adjustment
4. Fuel cap
Operation
Note: Determine the left and right sides of the
machine from the normal operating position.
Controls
Motion Control Levers
The motion control levers located on each side of
the console control the forward and reverse motion
of the machine.
Moving the levers forward or backward turns
the wheel on the same side forward or reverse
respectively. Wheel speed is proportional to the
amount the lever is moved.
Moving the levers outward from the center position
into the T-slot locks them in the neutral position
(Figure 5).
Figure 5
1. Neutral lock position
(handles out)
4. Forward
2. Neutral operate position
(handles in)
5. Neutral (operate)
3. Front of unit
6. Reverse
Choke Control
Located on right console (black lever) (see Figure 6).
The choke is used to aid in starting a cold engine.
Moving the choke lever forward will put the choke in
the “ON” position and moving the choke lever to the
rear, to the detent, will put the choke in the “OFF”
18
