Maintenance
Adjustments
Adapter Plate and Tire
Adjustment
Important: For optimal performance, the
StandOn pull arm top surface should be
horizontal to the ground surface.
To obtain a horizontal pull arm, the adapter plates
and the platform wheel can be repositioned (see
Figure 14).

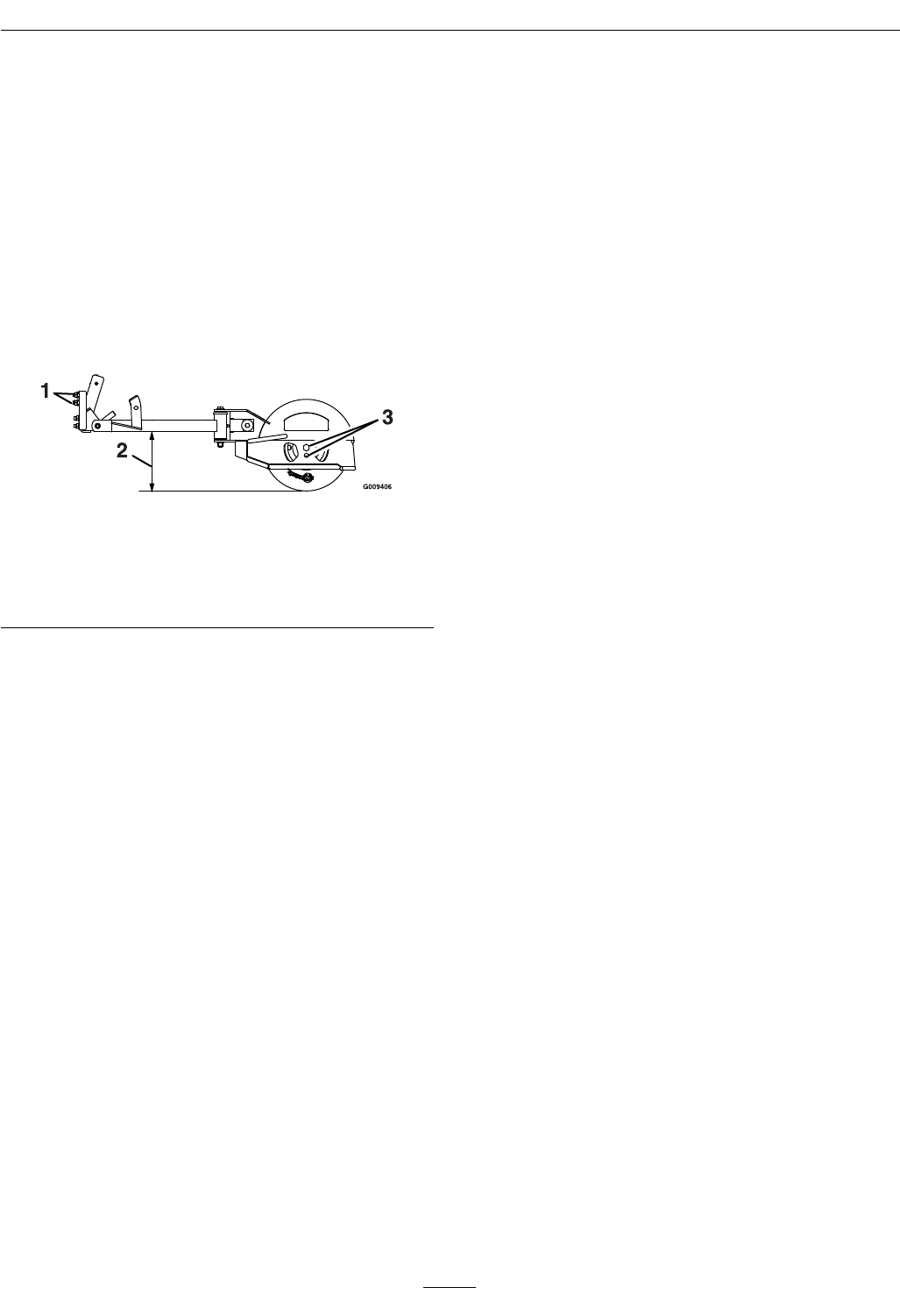

Figure 14
1. Adapter plates can be moved to adjust height position
2. Pull arm should be horizontal to ground
3. Wheel can be mounted in either hole for height
adjustment
Note: To achieve more ground clearance for higher
cutting heights, raise the platform by using the lower
wheel adjustment hole and corresponding adapter
plate holes.
16
