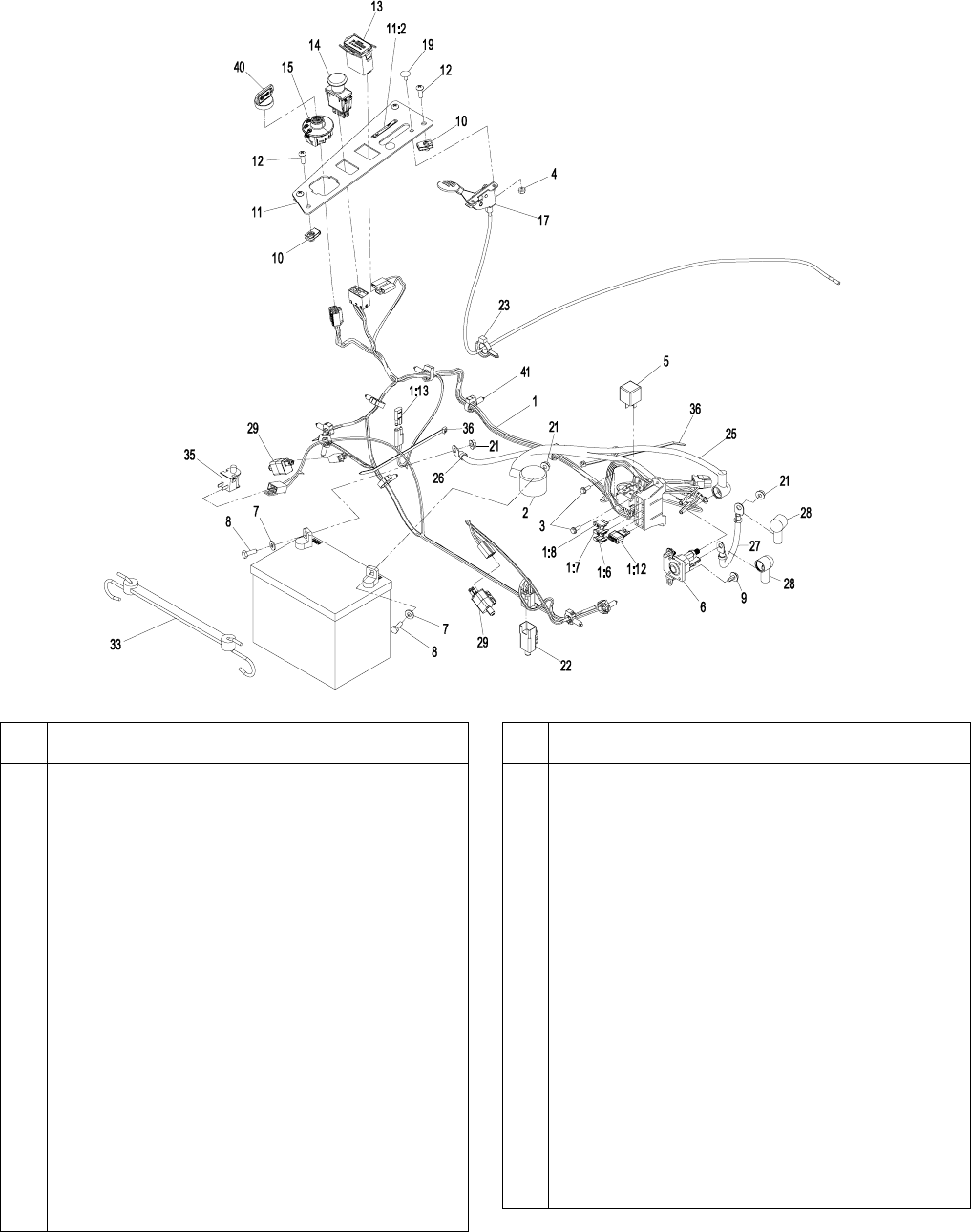

ELECTRICAL GROUP
-21-
Item
Part No.
Description
Qty.
1x 116-0526 Asm, Harness...........................................1
1:6 109102 Fuse, 25 Amp...........................................1
1:7 1-816001 Fuse, 20 Amp...........................................1
1:8 109355 Fuse, 15 Amp...........................................1
1:12 109-9186 Diode, TVS...............................................1
1:13 116-0053 Cap, Plug .................................................1
2 109-2407 Insulator ...................................................1
3 32144-1 Screw, HWH #10-24 x 1/2 Taptite.............3
4 3296-2 Nut, Nyloc #10-24.....................................2
5 1-643275 Relay, 12VDC 40 Amp..............................1
6 1-513075 Solenoid, Plastic.......................................1
7 3256-22 Washer, 1/4..............................................2
8 321-4 Screw, HH 1/4-20 x 3/4.............................2
9 46-8560 Screw, HHF 1/4-20 X 1/2..........................2
10 107069 Nut, Retainer-Panel 1/4-20 .......................4
11 116-0734 Asm, Control Panel W/Decal (42”)............1
116-0527 Asm, Control Panel W/Decal (48” & 52”)...1
11:2 116-0532 Decal, Throttle/Choke (42”).......................1
103-6327 Decal, Throttle/Choke (48” & 52”) .............1
12 3258-166 Screw, PPH 1/4-20 x 3/4 ..........................4
Item
Part No.
Description
Qty.
13 1-513374 Meter, Engine Hours ................................ 1
14 103-5221 Switch, PTO............................................. 1
15 116-0229 Switch-Key............................................... 1
17 116-0528 Control, Throttle .......................................1
19 1-807513 Bolt, Carriage #10-24 x 1/2....................... 2
21 32128-33 Nut, Whizlock 1/4-20 ................................ 3
22 99-7408 Switch ......................................................1
23 105-1853 Clamp, Hose, Hydro................................. 1
25 109-7653 Asm, Positive Battery Cable..................... 1
26 103-0705 Cable, Ground.......................................... 1
27 109-9415 Asm, Positive Starter Cable...................... 1
28 1-543393 Insulator, Solenoid + ................................ 3
29 110-6765 Switch-Single, Pole No............................. 2
33 104-2466 Strap-14 In. ..............................................1
35 82-2190 Switch ......................................................1
36 614249 Strap, Tie ................................................. 2
40 103-2106 Key, Exmark Logo.................................... 1
1-603511 Key, Ignition .............................................1
41 32180-037 Clip, Harness............................................1
x Use dielectric grease on all wiring harness connectors
Exmark black touch up spray paint – gloss black.
