11. Insert the second bearing and new seal into the
wheel.
12. Apply a thread locking adhesive to the 2nd spacer
nut and thread onto the axle with the wrench ats
facing outward.
13. Torque the nut to 75-80 in-lb (8-9 N-m), loosen,
then re-torque to 20-25 in-lb (2-3 N-m). Make
sure axle does not extend beyond either nut.
14. Reinstall the seal guards over the wheel hub and
insert wheel into caster fork. Reinstall caster bolt
and tighten nut fully.
Important: To prevent seal and bearing damage,
check the bearing adjustment often. Spin the
caster tire. The tire should not spin freely
(more than 1 or 2 revolutions) or have any side
play. If the wheel spins freely, adjust torque on
spacer nut until there is a slight amount of drag.
Reapply thread locking adhesive.
Lubricate Brake Handle Pivot
Service Interval: Every 160 hours
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Lubricate bronze bushings on brake handle
pivot with a spray type lubricant or light oil (see
Figure 7).

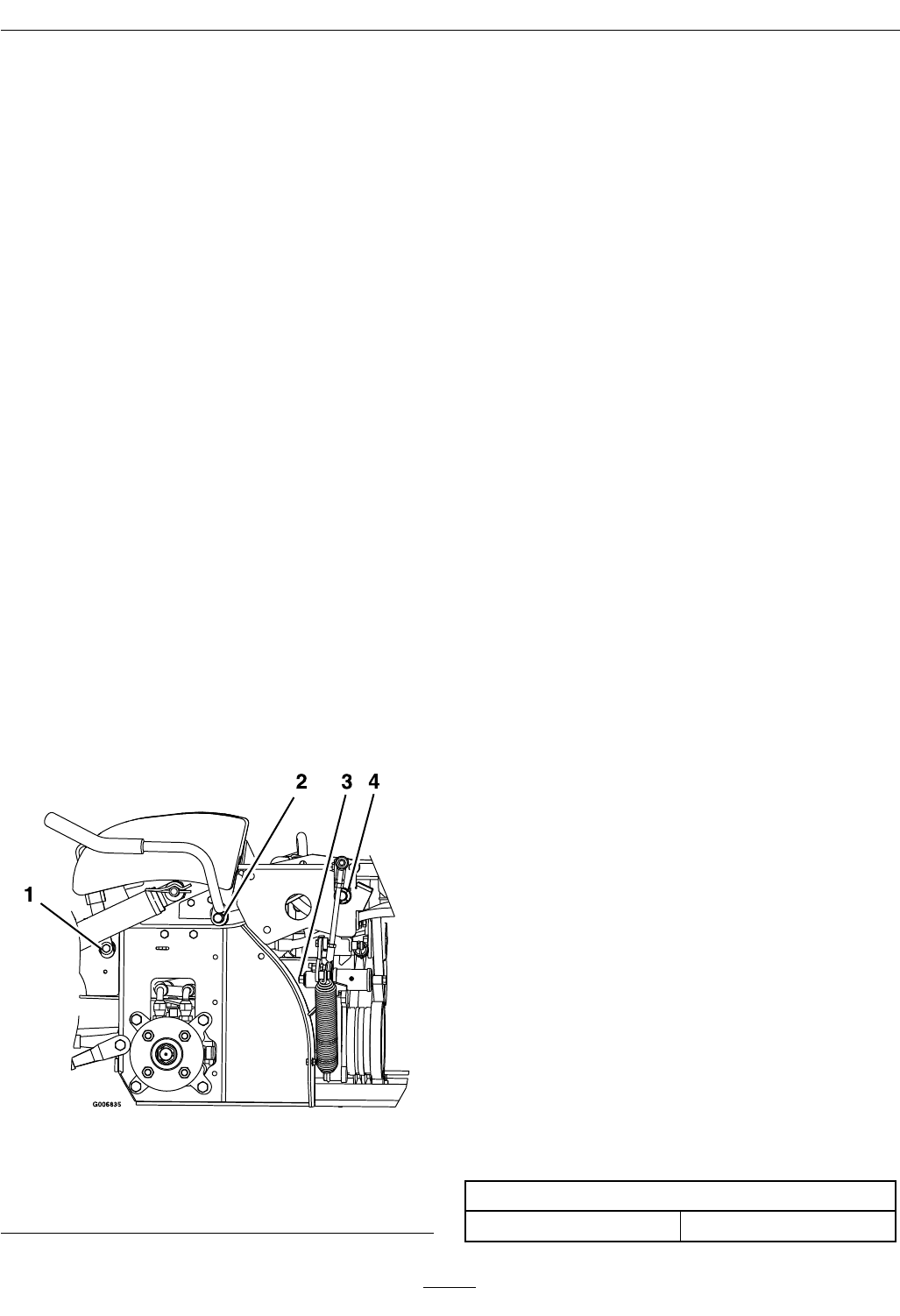

Figure 7
Left Side of Unit Shown
1. Brake Handle Pivot
3. Spring Arm Pivot
2. PTO Handle Pivot
4. Toggle Pivot
Lubricate Brake Rod
Bushings
Service Interval: Every 160 hours
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Unhook seat latch and tilt seat up.
3. Lubricate bronze bushings on each end of brake
rod shaft with a spray type lubricant or a light oil
(bushings are located to the inside of the ange
bearings).
Lubricate Steering Linkage
Rod Ends
Service Interval: Every 160 hours
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Unhook seat latch and tilt seat up.
3. Lubricate each end of both steering linkage rods
with a spray lubricant or a light oil.
Lubricate Hopper Actuator
Service Interval: Every 160 hours
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Raise hopper and locate actuator on right hand
side of mainframe.
3. Lubricate switch actuator rod with a spray
lubricant or a light oil.
Check Spark Plugs
Service Interval: Every 160 hours
Remove spark plugs, check condition and reset gaps,
or replace with new plugs. See Engine Owner’s
Manual.
Change Fuel Filter
Service Interval: As required
A fuel lter is installed between the fuel tank and the
engine. Replace when necessary.
Replacement Filters
Kohler
Kohler P/N 2405010
26
