Assembly
Read entire operator’s manual before you attempt
to assemble or operate your new pressure washer.
Your pressure washer requires some assembly and is ready
for use after it has been properly serviced with the
recommended oil and fuel.
If you have any problems with the assembly of your pressure
washer, please call the pressure washer helpline at
(800) 743-4115. If calling for assistance, please have the
model, revision, and serial number from the data tag
available.
Unpack Pressure Washer
1. Remove the parts bag, accessories, and inserts
included with pressure washer.
2. Open carton completely by cutting each corner from
top to bottom.
3. Ensure you have all included items prior to assembly.
Items in the carton include:
• Main Unit
• Handle
• High Pressure Hose
• Spray Gun
• Nozzle Extension with Quick Connect Fitting
• Metal Billboard
• Oil Bottle
• Parts Bag (which includes the following):
• Safety Goggles
• Operator’s Manual
• Engine Operator’s Manual
• Owner’s Registration Card
• Spray Gun Holder Wireform
• Bag of 4 Multi–Colored Quick Connect Spray Tips
• Handle/Billboard Fastening Hardware Kit (which
includes):
• Carriage Bolts (2)
• “L” Bolt
• Plastic Knobs (4)
• Tree Clips (4)
To prepare your pressure washer for operation, you will
need to perform these tasks:
1. Fill out and send in registration card.
2. Attach handle and billboard to main unit.
3. Add oil to engine crankcase.
4. Add fuel to fuel tank.
5. Connect high pressure hose to spray gun and pump.
6. Connect water supply to pump.
7. Attach nozzle extension to spray gun.
8. Select/attach quick connect spray tip to nozzle
extension.
Attach Handle and Billboard

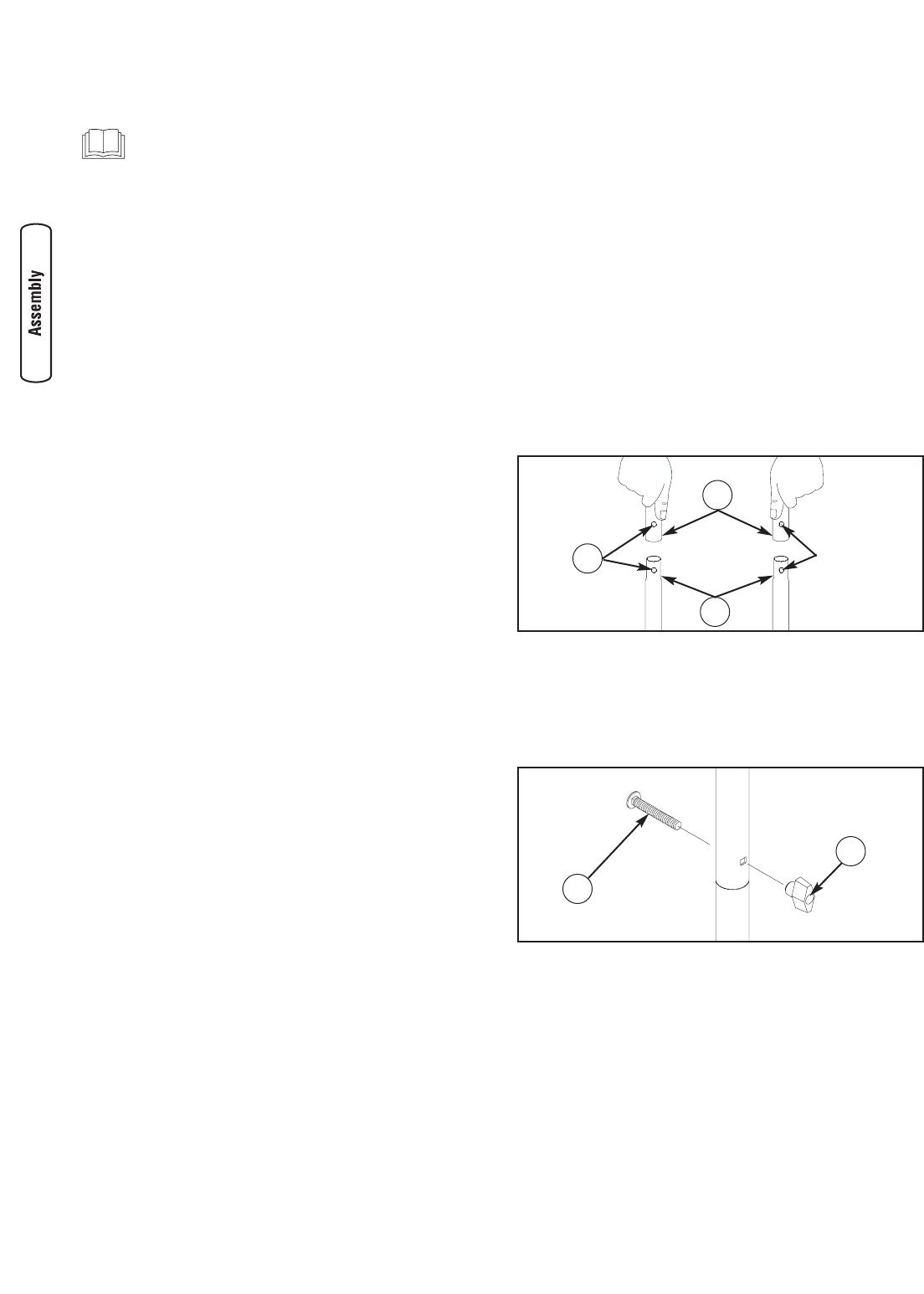

1. Place handle (A) onto handle supports (B) connected to
main unit. Make sure holes (C) in handle align with
holes (C) on handle supports.
NOTE: It may be necessary to move the handle supports
from side to side in order to align the handle so it will slide
over the handle supports.
2. Insert carriage bolts (A) through holes from back of
unit and attach a plastic knob (B) from front of unit.
Tighten by hand.
