How to Use Spray Tips
The quick–connect on the nozzle extension allows you to
switch between four different quick connect spray tips. Spray
tips can be changed while pressure washer is running once
spray gun trigger lock is engaged. The spray tips vary the
spray pattern as shown below.
Follow these instructions to change spray tips:
1. Pull back collar on quick–connect and pull current
spray tip off. Store spray tips in holder provided on the
nozzle extension.
2. Select desired spray tip:
• For gentle rinse, select white 40° spray tip.
• To scour surface, select yellow 15° or red 0° spray tip.
• To apply detergent, select black spray tip.
3. Pull back on collar, insert new spray tip and release collar.
Tug on spray tip to make sure it is securely in place.
Usage Tips
• For most effective cleaning, keep spray tip from 8 to
24 inches (20 to 61 cm) away from cleaning surface.
• If you get spray tip too close, especially using a high
pressure spray tip, you may damage surface being
cleaned.
• DO NOT get closer than 6 inches (15 cm) when
cleaning tires.
Applying Detergent
To apply detergent, follow these steps:
1. Review use of spray tips.
2. Prepare detergent solution as required by job.
3. Place small filter end of detergent siphoning tube into
detergent container.
NOTE: Make sure the filter is fully submerged in detergent
while applying detergent.
4. Make sure black spray tip is installed.
NOTE: Detergent cannot be applied with the high pressure
spray tips (White, Yellow or Red).
5. Make sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump. Turn on water.
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
Spray gun traps high water pressure, even when
engine is stopped and water is disconnected,
which can cause injury.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction, press red button and
squeeze spray gun trigger, to release high pressure, every time
you stop engine.

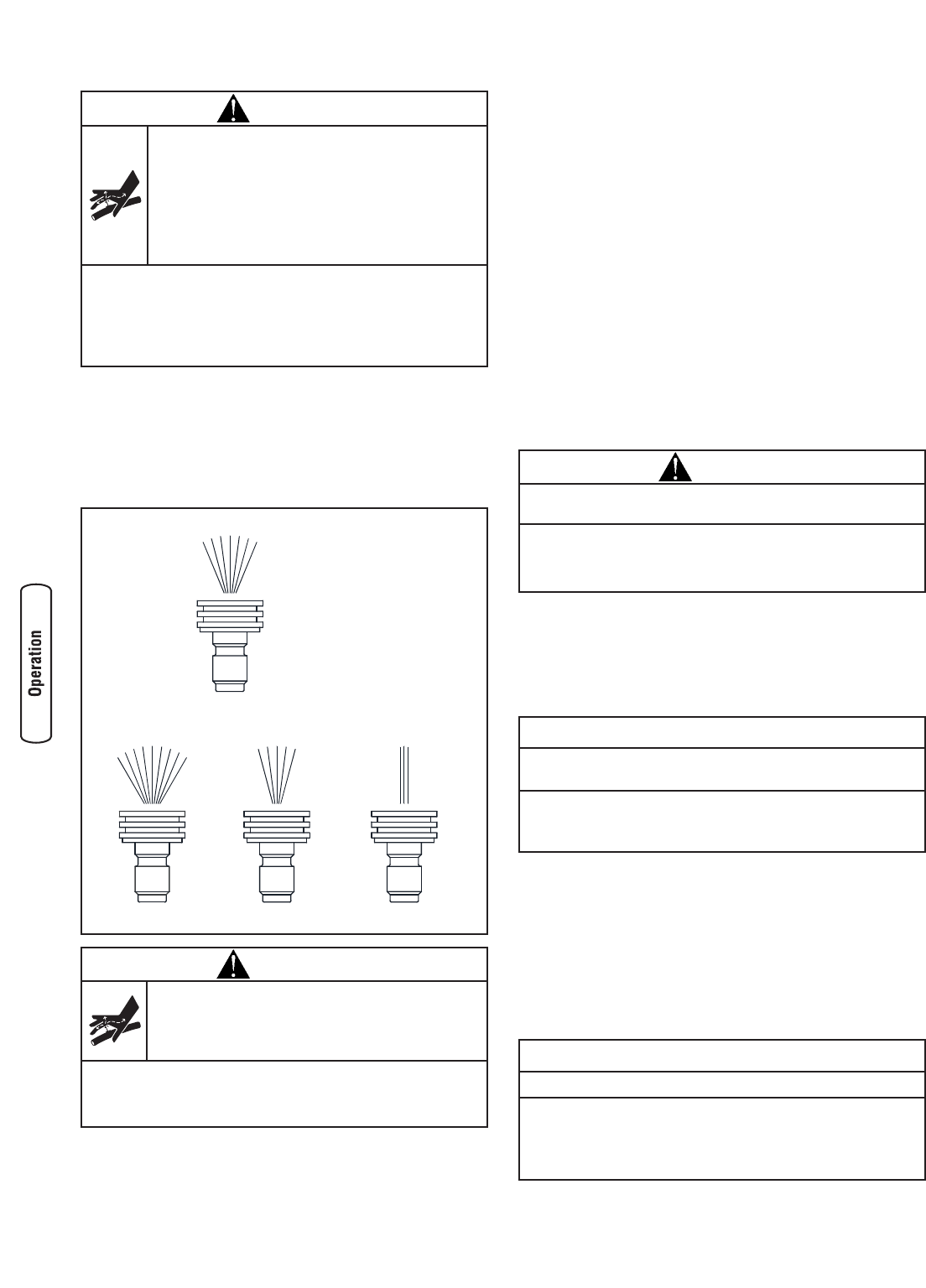

40° White 15° Yellow 0° Red
Black
Use to apply
chemical
Low Pressure
High Pressure
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
• NEVER exchange spray tips without locking the trigger lock on
the spray gun.
• DO NOT twist spray tips while spraying.
CAUTION
Chemicals can cause bodily injury, and/or property
damage.
• NEVER use caustic liquid with pressure washer.
• Use ONLY pressure washer safe detergents/soaps. Follow all
manufacturers instructions.
NOTICE
Contact with the hot muffler can damage detergent
siphoning tube.
• When inserting the filter into a detergent solution bottle, route
the tube so as to keep it from inadvertently contacting the hot
muffler.
NOTICE
You must attach all hoses before you start the engine.
• Starting the engine without all the hoses connected and without
the water turned ON will damage the pump.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
