The operation of any tiller can result in foreign objects thrown into the eyes,
which can result in severe eye damage. Always wear safety glasses or eye
shields before starting your tiller and while tilling. We recommend a wide
vision safety mask over spectacles or standard safety glasses.

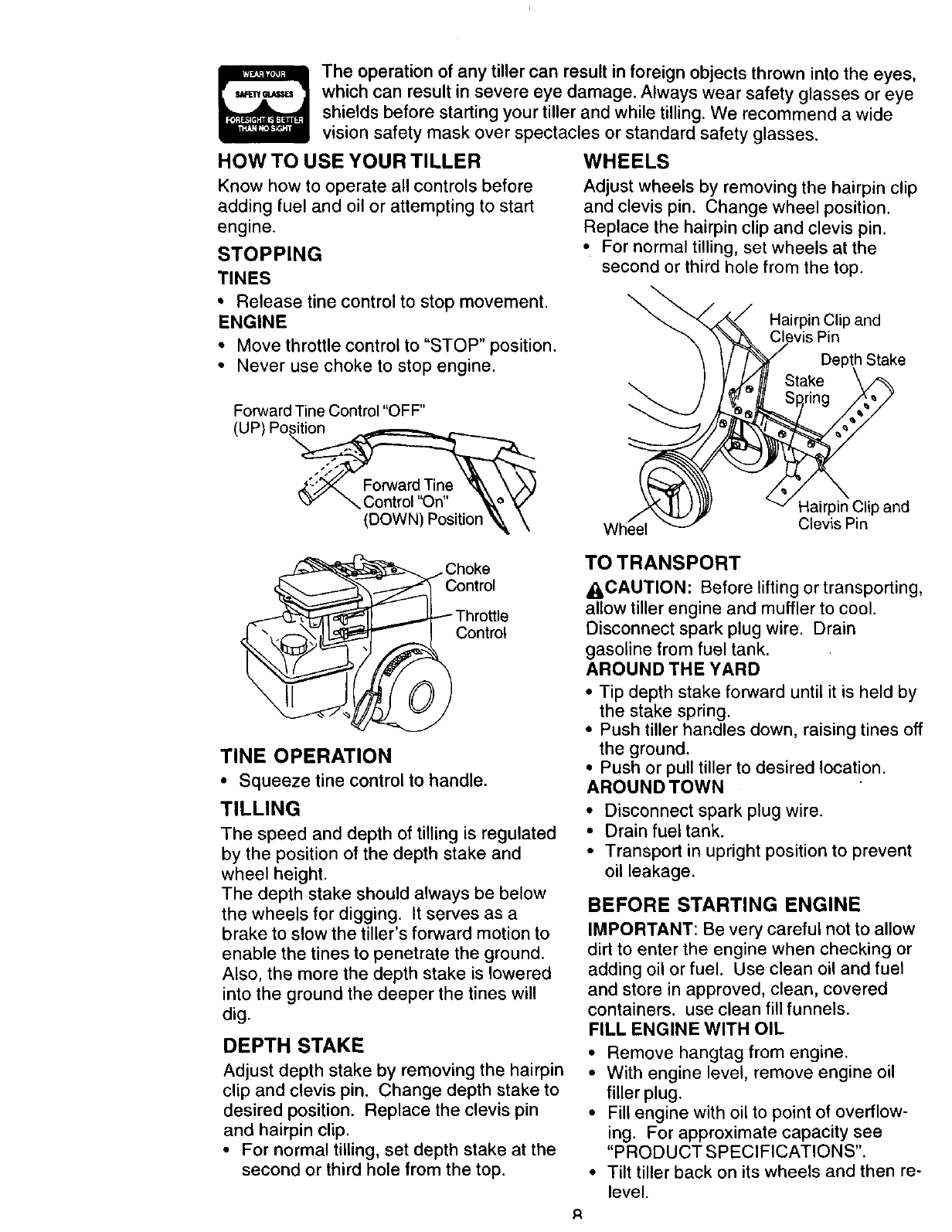

HOW TO USE YOUR TILLER
WHEELS
Know how to operate all controls before
adding fuel and oil or attempting to start
engine.
STOPPING
TINES
Adjust wheels by removing the hairpin clip
and clevis pin. Change wheel position.
Replace the hairpin clip and clevis pin.
* For normal tilling, set wheels at the
second or third hole from the top.
• Release tine control to stop movement.
ENGINE
* Move throttle control to "STOP" position.
• Never use choke to stop engine.
\
Hairpin Clip and
; Pin
Depth Stake
Forward Tine Control "OFF"
(DOWN) Positiol
Control
Control
TINE OPERATION
• Squeeze tine control to handle.
TILLING
The speed and depth of tilling is regulated
by the position of the depth stake and
wheel height.
The depth stake should always be below
the wheels for digging. It serves as a
brake to slow the tiller's forward motion to
enable the tines to penetrate the ground.
Also, the more the depth stake is lowered
into the ground the deeper the tines will
dig.
DEPTH STAKE
Adjust depth stake by removing the hairpin
clip and clevis pin. Change depth stake to
desired position. Replace the clevis pin
and hairpin clip.
• For normal tilling, set depth stake at the
second or third hole from the top.
Wheel
Hairpin Clip and
Clevis Pin
TOTRANSPORT
A, CAUTION: Before lifting or transporting,
allow tiller engine and muffler to cool.
Disconnect spark plug wire. Drain
gasoline from fuel tank.
AROUND THE YARD
• Tip depth stake forward until it is held by
the stake spring.
• Push tiller handles down, raising tines off
the ground.
• Push or pull tiller to desired location.
AROUND TOWN
• Disconnect spark plug wire.
• Drain fuel tank.
• Transport in upright position to prevent
oil leakage.
BEFORE STARTING ENGINE
IMPORTANT: Be very careful not to allow
dirt to enter the engine when checking or
adding oil or fuel. Use clean oil and fuel
and store in approved, clean, covered
containers, use clean fill funnels.
FILL ENGINE WITH OIL
• Remove hangtag from engine.
• With engine level, remove engine oil
filler plug.
• Fill engine with oil to point of overflow-
ing. For approximate capacity see
"PRODUCT SPECIFICATIONS".
• Tilt tiller back on its wheels and then re-
level.
