ASSEMBLY INSTRUCTIONS
Before assembling your Cordless String Trimmer, check that you
have received the following in the shipping carton.
See Figure 1.
A. Trimmer/Edger.
B. Guard.
C. Charger and Charger Bracket.
D. Hardware Bag with (2) screws and (2) plastic anchors.
WARNING: The guard must always be on the tool to protect the
user. Use of the unit without the guard will overheat the motor, and
void the warranty.
NEVER OPERATE TOOL WITHOUT GUARD FIRMLY IN PLACE.

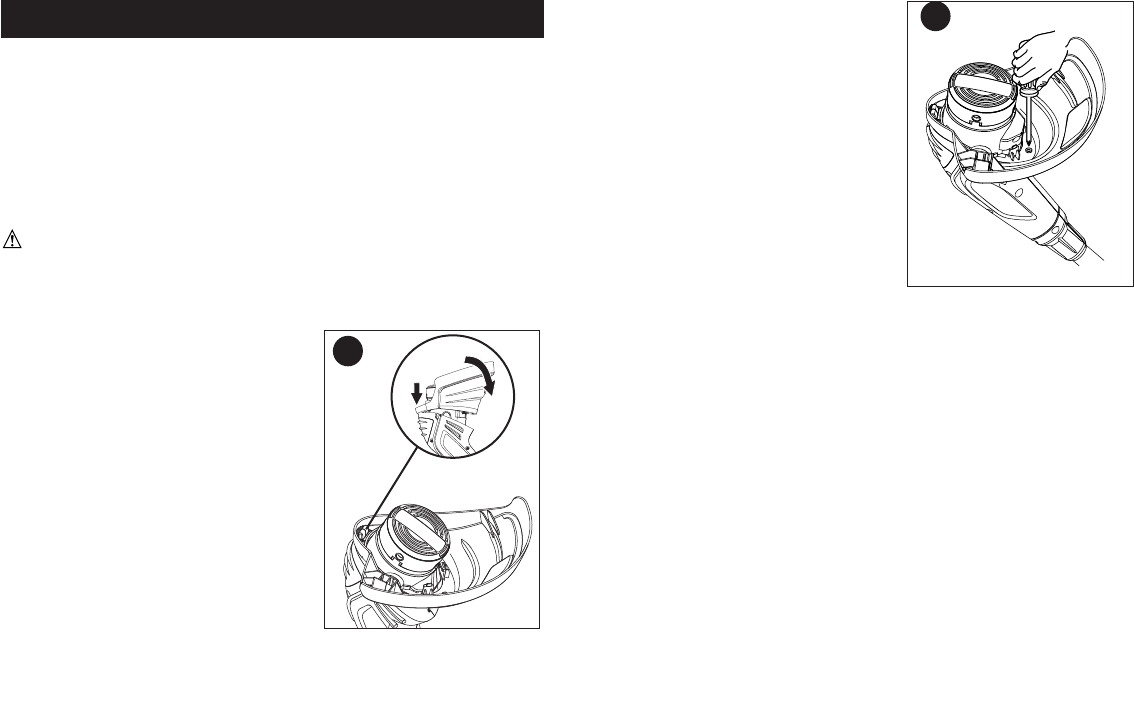

1.Position the open center of the guard
over the line feed head (Figure 2).
2.Hinge the guard on the hook located
on the lower motor housing. Ensure
the line is free, and not tucked under
the guard. Once hooked, lightly pull
on the back edge of the guard and
push the guard down until the 2
latches snap into place on the motor
housing. (Figure 2)
5
3. Using a phillips screwdriver, screw the
preassembled screw in the guard, into
the motor housing. (Figure 3)
BATTERY
THE LEAD ACID BATTERY FOR YOUR TRIMMER IS ONLY
PARTIALLY CHARGED AT THE FACTORY. BEFORE USING
YOUR TRIMMER, THE BATTERY MUST BE CHARGED FOR A
MINIMUM OF 24 HOURS.
• Your trimmer is equipped with a charger bracket that may be
mounted firmly to a wall in your garage, shed or similar building.
(Hardware for hanging the bracket is included in the plastic bag
packed with the trimmer.) Charging your battery in this bracket is
very convenient because it hangs the tool up, out of the way and
ensures a good, solid contact between the charging terminals.
