Dimensions in parentheses are in
millimeters unless otherwise specified.
INSTALLATION INSTRUCTIONS
INSTALL WIRING
IN-LINE OR REMOTE BLOWER WIRING
Remove the hood electrical box cover.
Run power cable to the installation location.
Insert the power cable into the electrical
box by running it through the wire clamp
previously installed. Tighten the wire clamp
to secure the cable.
Run the blower cable to the installation
location. Insert the blower cable into the
electrical box by running it through the
other wire clamp previously installed.
Tighten the wire clamp to secure the cable.
Cut off the butt crimp connector from the
end of ORANGE wire in hood. Strip
ORANGE wire about
3
/8" (10). Using an
appropriate wire connector (not included),
connect BLACK wire from blower to
ORANGE wire from hood. Using the
supplied wire connectors, connect other
wires as follows: BLACK wire from hood to
power supply BLACK wire, all WHITE wires
together and GREEN or BARE wires from
power supply and blower to GREEN ground
screws in the electrical box. Refer to the
wiring diagram below.
Place all wiring connections inside the
electrical box and reinstall the cover. Make
sure that the wires are secure and that no
wires are pinched between the cover and
box.

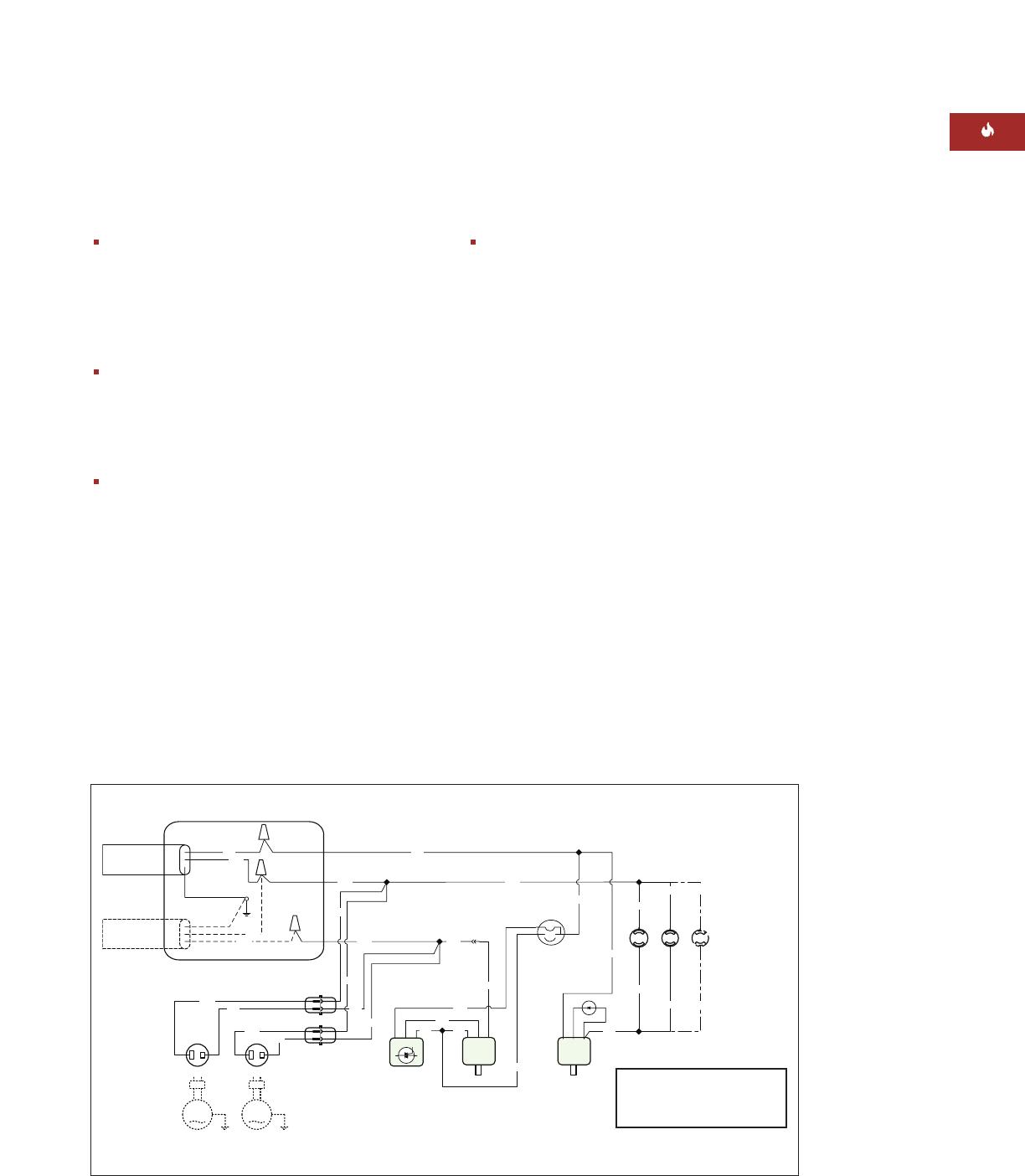

Wiring diagram
