TL-WA730RE 150Mbps Wireless N Range Extender User Guide
There are eleven submenus under the System Tools menu (shown as Figure 4-25): SNMP, Time
Settings, Diagnostic, Ping Watch Dog, Firmware Upgrade, Factory Defaults, Backup &
Restore, Reboot, Password, System Log and Statistics. Clicking any of them will enable you to
configure the corresponding function. The detailed explanations for each submenu are provided
below.

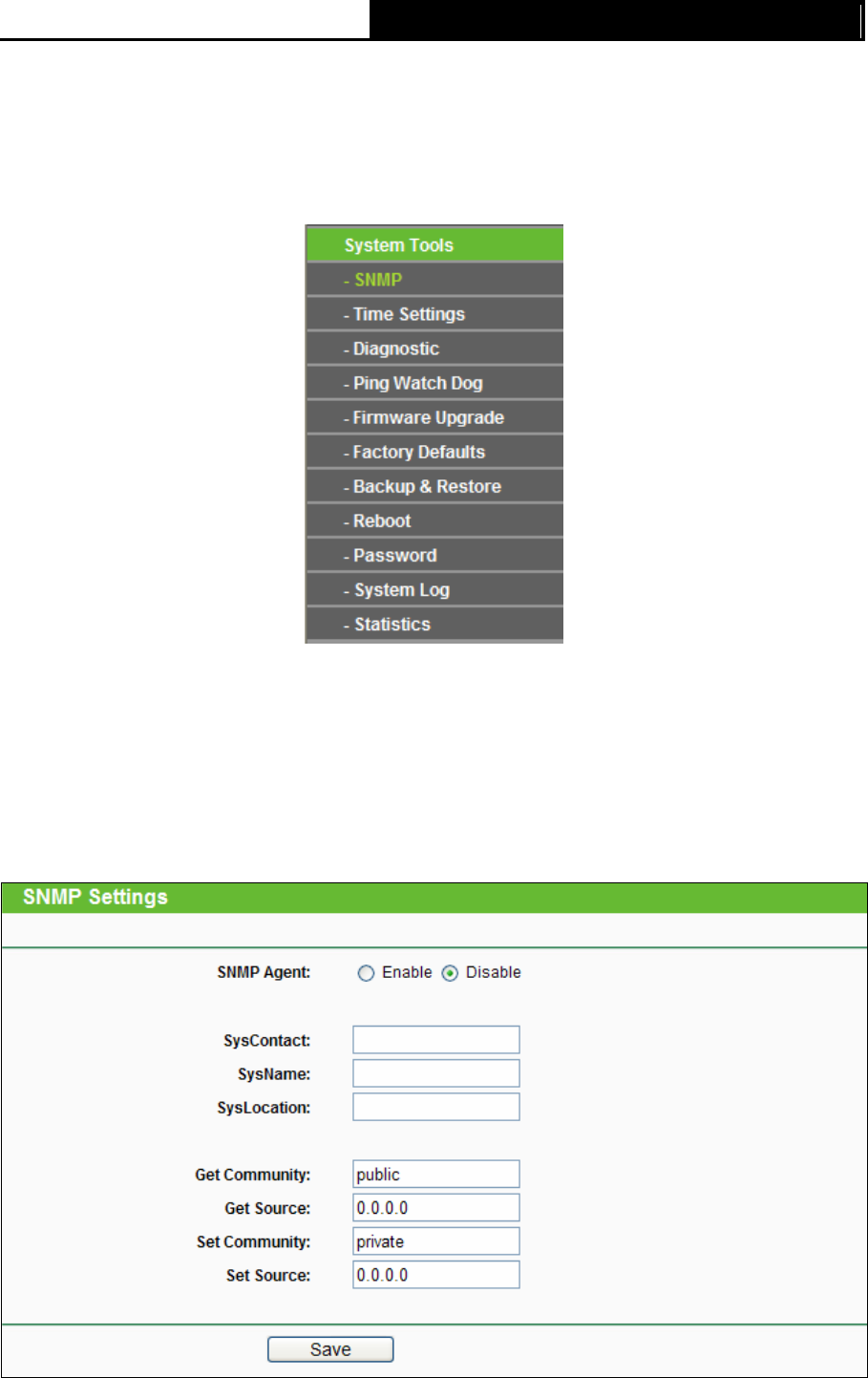

Figure 4-25 The System Tools menu
4.9.1 SNMP
Selecting System Tools > SNMP to enable this function will allow the network management
station to retrieve statistics and status from the SNMP agent in this device. Simple Network
Management Protocol (SNMP) is a popular network monitoring and management protocol, used to
refer to a collection of specifications for network management that include the protocol itself. To
use this function, select Enable and enter the following parameters in Figure 4-26.
Figure 4-26 SNMP
38
