TL-WA701ND 150Mbps Wireless Lite N Access Point User Guide

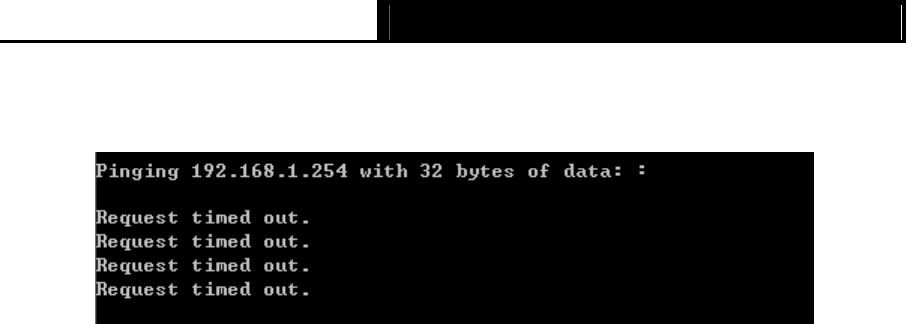

If the result displayed is similar to that shown in Figure 3-6 below, it means that your PC
has not connected to the AP.
Figure 3-6
t which
your PC’s IP address must be within the range of 192.168.1.1 ~
192.168.1.253.
Please check following these steps:
a) Check to see if your PC and the AP are right connected. The LED of LAN por
you link to on the device and the LED on your PC’s adapter should be lit up.
b) Make sure the TCP/IP for your PC is right configured. If the AP’s IP address is
192.168.1.254,
12
