TL-R402M Cable/DSL Router User Guide
9

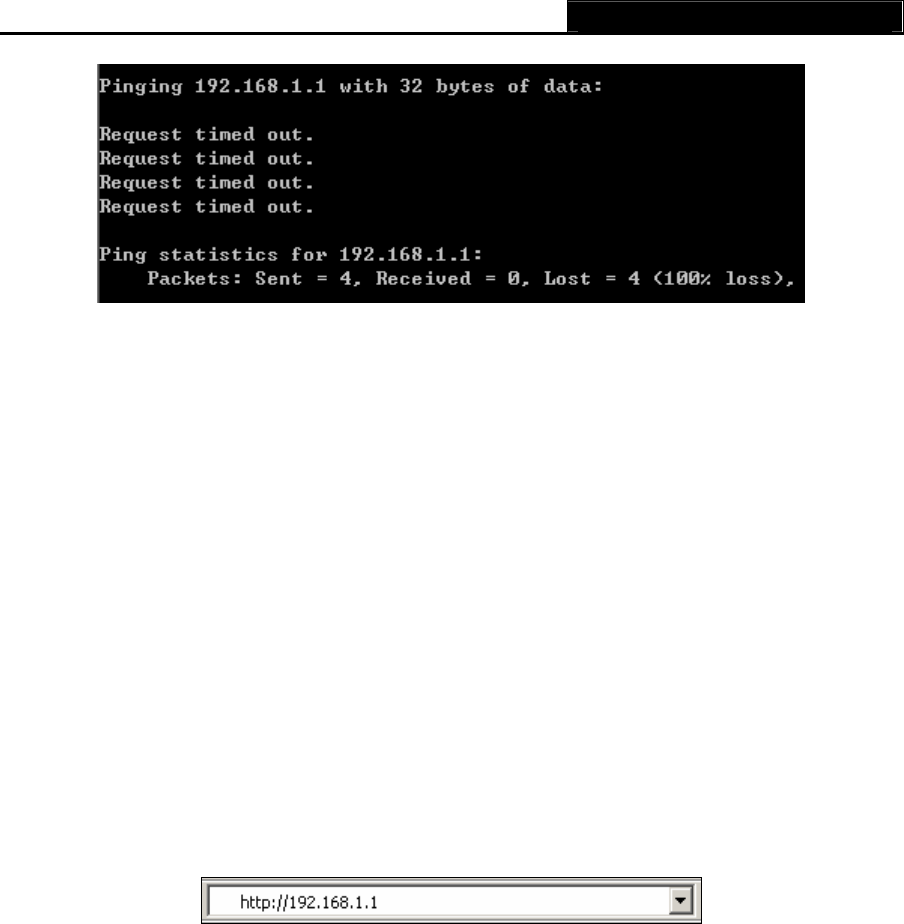

Figure 4-2 Failed result of Ping command
If the result displayed is similar to what shown in
Figure 4-2 it means that your PC has not
connected to the router. If so, refer to the following steps for a solution.
1 Is the connection between your PC and the router correct?
Note:
The Link/Act LEDs of LAN port on the router and LEDs on your PC's adapter should be lit.
2 Is the TCP/IP configuration for your PC correct?
Note:
If the router's IP address is 192.168.1.1, your PC's IP address must be within the range of
192.168.1.2 ~ 192.168.1.254, the gateway must be 192.168.1.1.
4.2 Quick Installation Guide
With a Web-based (Internet Explorer or Netscape
®
Navigator) utility, the TL-R402M Cable/DSL
Router is easy to configure and manage. The Web-based utility can be used on any Windows,
Macintosh or UNIX OS with a web browser.
Connect to the router by typing http://192.168.1.1 in the address field of web browser.
Figure 4-3 Login to the router
After a moment, a login window will appear similar to that shown in Figure 4-4. Enter admin for
the User Name and Password, both in lower case letters. Then click the OK button or press the
Enter key.
