TD-W8900GB 54M Wireless ADSL2+ Router User Guide
73
5.7.5 Access Control
This section provides three submenus including Services, Addresses and Password (shown in
Figure 5-74), the detailed descriptions are provided below.

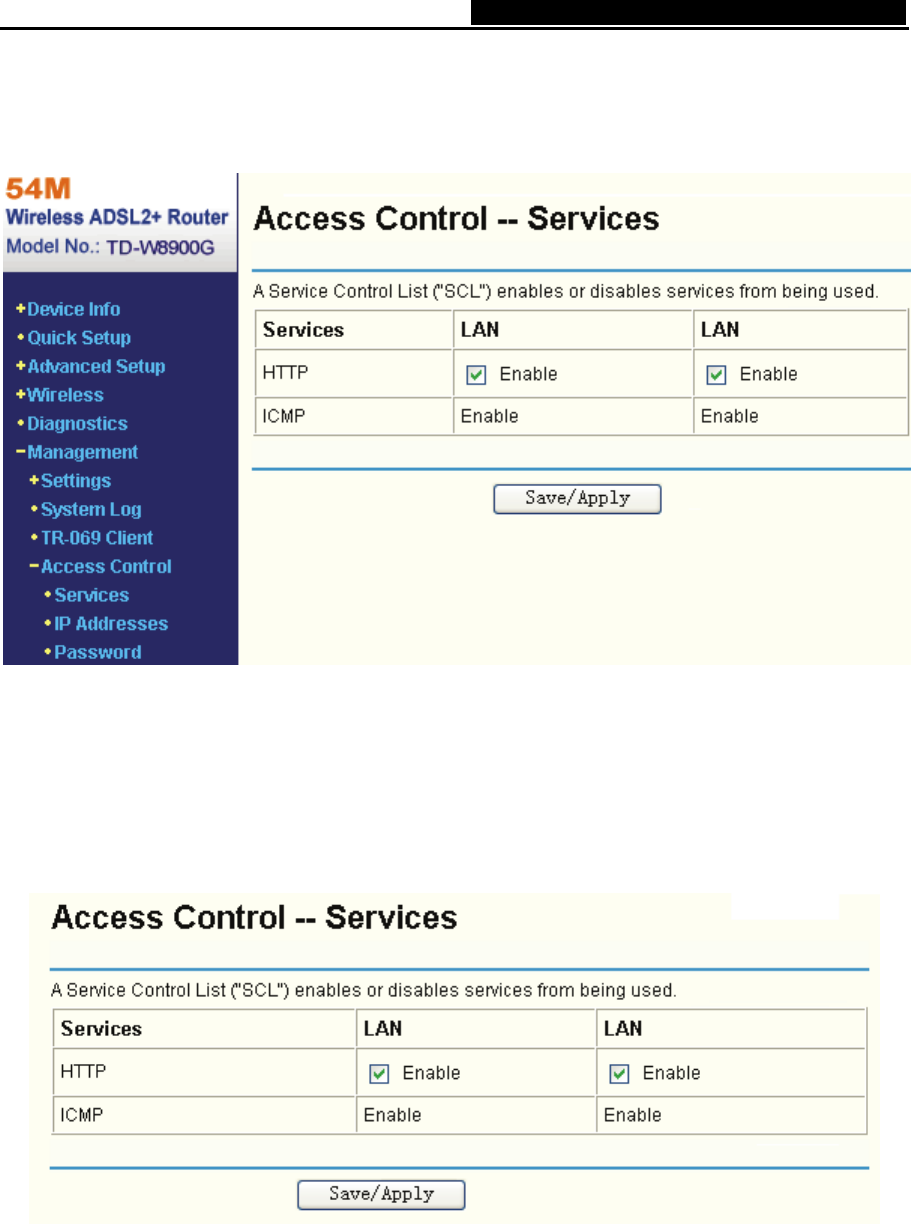

Figure 5-74
5.7.5.1. Services
Choose “Management”Æ“Ac
cess Control”Æ“Services”, you can see the Services screen, this
screen (shown in Figure 5-75) allows you to select the
services for LAN Ports and WAN Port.
After you have completed, click the Save/Apply button to make sure your selection.
Figure 5-75
)
Note:
WAN are not available for the connection type of Bridge here, they won’t display on the screen
above since only Bridge is selected.
5.7.5.2. IP Addresses
Choose “Management”Æ“Ac
cess Control”Æ“IP Addresses”, you can see the IP Address
