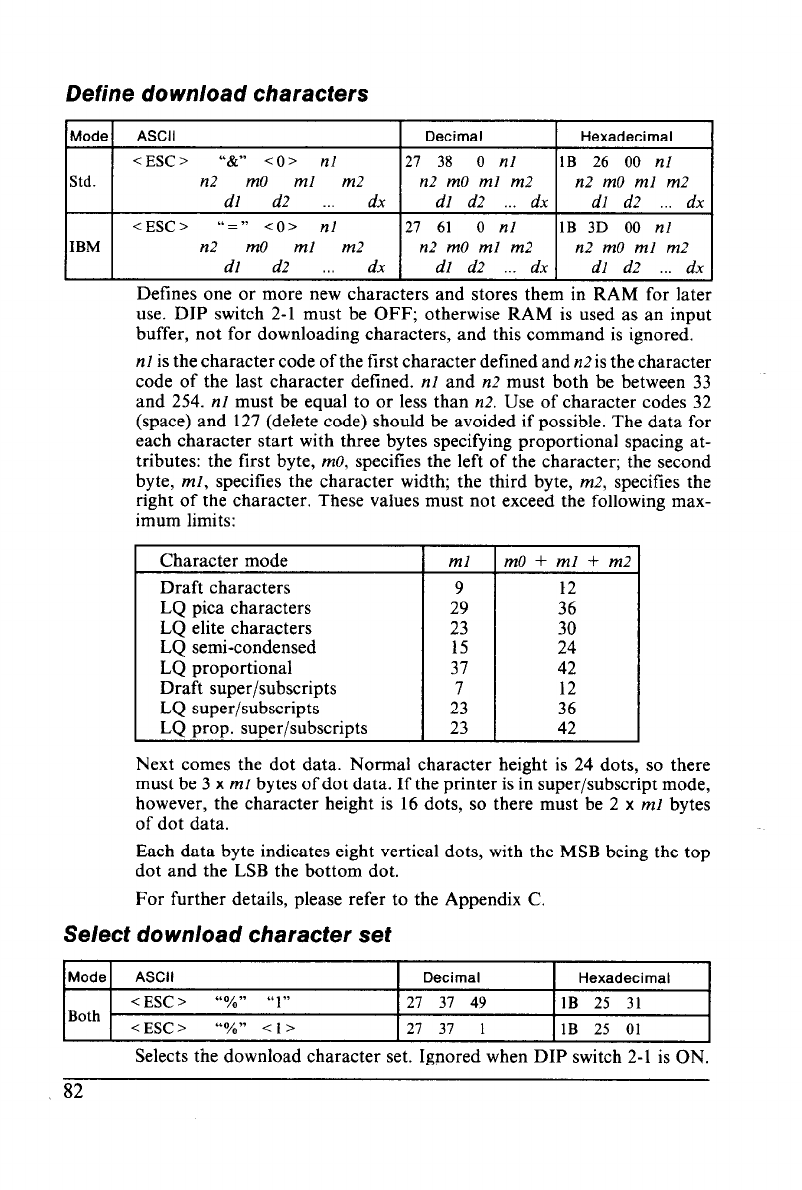

Define download characters
1
Mode ASCII
Decimal Hexadecimal
<ESC> “82” co> nl
27 38 0 nl
1B 26 00 nl
!
Std. n2 m0 ml m2
n2 m0 ml m2
1
n2 m0 ml m2
dl dz dx
dl d2 dx
dr d2 dx
c
I
<ESC>
“=” -co> nl
27 61 0 nl
1B 3D 00 nl
I
IBM
n2 m0 ml m2
n2 m0 ml m2
n2 m0 ml m2
dl dz dx dl d.i’ dx dl dz dx
B
Defines one or more new characters and stores them in RAM for later
use. DIP switch 2-l must be OFF; otherwise RAM is used as an input
buffer, not for downloading characters, and this command is ignored.
nl is the character code of the first character defined and n2 is the character
code of the last character defined. nl and n2 must both be between 33
and 254. nl must be equal to or less than n2. Use of character codes 32
1
(space) and 127 (delete code) should be avoided if possible. The data for
/
each character start with three bytes specifying proportional spacing at-
tributes: the first byte, m0, specifies the left of the character; the second
byte, ml, specifies the character width; the third byte, m2, specifies the
right of the character. These values must not exceed the following max-
imum limits:
Character mode
ml
m0 f ml + m2
Draft characters
9 12
LQ pica characters
29
36
LQ elite characters 23
30
LQ semi-condensed
15
24
LQ proportional 37 42
Draft super/subscripts
7 12
LQ super/subscripts 23 36
LQ prop. super/subscripts
23
42
Y
Next comes the dot data. Normal character height is 24 dots, so there
t
must be 3 x ml bytes of dot data. If the printer is in super/subscript mode,
/
however, the character height is 16 dots, so there must be 2 x ml bytes
E
of dot data.
/
!
Each data byte indicates eight vertical dots, with the MSB being the top
i
dot and the LSB the bottom dot.
j
1
1
For further details, please refer to the Appendix C.
I
Select download character set
[
I
1
Mode ASCII
Decimal
Hexadecimal
< ESC > “%”
‘( 1” 27 37 49
Both
1B 25 31
<ESC>
“o,o”
<I> 27 37 1
1B 25 01
Selects the download character set. Ignored when DIP switch 2-1 is ON.
