Additional Information

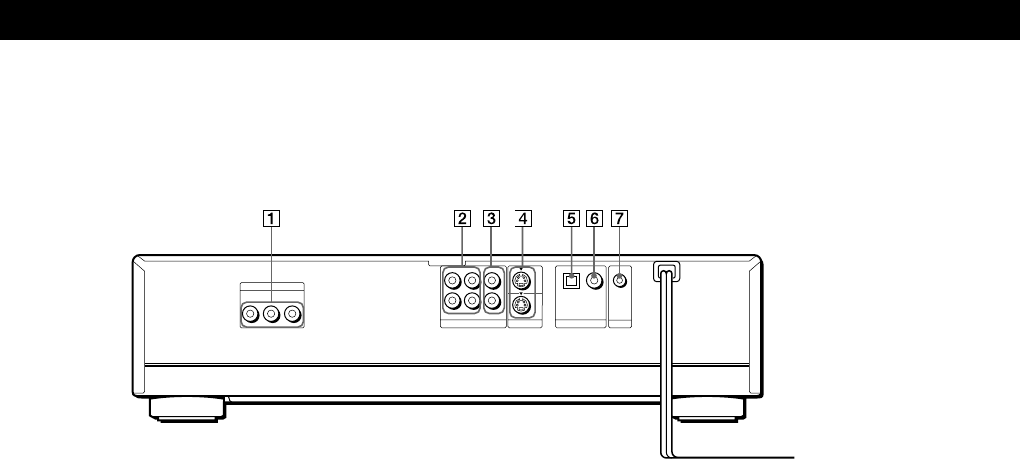

Rear Panel
1 COMPONENT VIDEO OUT connectors (7)
Connects to the monitor or projector with component
video input connectors (Y, PB/B-Y, PR/R-Y) that conform
to output signals from the player.
2 LINE OUT (AUDIO 1, 2) connectors (7)
Connects to the audio input connector on the TV or
receiver (amplifier).
3 LINE OUT (VIDEO 1, 2) connectors (7)
Connects to the video input connector on the TV or
monitor.
4 S VIDEO OUT 1, 2 connectors (7)
Connects to the S video input connector on the TV or
VCR.
5 DIGITAL OUT (OPTICAL) connector (8, 32)
Connects to an audio component using the optical digital
connecting cord.
6 DIGITAL OUT (COAXIAL) connector (8, 32)
Connects to an audio component using the coaxial digital
connection cord.
7 S-LINK connector (7)
Connects to the S-link connector on an external
component.
COMPONENT VIDEO OUT
Y
P
B
/
B–Y
P
R
/
R–Y
INR–AUDIO 2–L
LINE OUT
VIDEO 2
R–AUDIO 1–L VIDEO 1
1
2
S VIDEO OUT
OPTICAL COAXIAL
DOLBY DIGITAL (AC-3)
PCM/DTS/
CONTROL S
DIGITAL OUT S LINK
