COMPLETING THE INSTALLATION
Install the outdoor unit to a stable base to avoid the generation of noise and
vibration, especially when installing the unit close to a neighbor.
If you install the outdoor unit in a place exposed to strong winds or at a height,
fix it to an appropriate support (wall or ground).
1
Place the outdoor unit as indicated on the top of the unit to let the
discharged air out properly.
2
Fix the outdoor unit to an appropriate support using anchor bolts.
3
If the outdoor unit is exposed to strong winds, install shield plates around the
outdoor unit so that the fan can operate correctly.
Secure the rubber leg to prevent the generation of noise and vibration.

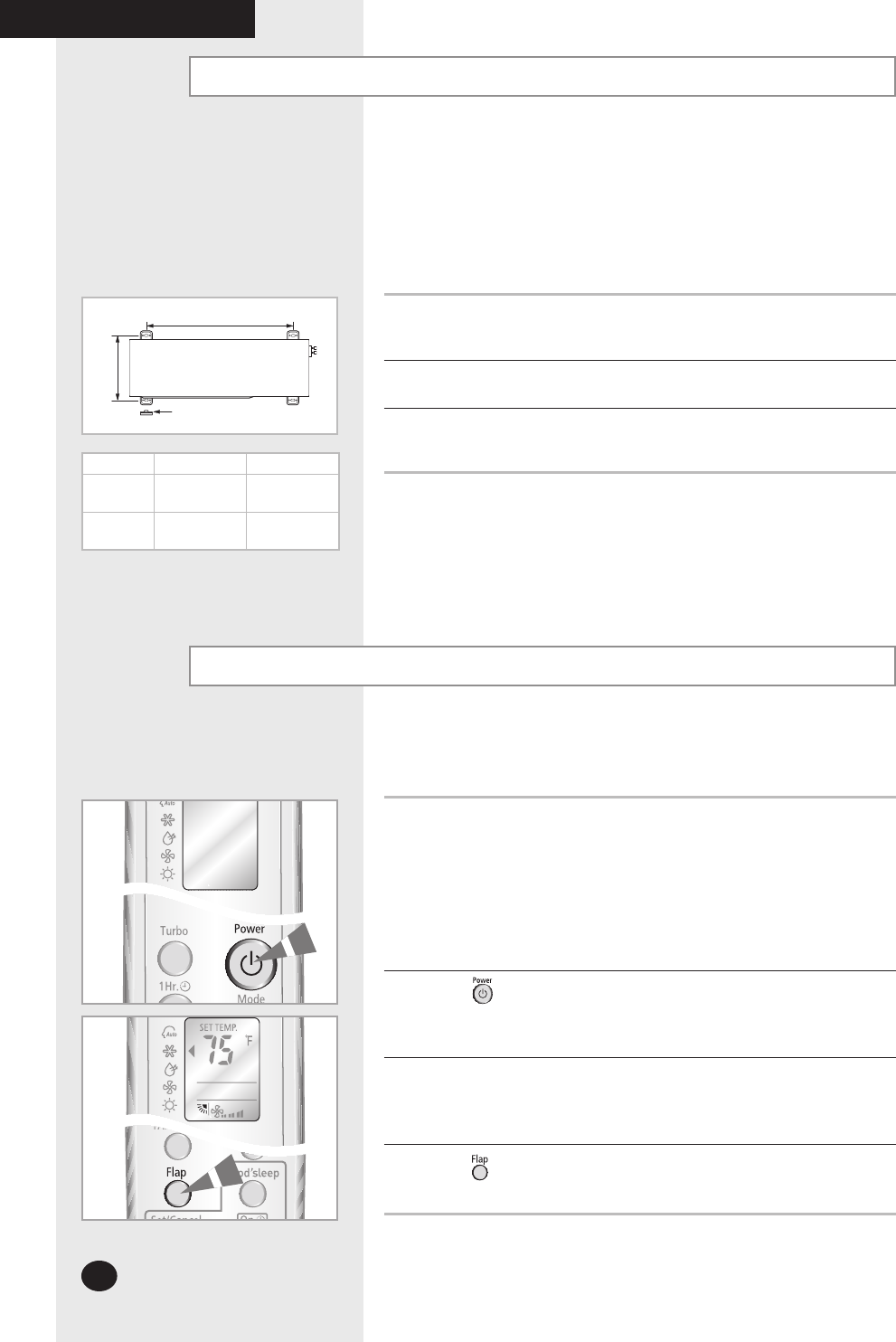

Fixing the Outdoor Unit in Place
“ X ”
Rubber leg
“ Y ”
Final Check and Trial Operation
To complete the installation, perform the following checks and tests to ensure
that the air conditioner operates correctly.
1
Check the following:
Strength of the installation site
Tightness of pipe connection to detect gas leak
Electric wiring connection
Heat-resistant insulation of the pipe
Drainage
Grounding conductor connection
Correct operation (follow the steps below)
2
Press the button and check the following:
The indicator on the indoor unit lights up.
The airflow blade opens and the fan gears up for operation.
3
Press any button and check the following:
The appropriate indicator lights up and the air conditioner operates
according to the selected mode or function.
4
Press the button and check the following:
The airflow blades work properly.
Model “X” “Y”
AQV09J
AQV12J
1.77ft(538mm) 0.95ft(290mm)
AQV18J
AQV24J
2.17ft(660mm) 1.12ft(340mm)
