Various Scan Settings
122
6

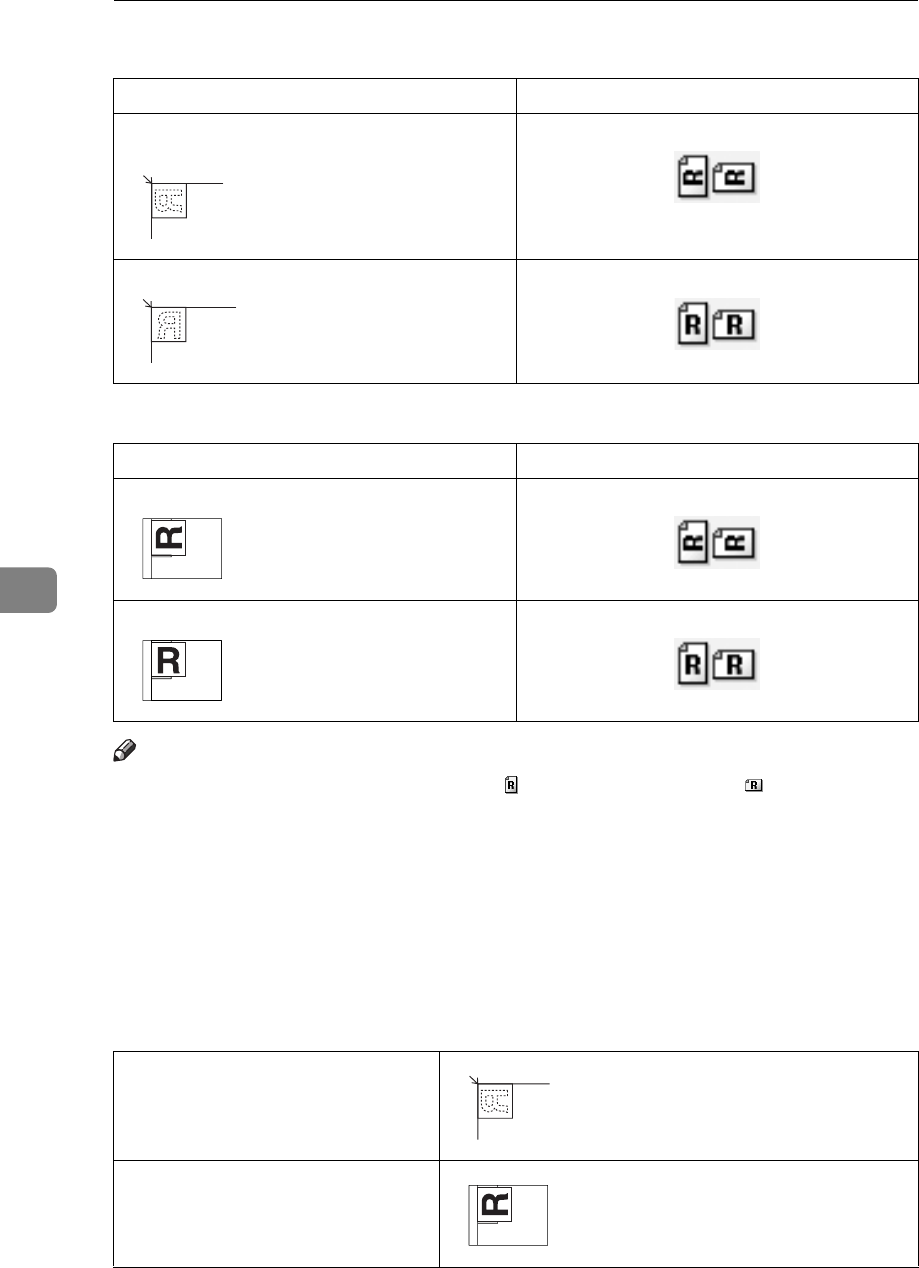

❖ Exposure Glass
❖ ADF
Note
❒ Originals are normally rectangular ( ) or horizontally long ( ). However, the
table above uses squares to make original orientation easier to understand.
Even if the actual shape of the original is different, the combination of original
orientation and the orientation specified on the scanner driver does not
change.
❒ When you specify Gray Scale for Scan Type, and single page TIFF/JPEG or
multi-page TIFF is selected as the file type, refer to the table below for how to
place originals. Originals placed in orientations that are not recommended in
the table might appear incorrectly top/bottom oriented on client computer
displays.
Original orientation Control Panel Key
top edge touches top left corner of exposure
glass
top edge touches rear of exposure glass
Original orientation Control Panel Key
top edge placed first
top edge touches rear of ADF
Placing an Original on the Exposure
Glass
Placing an Original in the ADF
