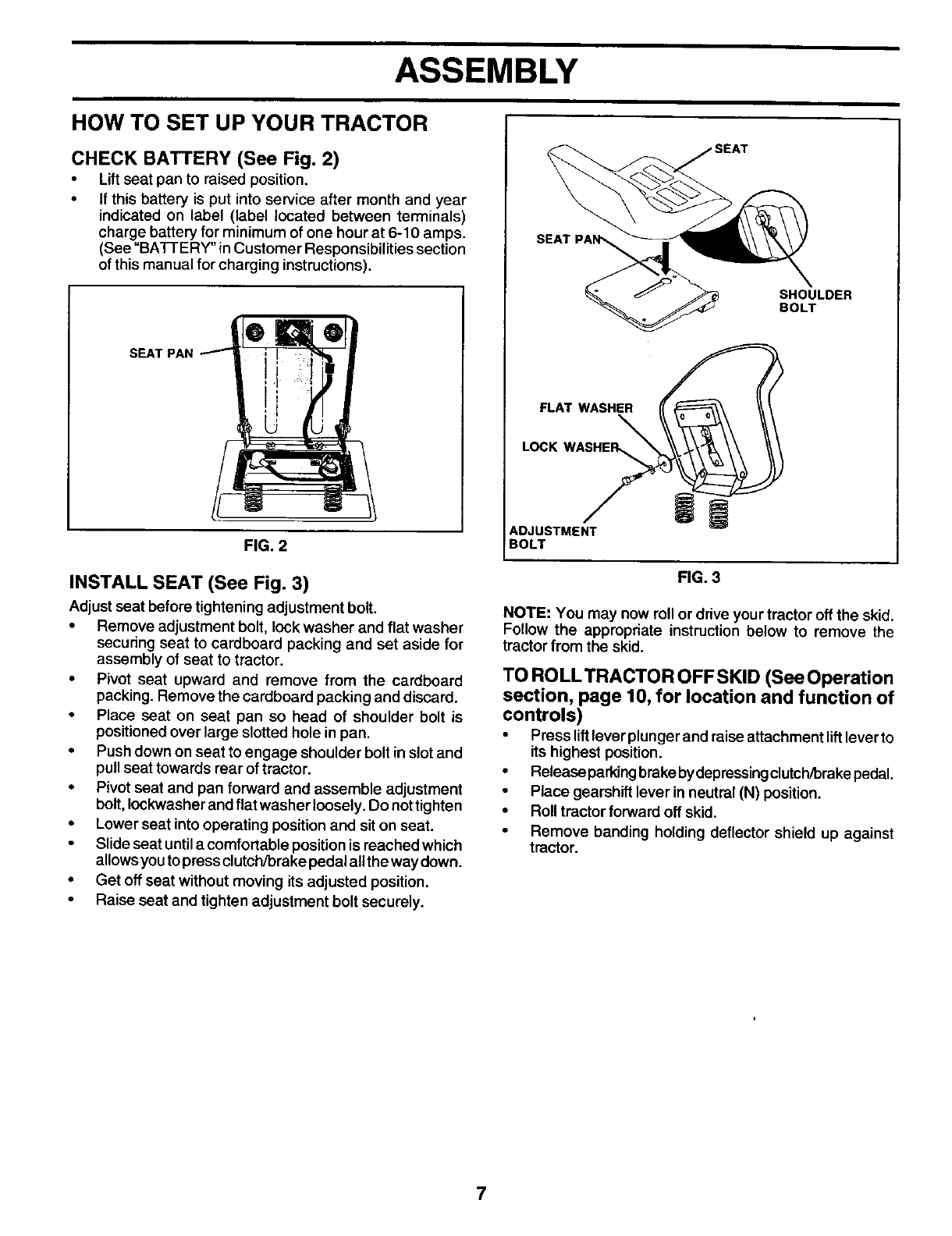

ASSEMBLY
HOW TO SET UP YOUR TRACTOR
CHECK BATTERY (See Fig. 2)
• Lift seat pan to raised position.
• If this battery is put into service after month and year
indicated on label (label located between terminals)
charge battery for minimum of one hour at 6-10 amps.
(See "BATTERY" inCustomer Responsibilities section
of this manual for charging instructions).
SEAT PAN
FIG. 2
INSTALL SEAT (See Fig. 3)
Adjust seat before tightening adjustment bolt.
• Remove adjustment bolt, lock washer and flat washer
securing seat to cardboard packing and set aside for
assembly of seat to tractor.
• Pivot seat upward and remove from the cardboard
packing. Remove the cardboard packing and discard.
• Place seat on seat pan so head of shoulder bolt is
positioned over large slotted hole in pan,
• Push downon seat to engage shoulder boltin slotend
pull seat towards rear of tractor.
• Pivot seat and pan forward and assemble adjustment
bolt, Iockwasher and flatwasher loosely. Do not tighten
• Lower seat intooperating position and sit on seat.
Slide seat untile comfortable positionis reached which
allowsyoutopressclutch/brake pedalall the way down.
• Get off seat without moving itsadjusted position.
• Raise seat and tighten adjustment boltsecurely.
SEAT
SHOULDER
BOLT
FLAT WASHER
LOCK WASHER_
ADJUSTMENT
BOLT
FIG. 3
NOTE: You may now roll or drive your tractor off the skid.
Follow the appropriate instruction below to remove the
tractorfrom the skid.
TO ROLL TRACTOR OFF SKID (See Operation
section, page 10, for location and function of
controls)
• Press liftlever plunger and raise attachment lift lever to
its highest position.
• Release parking brake bydepressing clutch/brake pedal.
• Place gearshift lever in neutral (N) position.
• Roll tractor forward off skid.
• Remove banding holding deflector shield up against
tractor.
7
