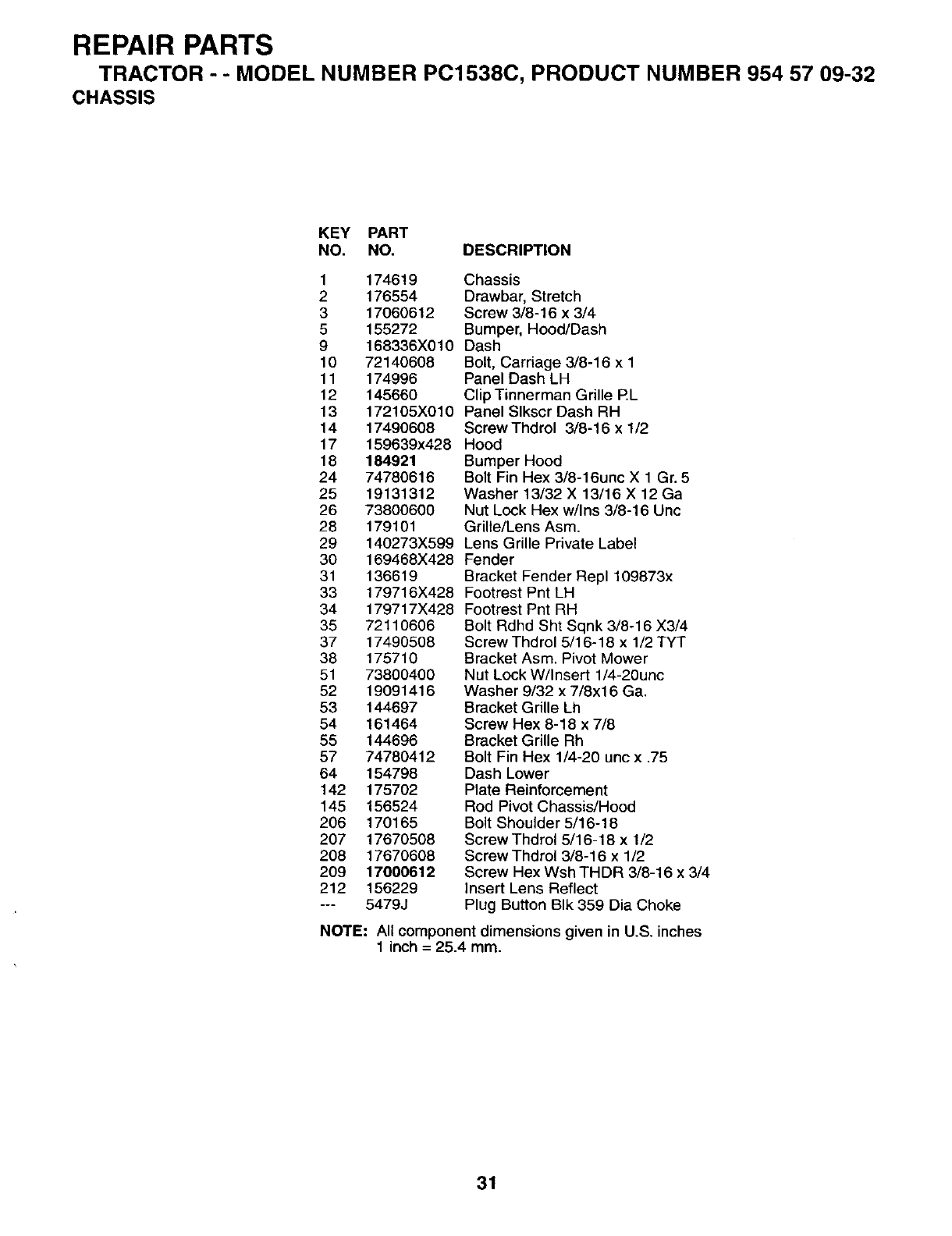

REPAIR PARTS
TRACTOR - - MODEL NUMBER PC1538C, PRODUCT NUMBER 954 57 09-32
CHASSIS
KEY PART
NO. NO. DESCRIPTION
1 174619
2 176554
3 17060612
5 155272
9 168336X010
10 72140608
11 174996
12 145660
13 172105X010
14 17490608
17 159639x428
18 184921
24 74780616
25 19131312
26 73800600
28 179101
29 140273X599
30 169468X428
31 136619
33 179716X428
34 179717X428
35 72110606
37 17490508
38 175710
51 73800400
52 19091416
53 144697
54 161464
55 144696
57 74780412
64 154798
142 175702
145 156524
206 170165
207 17670508
208 17670608
209 17000612
212 156229
--- 5479J
Chassis
Drawbar, Stretch
Screw 3/8-16 x 3/4
Bumper, Hood/Dash
Dash
Bolt, Carriage 3/8-16 x 1
Panel Dash LH
Clip Tinnerman Grille P.L
Panel Slkscr Dash RH
ScrewThdrol 3/8-16 x 1/2
Hood
Bumper Hood
Bolt Fin Hex 3/8-16unc X 1 Gr. 5
Washer 13/32 X 13/16 X 12 Ga
Nut Lock Hex w/Ins 3/8-16 Unc
Grille/Lens Asm.
Lens Grille Private Label
Fender
Bracket Fender Rep1109873x
Footrest Pnt LH
Footrest Pnt RH
Bolt Rdhd Sht Sqnk 3/8-16 X3/4
Screw Thdrol 5/16-18 x 1/2 TYT
Bracket Asm. Pivot Mower
Nut Lock W/Insert 1/4-20unc
Washer 9/32 x 7/8xl 6 Ga.
Bracket Grille Lh
Screw Hex 8-18 x 7/8
Bracket Grille Rh
Bolt Fin Hex 1/4-20 unc x .75
Dash Lower
Plate Reinforcement
Rod Pivot Chassis/Hood
Bolt Shoulder 5/16-18
Screw Thdrol 5/16-18 x 1/2
Screw Thdrol 3/8-16 x 1/2
Screw Hex Wsh THDR 3/8-16 x 3/4
Insert Lens Reflect
Plug Button BIk 359 Dia Choke
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
