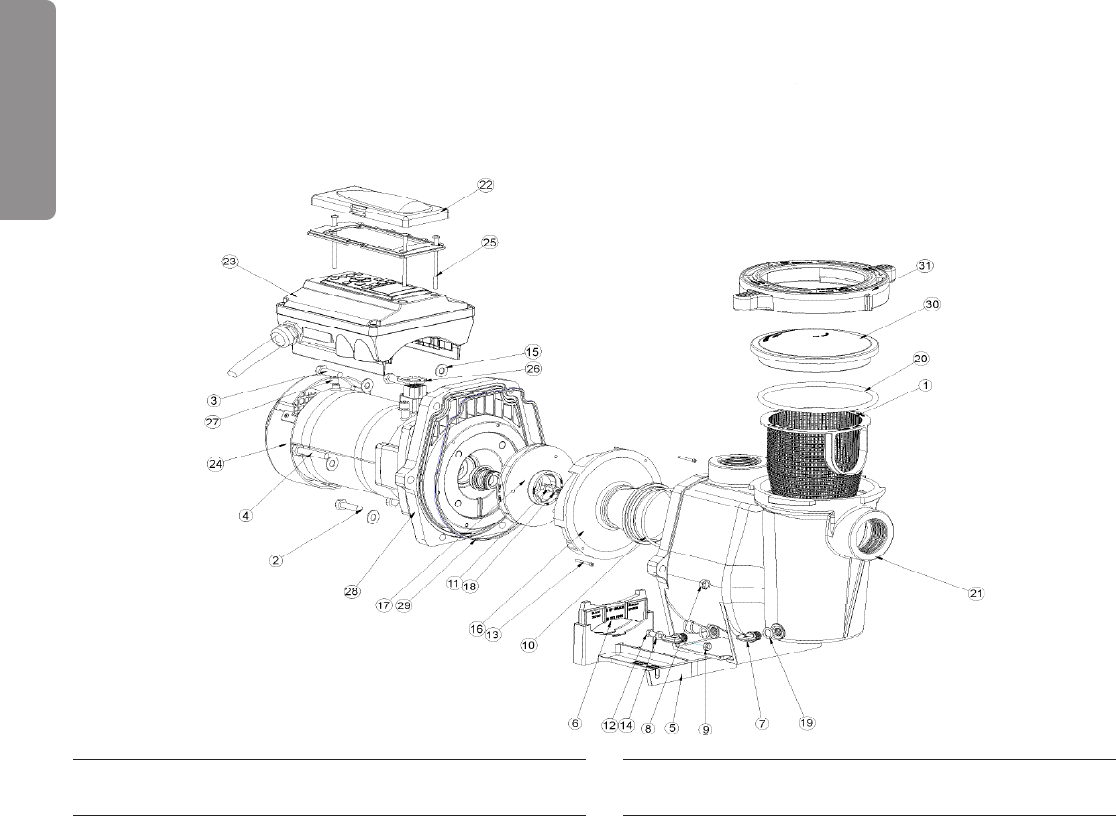

Illustrated Parts List
Replacement Parts
Item Part Description
No. No.
1 070387 BASKET AQ & WF
2 070429 BOLT HEX HD, 2-56x0.875 s/s,
(QTY 4)
3 070430 BOLT 3/8 - 16 X 1¼ HEX CAP 18-8 s/s,
(QTY 4)
4 070431 BOLT 3/8 -16 X 2 HEX CAP 18-8 s/s,
(QTY 2)
5 357159 FOOT WF - PUMP MOTOR SUPPORT
(Black)
6 357160 FOOT INSERT WF PUMP (Black)
7 357161 PLUG DRAIN WFE (Black) (QTY 2)
8 071403 NUT 3/8 - 16 BRASS NICKEL PLATED,
(QTY 2)
9 071406 NUT ¼ - 20 HEX s/s (QTY 2)
10 071444 O-RING 238, 3.484x0.139, Buna-N 70
11 071652 SCREW ¼-20 X 1 LH PHILLIPS PAN
MS 18-8 s/s
12 071657 SCREW ¼ - 20 X 1 in. HEX CAP 18-8 s/s,
(QTY 2)
13 071660 SCREW SET 4-40 X 1-1/8 WFE SCKT
CAP 18-8 s/s (QTY 2)
14 072183 WASHER FLAT ¼ X 5/8 20 GA THICK
18-8 s/s (QTY 2)
Item Part Description
No. No.
15 072184 WASHER 3/8 ID X 7/8 OD .05 THICK
18-8 s/s, (QTY 6)
16 072928 DIFFUSER ASSEMBLY WFE 12
17 073131 IMPELLER WFE 12 1000 SER
18 075713 RUBBER WASHER WFE PUMP
19 192115 O-RING 112, 0.487x0.103
Buna-N 70 (QTY 2)
20 350013 O-RING LID CH/WF 2-436
21 357195 HOUSING WFE (Black)
22* 357290 CONTROL COVER ASSEMBLY (Black)
23* 351521 INTELLIFLO CE VAR-SPD MTR DRV
3.2 KW (Black)
24* 357294 VFD MOTOR 3.2 KW PMSM (Black)
25 350107 SCREW 10-24 X 3¼ in. PH MS 18-8 s/s,
(QTY 3)
26 350108 INTELLIFLO DRIVE GASKET
27 350142 SPACER CAP (QTY 3)
28 350101 SEAL PLATE KIT, WFE (Black)
29 357102 GASKET SANTOPRENE MOLDED
30 357156 LID SEE THRU WF
31 357150 CLAMP CAM & RAMP WF (Black)
32 359500 POT WF ASSY (Black)
Note: (*) Not serviceable parts.
