Nobeltec InSight Radar (IR2)
Operations Manual
Radar Configuration Options
In the Nobeltec Options, are two pages specific to Radar or Targets.

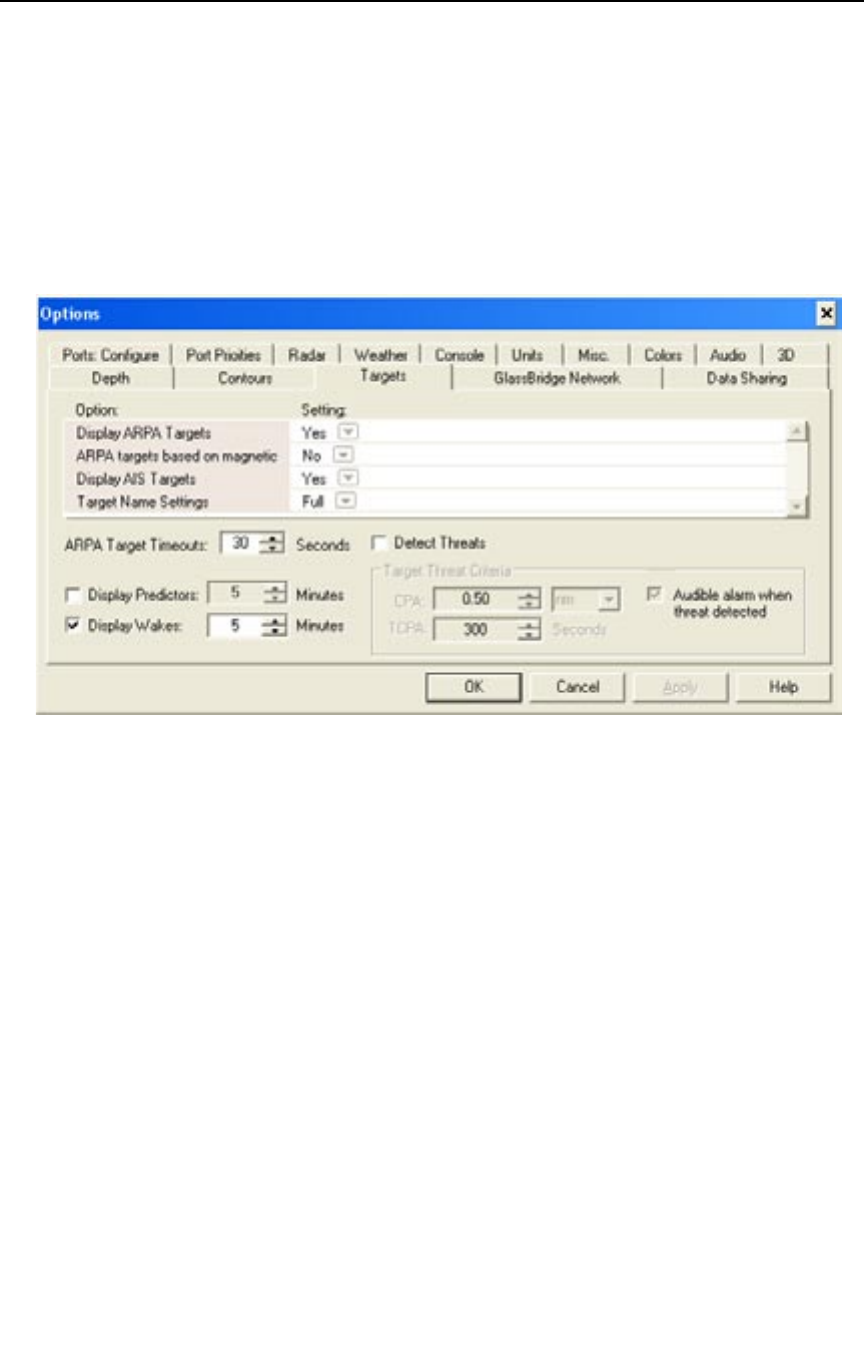

To view the Targets tab of the Options dialog
1 Launch the Nobeltec software by double clicking on its desktop icon.
2 Click on the Tools drop down menu, and select Options...
3 Now click on the Targets tab.
Display ARPA Targets: A yes choice tells the Nobeltec software to display ARPA
targets coming from an external radar in the standard NMEA format.
ARPA Targets based on magnetic: A yes choice tells the Nobeltec software to
recognize an external ARPA source as magnetic bearing data rather than true
bearing data.
Display AIS Targets: A yes choice tells the Nobeltec software to display AIS targets
coming from an external AIS receiver or transceiver.
Target Name Settings: Tells the Nobeltec software how to display the AIS target
names when overlaid on the chart. The options are None, Short or Full.
ARPA Target Timeouts: The time displayed is the time that Nobeltec will keep the
ARPA target from the external radar painted on-screen before deleting the target.
Display Predictors and Wakes: When checked these objects display for all target
types. Set the number of minutes ahead or behind respectively for each object
type to display.
Target Threat Criteria: Check the Detect Threats box to enable the threat criteria.
Once checked, set the CPA and TCPA limits. You can also turn the audible alarm
on/off.
