Installation 00-02-0268 page 2 of 2
2-1/4 in.
(57 mm)
1-15/16 in. (49 mm)
1-15/16 in.
(49 mm)
2-1/2 in. (64 mm) min.
Clearance for Adjustment / Wiring
3/4 in. (19 mm) maximum
Panel Thickness.
2-1/16 in. (52 mm)
Mounting hole diameter.
LED Indicators
Plug-in Wire
Connector
Push-on Plug and Wire Leads
18 AWG x 8 in. (1.0 mm
2
x 203 mm) long.
Mounting Clamp shown
assembled for thick panels
+
–

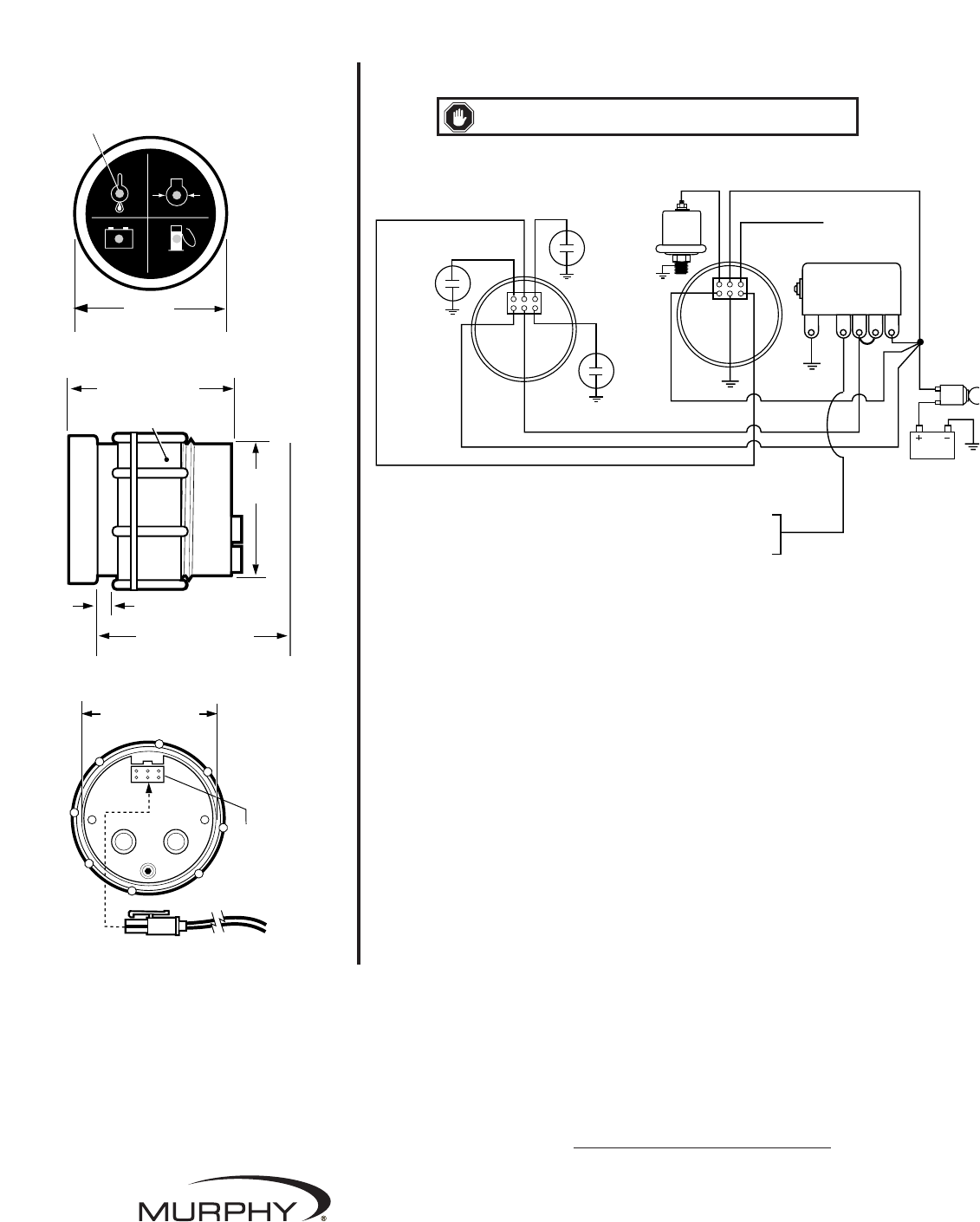

Dimensions
Front View
Side View
Back View
Battery
ON/OFF
Switch
Red
Blue
Brown
Orange
Black
518PH
Magnetic Switch
G NC SW1 SW2 B
Red
High
Temp.
Switch
Orange Oil Pressure
Brown
Battery
Input
Yellow / Dash
Light Circuit
Black
ESP-100
Sender
Yellow
Blue Fuel or
Glow Plug Input
Fuel or
Glow Plug
Switch
Battery
Switch
Close to illuminate
loss of battery voltage
Energized to run
components such as:
Ignition Coil
Fuel Valve
Rack Pull Solenoid
Note: Use of the black wire on the EN204-S and the 518PH Magnetic Switch (as shown in the diagram)
is required for engine shutdown.
For LED annunciation only, back wire is not used.
EN204-S Typical Wiring Diagram
WWAARRNNIINNGG
: Turn the power source OFF before wiring.
EN204-S
EGS21P-100
