1160 VGA cable and DC-in connector
For access, remove these FRUs in order:
v “1010 Battery pack” on page 83
v “1020 Optical drive or second battery or travel cover” on page 84
v “1050 PCI Express Mini Card for wireless LAN” on page 89
v “1060 Wireless USB adapter or Intel Turbo Memory Minicard” on page 92
v “1070 Keyboard” on page 95
v “1090 PCI Express Mini Card for wireless WAN” on page 100
v “1100 Palm rest or palm rest with fingerprint reader” on page 102
v “1120 Keyboard bezel” on page 105
v “1150 LCD assembly” on page 111

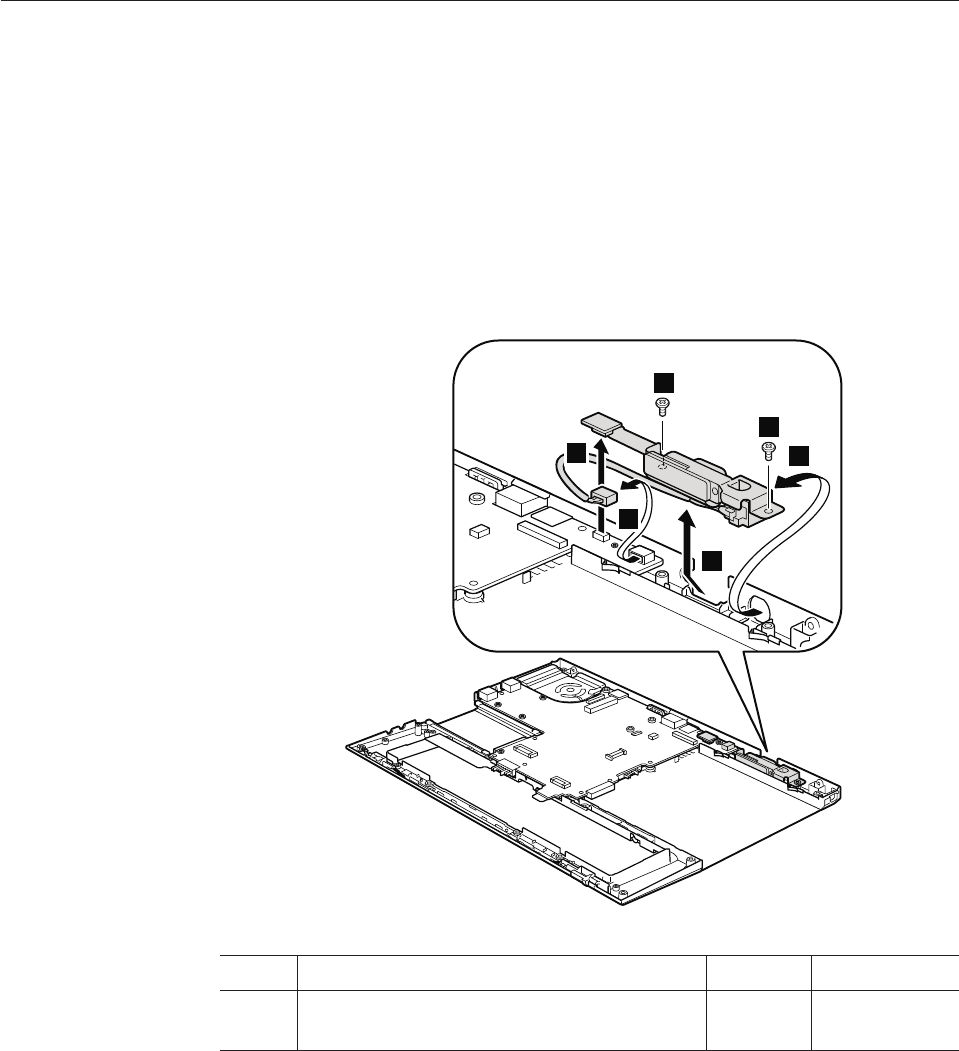

Table 25. Removal steps of VGA cable and DC-in connector
5
1
1
4
2
3
Step Screw (quantity) Color Torque
1 M2 × 3 mm, small-head, nylon-coated (2) Silver 0.167 Nm
(1.7 kgfcm)
When installing: Make sure that the connectors are attached firmly.
