Chapter 2. Cabling the USB 2.0 Super Multi-Burner Drive to
the host computer
The following diagrams may be helpful when cabling the USB 2.0 Super Multi-Burner Drive to your host
computer. Please note that these diagrams might differ slightly from your hardware.
Cabling using the AC power adapter
5
1 USB connector
2 USB 2.0 Super Multi-Burner Drive
3 AC adapter
4 Standard USB cable assembly
5 Typical ThinkPad computer

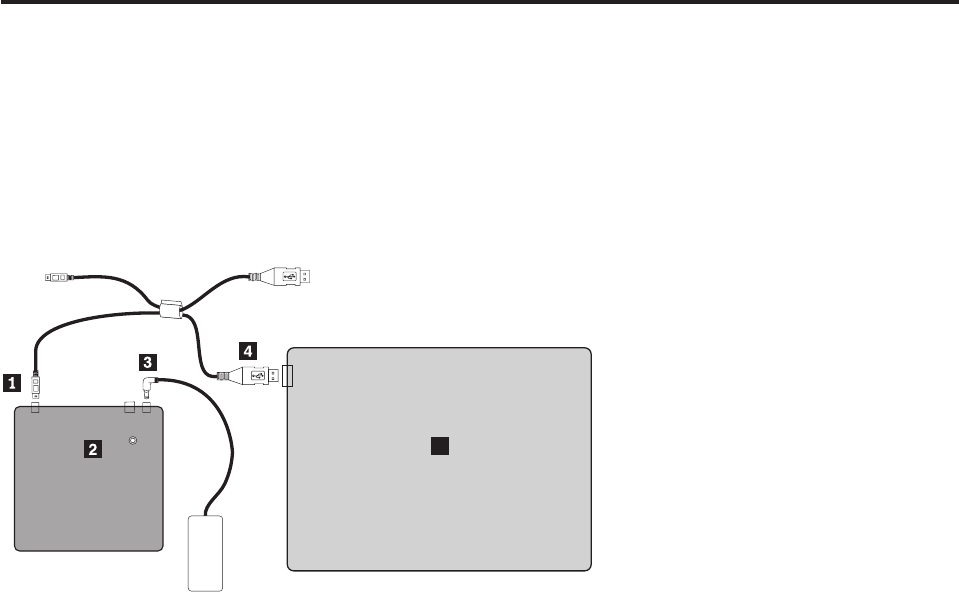

Figure 2-1. AC power adapter configuration
