5 Water supply*
WARNING
Electrical Shock Hazard!
u
Do not make the water connection while the appliance is
connected to an electrical outlet.
u
Disconnect the water supply before connecting the water
lines for the IceMaker.
u
The connection to the water supply may only be made by
a trained and licensed plumber.
WARNING
Poisoning Hazard!
u
The water quality must comply with the drinking water
regulations for the geographical area where the
appliance is located.
u
The IceMaker is designed exclusively to make ice cubes
in quantities needed by a household and must only be
operated with water appropriate for this purpose.
Water pressure:
bar psi MPa
1.5 to 6 21.76 to 87.02 0,15 to 0,6
- Water must be supplied to the appliance by means of a
cold-water pipe that can withstand the operating
pressure and conforms to hygiene regulations.
- A shut-off valve must be provided between the hose line
and the domestic water supply to turn off the water
supply, if necessary.
- All devices and fixtures used to supply water must
comply with the regulations in force in the respective
country.
- Do not damage or bend the water supply pipe during
installation.
- The solenoid valve is located on the back of the
appliance at the bottom. It has a European Metric R¾
male connection. Do not use Garden Hose Threaded
fittings on the solenoid valve - they will leak.
u
Open the shut-off valve of the water supply
pipe and check the entire water system to
ensure there are no leaks.
Before initial operation:
u
Have a competent fitter bleed all air from the
water supply pipe. IceMaker will not function if
there is air in the water supply line.
NOTICE
Malfunction of the water intake!
If the water intake is shut off during operation but the
IceMaker remains in operation, the water intake pipe may
ice up.
u
Switch off the IceMaker if the water supply is interrupted
(e.g. holiday).

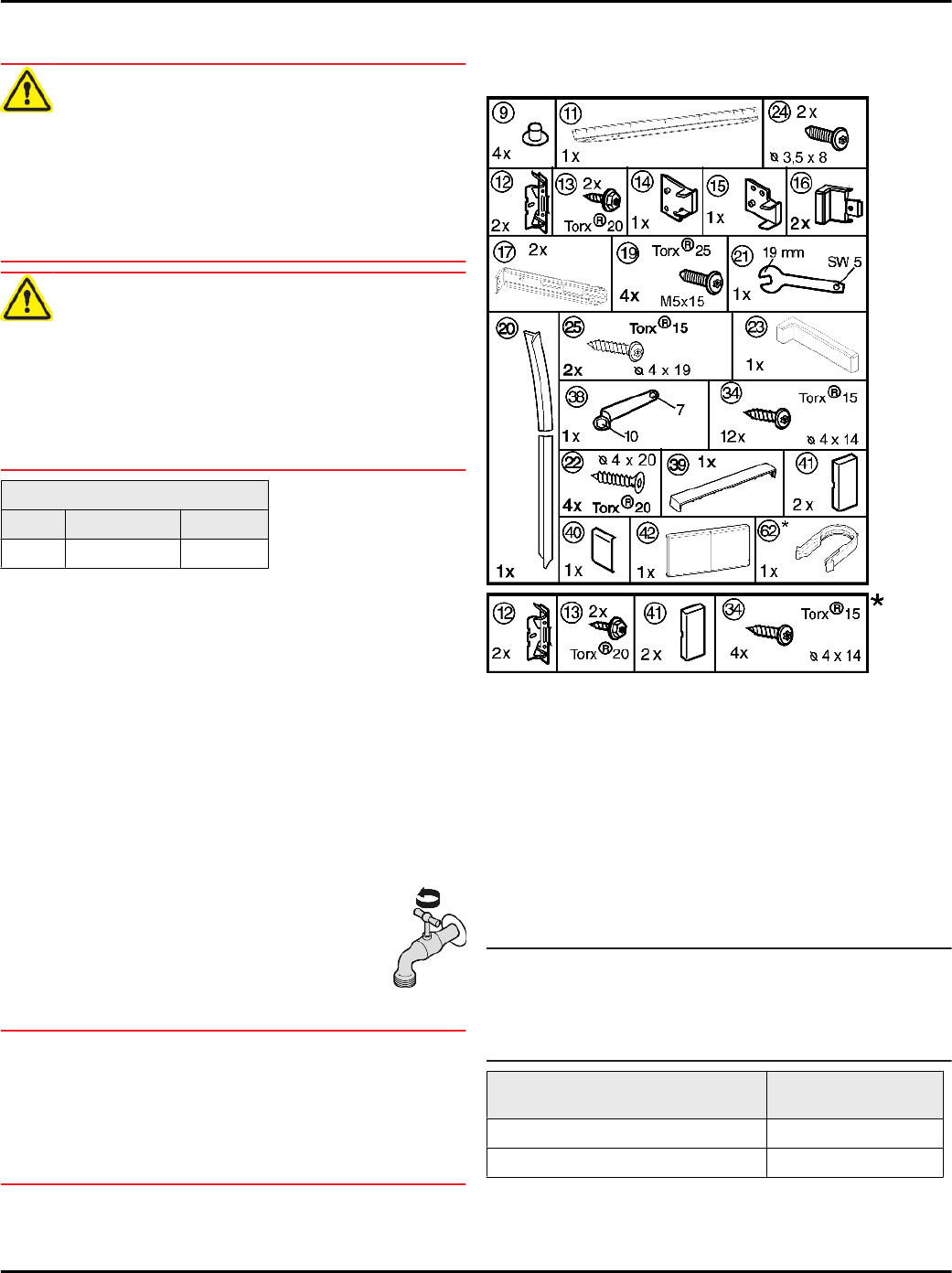

6 Installation
All fasteners are supplied with the appliance.
Fig. 10
Make sure you have the following tools on hand:
q
Cordless screwdriver Torx® 15, 20, 25
q
Hex wrench 13
q
Phillips screwdriver
The floor and side walls of the unit must be at right angles
to one another. Make the unit level using a spirit level and
set square. If necessary, level up by placing something
underneath.
The appliance can also be built into a normal kitchen
cabinet. In this case detach the fittings of the unit door and
the recess. They are no longer needed as the unit door is
fitted to the appliance door.
Note
u
Before assembling the unit door, make sure that the
permitted weight for the unit doors is not exceeded.
u
Otherwise damage to the hinges and malfunctions
arising from this cannot be ruled out.
Model Maximum weight of
unit door
IKB 3650 39.68 lbs (18 kg)
IGN 2566 44.09 lbs (20 kg)
Water supply
9
