RTR0542 and RTR0550 Rotary Tillers 311-464M
Land Pride
Section 1: Assembly and Set-Up
Table of Contents
Tractor Hook-Up
Refer to Figure 1-4:
!
DANGER
Tractor hook-up to equipment is dangerous and can result in
serious injury or death. Do not allow anyone to stand between
the tiller and tractor during hook-up operations. Do not
operate the hydraulic 3-point lift controls while someone is
directly behind the tractor or near the tiller.

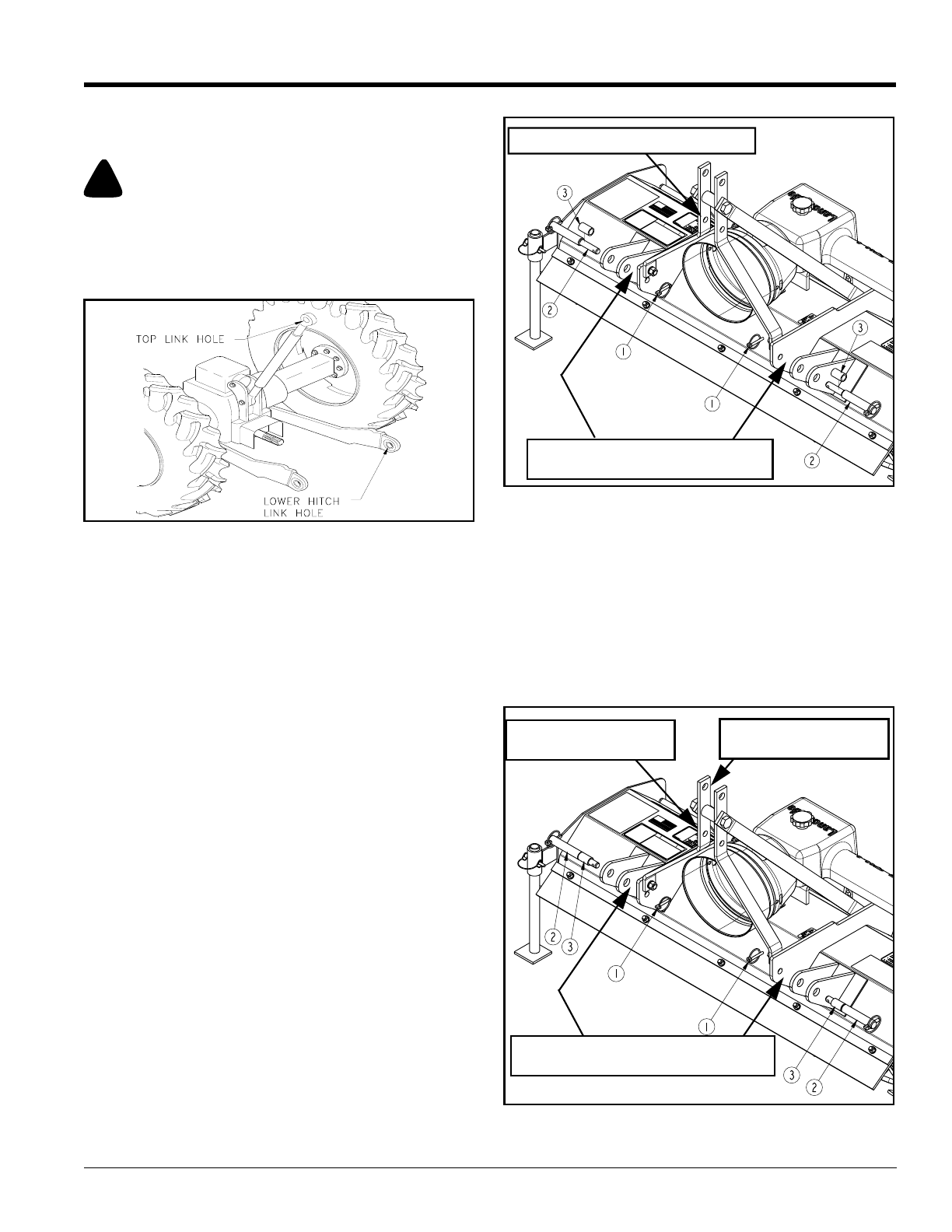

Tractor 3-Point Hitch
Figure 1-4
Refer to Figure 1-4:
For proper hitch configuration determine the hitch
category for the tractor being used.
1. Category 0 tractors have 5/8” diameter hitch link
holes in the center and lower hitch arms.
2. Category I-Limited tractors have a 7/8” diameter
lower hitch link holes and either 5/8” or 3/4” diameter
top center link hole. The lower arms are spaced
closer together than a Category I hitch.
3. Category I tractors have a 7/8” diameter lower hitch
link holes and 3/4” diameter top center link hole.
The lower 3-point arms must be stabilized to prevent
side-to-side movement. Most tractors have sway blocks
or adjustable chains for this purpose.
3-Point Category 0 Hitch
Refer to Figure 1-5:
1. Remove the two inside 1/4” linch pins (#1) and hitch
pins (#2). Remove hitch pin bushings (#3) and keep
for future use with Category I-Limited and Category I
tractor hook-ups.
2. Slowly back the tractor up to tiller until the lower
3-point arms are aligned with the inside hitch
clevises on the tiller as shown.
3. Replace the lower hitch pins and replace the two 1/4”
linch pins.
4. Attach the tractor’s top center ink to the tiller’s lower
5/8” hitch holes using a 5/8" diameter hitch pin.
Properly secure hitch pin with a linch pin.(Center
hitch pin and linch pin are supplied by the customer).
13809
3-Point Category 0 Hitch
Figure 1-5
3-Point Category I-Limited Hitch
Refer to Figure 1-6:
1. Remove the two inside 1/4” linch pins (#1) and hitch
pins (#2). Do not remove the hitch pin bushings (#3)
from the hitch pins (#2).
2. Slowly back the tractor up to tiller until the lower
3-point arms are aligned with the inside hitch
clevises on the tiller as shown.
3-Point Category I-Limited Hitch
Figure 1-6
Hitch Point For 3-Point Center Arm
Inside Hitch Clevises For Hitching
to the Tractor’s Lower 3-Point
23792
Hitch Location For 5/8”
3-Point Center Hitch Pin
Hitch Location For 3/4”
3-Point Center Hitch Pin
23775
Inside Hitch Clevises For Hitching to
the Tractor’s Lower 3-Point Arms.
