Wireless Monitor
The generator is supplied with a battery-powered, wireless
monitor.
The monitor communicates wirelessly with the generator
control panel. The monitor may be placed in a suitable
location in the home. The system has a line-of-sight range of
about 200 feet, but this distance will decrease if the signal
has to pass through walls or other objects.
The wireless monitor communicates with the generator,
every 10 minutes and will display the status via LED lights on
the front of the monitor.
DEALER NAME
DEALER
PHONE
generator power
service needed
generator ready
system update
1 low battery voltage
2 low uid level
3 under/over voltage
4 engine does not start
part #: 316196 fcc id: MCQ-XBS2C IC id: 1846A-XBS2C
5 low frequency
6 engine overspeed
7 high temperature
8 transfer switch
# of flashes service needed
A
B
C
D
E
F
G

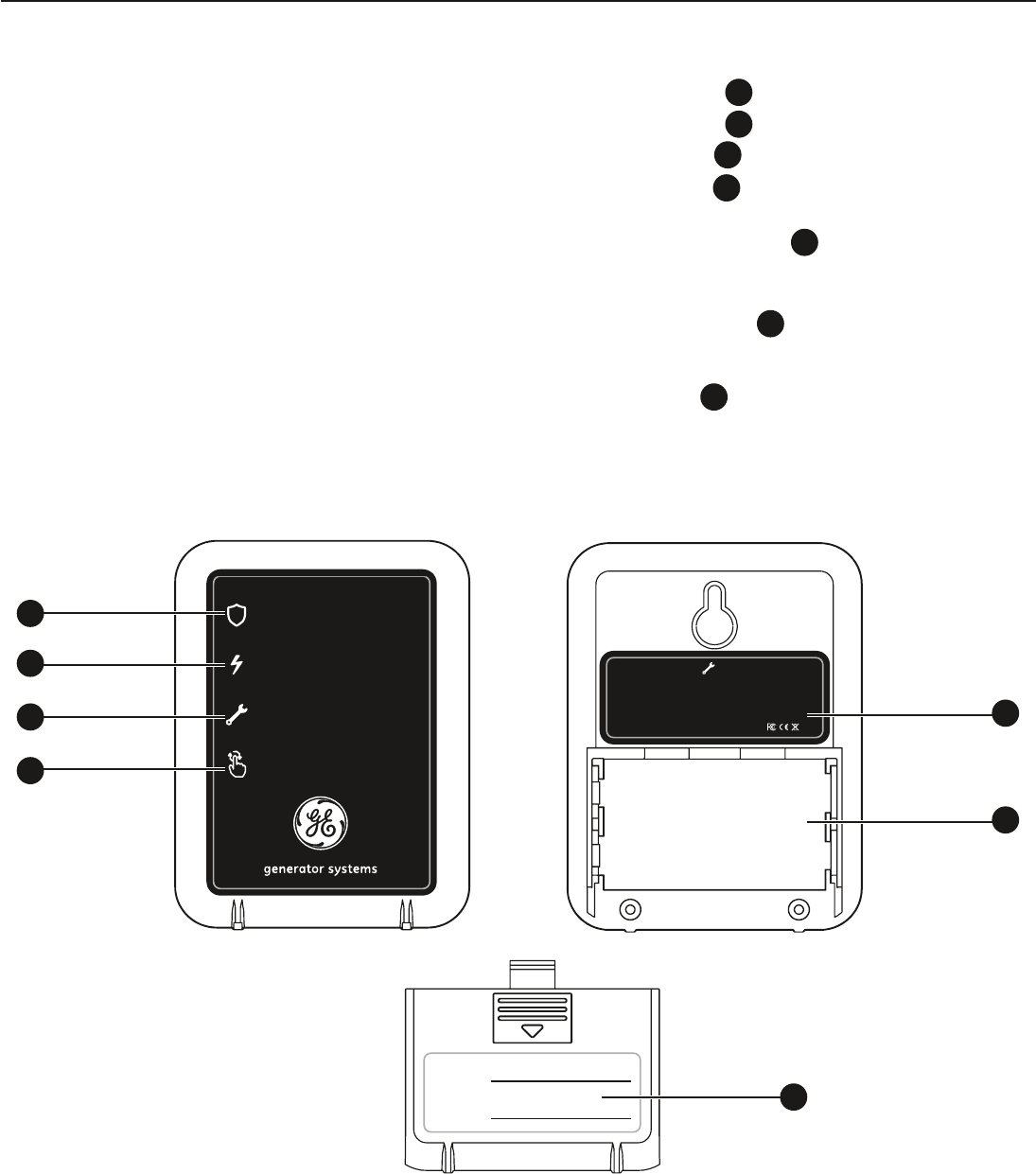

Compare the illustration below with your monitor to
familiarize yourself with these important components.
• GeneratorReady(A)-GreenLED
• GeneratorPower(B)-GreenLED
• ServiceNeeded(C)-RedLED
• SystemUpdate(D)-Pressforcurrentsystemupdate
with generator.
• Servicecodedescriptions(E)-Nameandnumber
of flashes are listed on the backside of the wireless
monitor.
• BatteryAccessCover(F)-Recordthedealer
name and phone number on the label provided.
Once opened, two AA batteries are installed in the
compartment (G)..
G
F
E
D
C
B
