PARTS

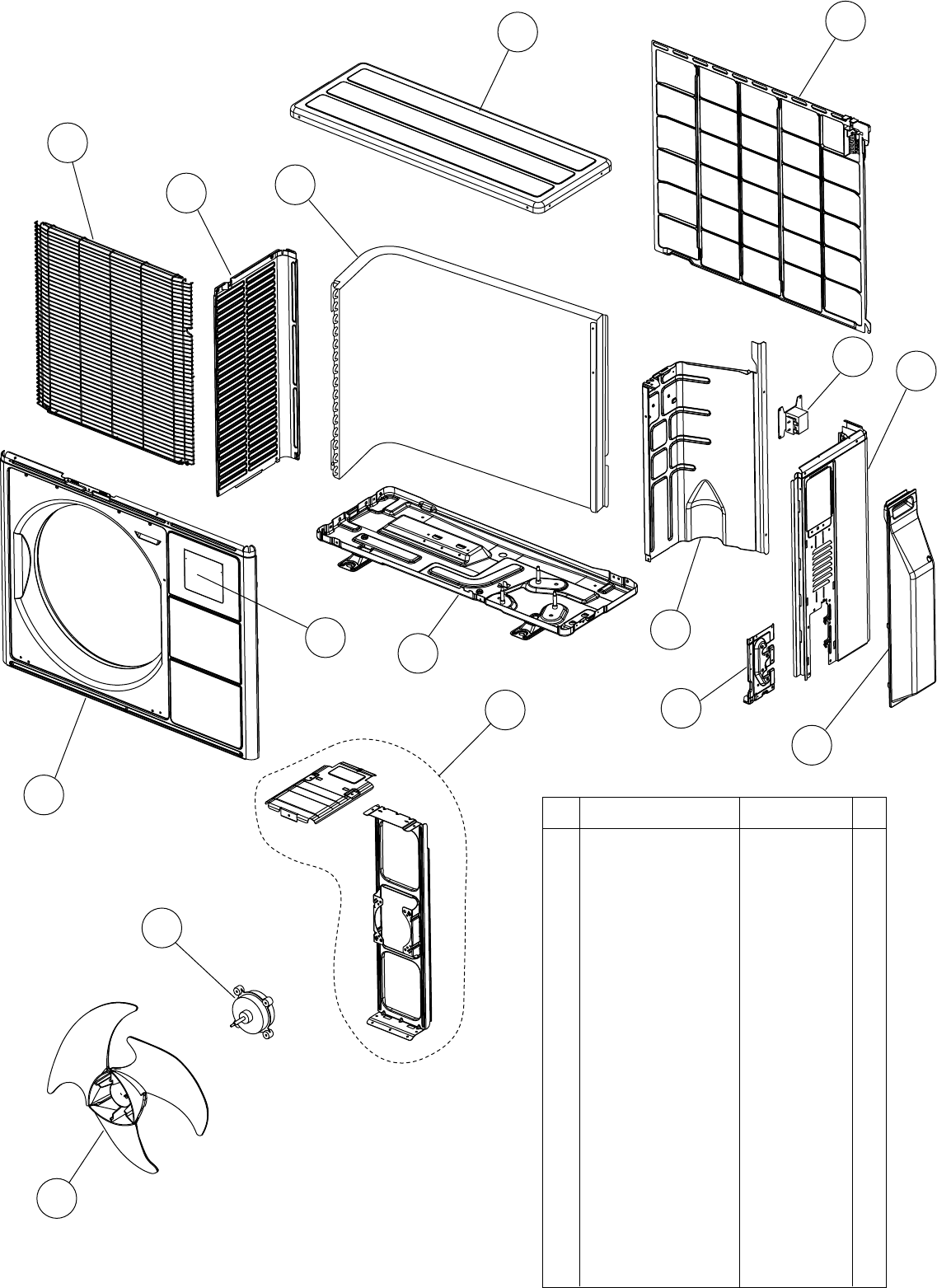

OUTDOOR UNIT
2010.11.02 16
4 Top Panel Assy 9318464030
1 Front Panel Assy 9318463026
5 Protective Net 9331640008
3
6
Cabinet Left Assy 9318461008
2 Emblem 9318479003
Switch Cover 9317692021
8 Valve Bracket 9331649001
7 Cabinet Right Assy 9316044050
10 Motor Bracket Assy 9316041011
9 Propeller Fan 9313808013
12 Reactor Assy 9900354022
13 Separator Assy 9331722001
15
Condencer Total Assy
9331660013
14 Base Assy 9316885028
11 Fan Motor 9602724017
Ref. Description Part number
