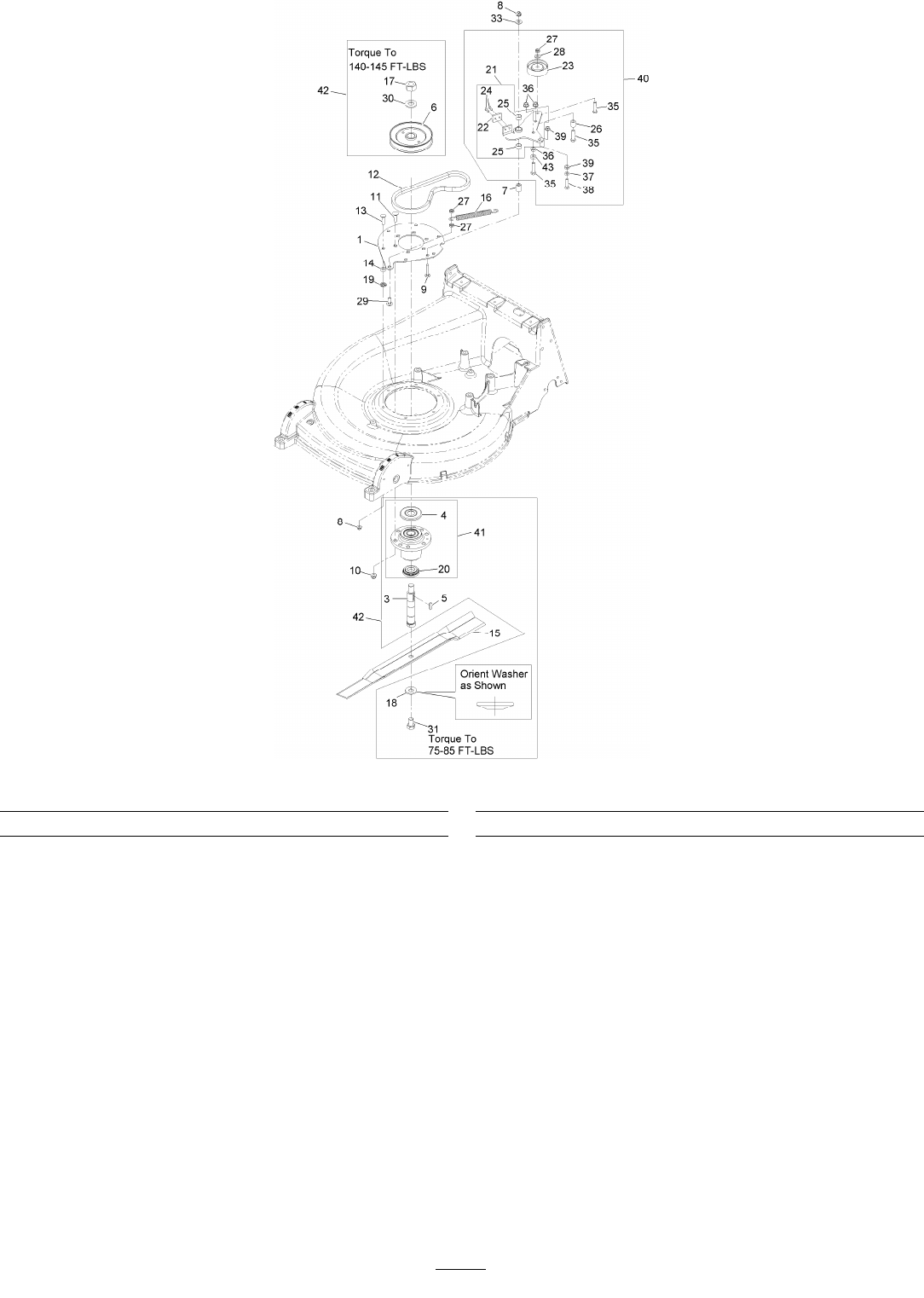

Blade and Spindle Assembly (continued)
Ref.
Part Number
Qty. Description
33 3256-3 1
Washer-5/16 Std
35 323-8 3
Screw-HH 3/8-16 X 1 1/2
36 3290-357 3
Nut-Whizlock 3/8-16
37 3218-2 1
Nut-Jam 5/16-18
38 1-403180 1
Screw-HH 5/16-18 X 1 1/4
Sp
Ref.
Part Number
Qty. Description
39 32128-20 2
Nut-Whizlock 5/16-18
40 116-0096 1
Idler Arm ASM
41 103-8280 1
Kit, Cutter Housing
42 109-3559 1
Asm, Cutter Housing
Complete
43 3218-3 1
Nut-Jam 3/8-16
DO NOT use a copper or nickel based anti-seize.
Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.
Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.
5 7 4500-938A
