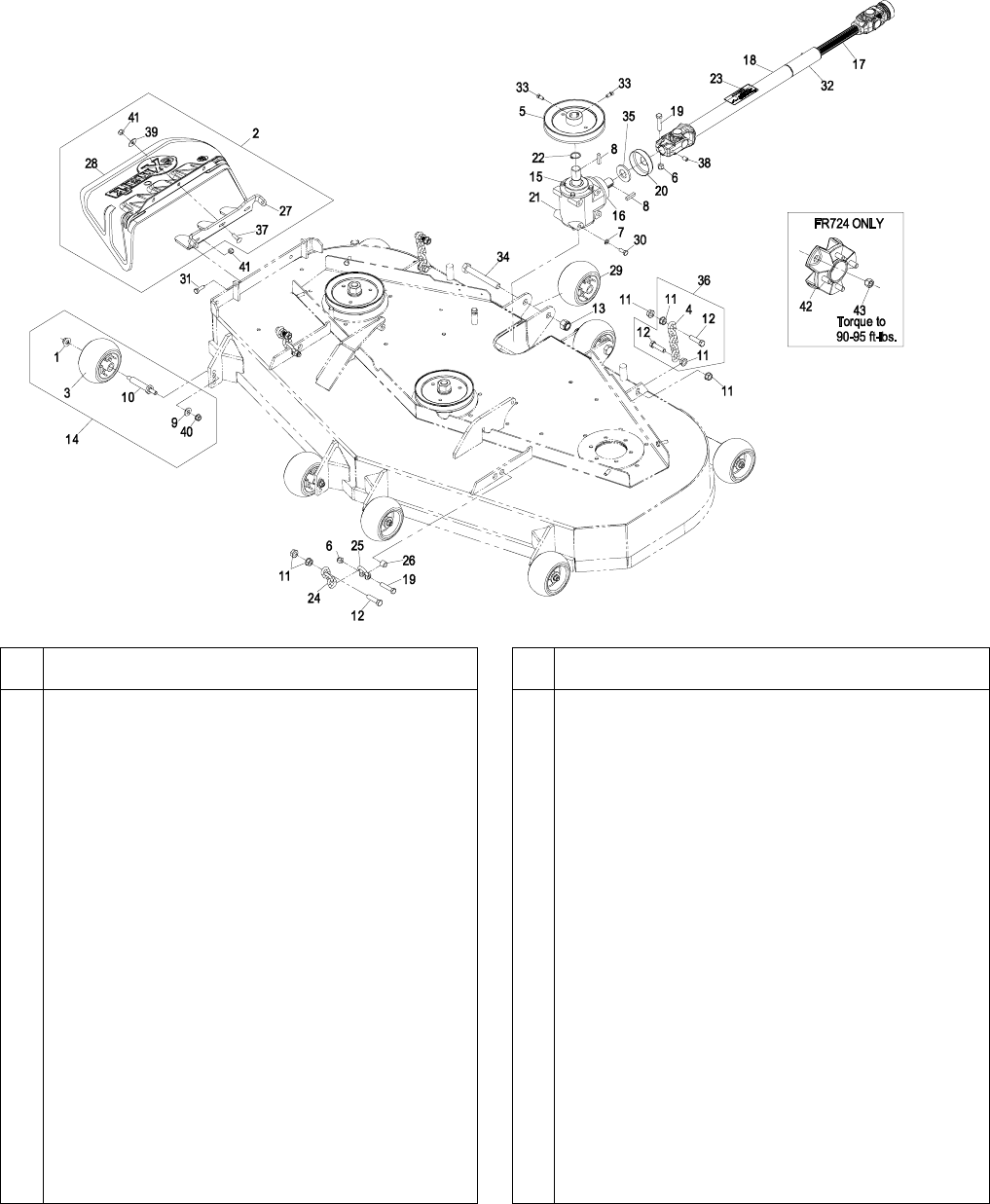

FR524, FR604, FR724 DECK GROUPS (cont.)
6
Item
Part No.
Description
Qty.
1 109-6658 Nut, Nyloc 3/8-16 Flg ............................. 6
2 109-2148 Asm, Discharge Chute........................... 1
3 1-603299 Roller, Anti Scalp ................................... 6
4 1-633447 Chain, Deck Lift ..................................... 2
5 109-2714 Sheave, Split Steel (52”)........................ 1
1-643292 Sheave, Split Steel (60” & 72”)............... 1
6 3296-39 Nut, Nyloc 3/8-16................................... 3
7 1-805005 Washer, Lock 5/16 Heavy...................... 4
8 13-2840 Key, Machine 1/4 x 1/4 x 1 1/4............... 2
9 98-5975 Washer, Spring Disc 3/8........................ 6
10 99-2842 Spacer-Wheel........................................ 6
11 32128-37 Nut, Whizlock 7/16-14............................ 12
12 103-1898 Screw, HH 7/16-20 x 1-5/8 Sp................ 6
13 3296-53 Nut, Nyloc 5/8-11................................... 2
14 103-4051 Kit, Anti-scalp......................................... 6
15 100-4576 Seal, 1-1/2 X 1 X 1/4.............................. 1
16 100-4575 Seal, 2 X 1 X 1/4.................................... 1
17 109-4449 Driveshaft, Fr Splined Half..................... 1
18 109-4448 Asm, Driveshaft Tube W/Decal............. 1
19 323-9 Screw, HH 3/8-16 x 1 3/4....................... 3
20 109-4941 Guard, Seal............................................ 1
21 103-7959 Gearbox................................................. 1
Item
Part No.
Description
Qty.
22 32151-29 Ring, Retaining...................................... 1
23 103-8425 Decal, Driveline ..................................... 1
24 103-9859 Chain, Decklift Front.............................. 2
25 103-9861 Shackle, Front Chain............................. 2
26 103-9863 Bushing Shackle.................................... 2
27 109-0938-01 Bracket, Discharge Chute...................... 1
28 109-2738 Chute, Discharge .................................. 1
29 109-2965 Roller, Full Hub...................................... 2
30 322-3 Screw, HH 5/16-18 x 3/4........................ 4
31 322-5 Screw, HH 5/16-18 x 1........................... 2
32 109-2767 Asm, Driveshaft..................................... 1
33O 1-803022 Setscrew, 5/16-18 x 5/8......................... 2
34 327-12 Screw, HH 5/8-11 x 4 3/4....................... 2
35 109-4492 Washer, Special .................................... 1
36 103-9792 Asm, Chain Deck................................... 2
37 3230-22 Bolt, Carriage 5/16-18 x 1 Sp................. 3
38O 3247-4 Setscrew, HSH 3/8-16 x 5/8................... 1
39 3256-82 Washer.................................................. 3
40 3290-357 Nut, Whizlock 3/8-16 ............................. 6
41 3296-29 Nut, Nyloc 5/16-18................................. 5
42 109-6207 Asm, Wheel Spacer............................... 2
43 242-50 Nut, Lug................................................. 8
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
O Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews, items #33 and #38.
